Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMKE
-
Model Number:
-
DU110BLD1000-60A-30S
-
Torque:
-
3N.M
-
Rated Power:
-
1000w
-
Rated Voltage:
-
DC60V
-
Rated Speed:
-
3000 R/min
-
Rated torque:
-
3n.m
-
Motor diameter:
-
157mm
-
Weight:
-
15kg
-
Product Name:
-
1000w brushless dc motor
-
gear ratio:
-
1:10;1:12.3; 1:19
-
rated current:
-
21A based on 60V
-
Certification:
-
ce,RoHS,VDE
Quick Details
-
Speed(RPM):
-
3200RPM
-
Continuous Current(A):
-
21A
-
Efficiency:
-
Ie 3
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DMKE
-
Model Number:
-
DU110BLD1000-60A-30S
-
Torque:
-
3N.M
-
Rated Power:
-
1000w
-
Rated Voltage:
-
DC60V
-
Rated Speed:
-
3000 R/min
-
Rated torque:
-
3n.m
-
Motor diameter:
-
157mm
-
Weight:
-
15kg
-
Product Name:
-
1000w brushless dc motor
-
gear ratio:
-
1:10;1:12.3; 1:19
-
rated current:
-
21A based on 60V
-
Certification:
-
ce,RoHS,VDE
Click the each picture for more detail information.
For More Details Of Product Specifications,
Please Consult Customer Service To Obtain The Product Catalog.
|
Style#
|
DU110BLD1000-48A-30S
|
DU110BLD1000-60A-30S
|
DU110BLD1000-72A-30S
|
|||
|
Rated Power
|
1000W
|
1000W
|
1000W
|
|||
|
Rated voltage
|
DC48V
|
DC60V
|
DC72V
|
|||
|
Rated speed
|
3000r/min
|
3000r/min
|
3000r/min
|
|||
|
No load speed
|
3200r/min
|
3200r/min
|
3200r/min
|
|||
|
Rated torque
|
2.89N.m
|
2.89N.m
|
2.89N.m
|
|||
|
Rated current
|
26.2A
|
21A
|
17.5A
|
|||
|
UN load current
|
≤4.5A
|
≤4A
|
≤3.6A
|
|||
|
Protection rank
|
IP54
|
IP54
|
IP54
|
|||
|
|
|
|
|
|||
|
Style#
|
DU110BLD1200-48A-30S
|
DU110BLD1200-60A-30S
|
DU110BLD1200-72A-30S
|
|||
|
Rated Power
|
1200W
|
1200W
|
1200W
|
|||
|
Rated voltage
|
DC48V
|
DC60V
|
DC72V
|
|||
|
Rated speed
|
3000r/min
|
3000r/min
|
3000r/min
|
|||
|
No load speed
|
3200r/min
|
3200r/min
|
3200r/min
|
|||
|
Rated torque
|
3.69N.m
|
3.69N.m
|
3.69N.m
|
|||
|
Rated current
|
31.4A
|
25.2A
|
21A
|
|||
|
UN load current
|
≤4.8A
|
≤4.5A
|
≤4A
|
|||
|
Protection rank
|
IP54
|
IP54
|
IP54
|
|||
|
|
|
|
|
|||
Click the each picture for more detail information.

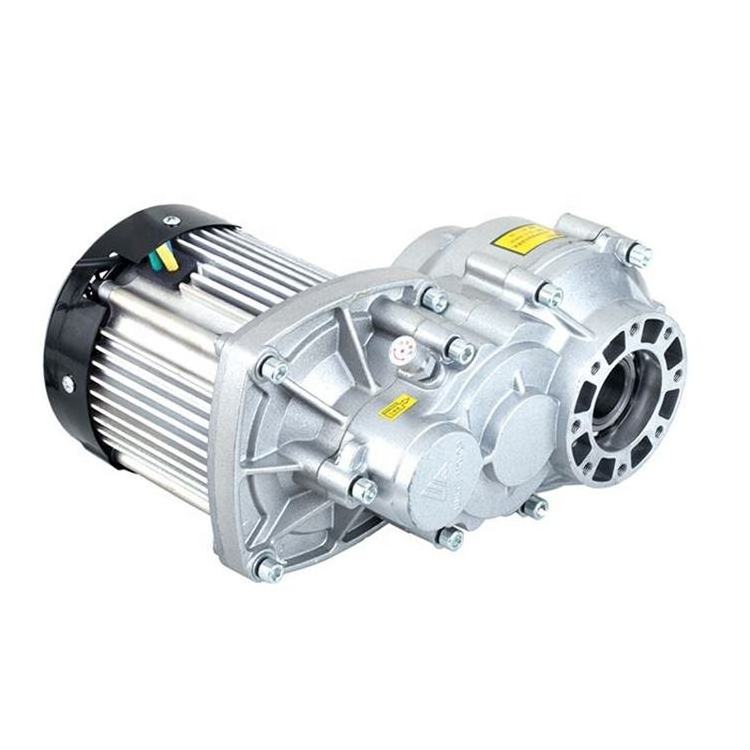

The 1000w Brushless DC Motor has been widely used for many applications, such as, auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional DC motors.
Advantages:
The motor is easy to install, which means it is a wonderful modification for you. The 1000w Brushless DC Motorhas the characteristics of low noise, low vibration, smooth operation, long life, stepless speed regulation, wide speed regulation range, and strong overload capacity. It can run at low speed and high power, which can save the reducer and directly drive large loads.
Hot Tags:
1000w brushless DC motor, China, manufacturers, suppliers, factory, wholesale, DC Motor Controller, Fork Lifter DC Motor, Mobility Scooter Motor,
Electric Tricycle Motor
Customizable accessories:motor length, shaft, voltage,power,rated speed and so on.
Feature :
A. High power range from 5W to 20KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Notice for Usage:
Feature :
A. High power range from 5W to 20KW
B. Rich stock and fast shipping time in 10 working days
C. Easy for speed & direction adjustment
D. 16mm to 220mm size range with low noisy
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Notice for Usage:
1).Please don't use motor out of the range of nameplate of gear box and motor and the specification of product
catalogue, avoiding getting an electric shock, hurting or damaging the device.
catalogue, avoiding getting an electric shock, hurting or damaging the device.
2).Please do not put your fingers and things into the opening part of gear or motor ,in order to prevent getting and electric shock,hurting,catching a fire of damaging device etc.
3).Please do not use the Injured gear head of motor, in order to prevent hurting,catching a fire etc.
3).Please do not use the Injured gear head of motor, in order to prevent hurting,catching a fire etc.
4).Please do not put off the nameplate.
5) If the products are reformed by the customers personally, it no longer belongs to the guarantee scope, and our
company doesn’t undertake any responsibility.
company doesn’t undertake any responsibility.
6) When you move it, if it shed off or tilt to one side, it is very dangerous please pay more attention.
7) Please must not put the flammable thing near the gear head and motor, in order to prevent catching a fire.
DMKE motor was founded in China, Guangzhou city，Panyu district, in 2009. After 12 years’ creativity and development, we became one of the leading high-tech companies in China in dc motor industry.
We specialize in high precision micro dc gear motors, brushless motors, brushless controllers, dc servo motors, dc servo
controllers etc. And we produce brushless dc motor and controller with wide power range from 5 watt to 20 kilowatt; also dc servo motor power range from 50 watt to 10 kilowatt. They are widely used in automatic guided vehicle , robots, lifting
equipment,cleaning machine, medical equipment, packing machinery, and many other industrial automatic equipments.
With a plant area of 4000 square meters, we have built our own supply chain with high quality control standard and passed ISO9001 certificate of quality system.
With more than 10 engineers for brushless dc motor and controllers’ research and development, we own strong independent design and development capability. Custom-made motors and controllers are widely accepted by us. At the same time, we have engineers who can speak fluent English. That makes we can supply intime after-sales support and guidance smoothly for our customers.
Our motors are exported worldwide, and over 80% motors are exported to Europe, the United States, Saudi Arabia, Australia, Korea etc. We are looking forward to establishing long-term business relationship together with you for mutual business success.
We specialize in high precision micro dc gear motors, brushless motors, brushless controllers, dc servo motors, dc servo
controllers etc. And we produce brushless dc motor and controller with wide power range from 5 watt to 20 kilowatt; also dc servo motor power range from 50 watt to 10 kilowatt. They are widely used in automatic guided vehicle , robots, lifting
equipment,cleaning machine, medical equipment, packing machinery, and many other industrial automatic equipments.
With a plant area of 4000 square meters, we have built our own supply chain with high quality control standard and passed ISO9001 certificate of quality system.
With more than 10 engineers for brushless dc motor and controllers’ research and development, we own strong independent design and development capability. Custom-made motors and controllers are widely accepted by us. At the same time, we have engineers who can speak fluent English. That makes we can supply intime after-sales support and guidance smoothly for our customers.
Our motors are exported worldwide, and over 80% motors are exported to Europe, the United States, Saudi Arabia, Australia, Korea etc. We are looking forward to establishing long-term business relationship together with you for mutual business success.
Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brushless dc motor, dc gear motor, micro dc motor, planetary gear motor, dc servo
motor, brush dc motors, with diameter range from 16 to 220mm,and power range from 5W to 20KW.
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference than bulk price based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s difficult for us to provide a price list. If
you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
Q7:What's your warranty terms?
A6: One year
A1: For now, we mainly provide permanent magnet brushless dc motor, dc gear motor, micro dc motor, planetary gear motor, dc servo
motor, brush dc motors, with diameter range from 16 to 220mm,and power range from 5W to 20KW.
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference than bulk price based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s difficult for us to provide a price list. If
you can share your detailed specification and order qty, we’ll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation to see if we can arrange or not.
Q6:How about your delivery time?
A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
Q7:What's your warranty terms?
A6: One year
