Quick Details
-
Brand Name:
-
FEEO
-
Model Number:
-
FDIS-32-4S
-
Max. Current:
-
32A
-
Product name:
-

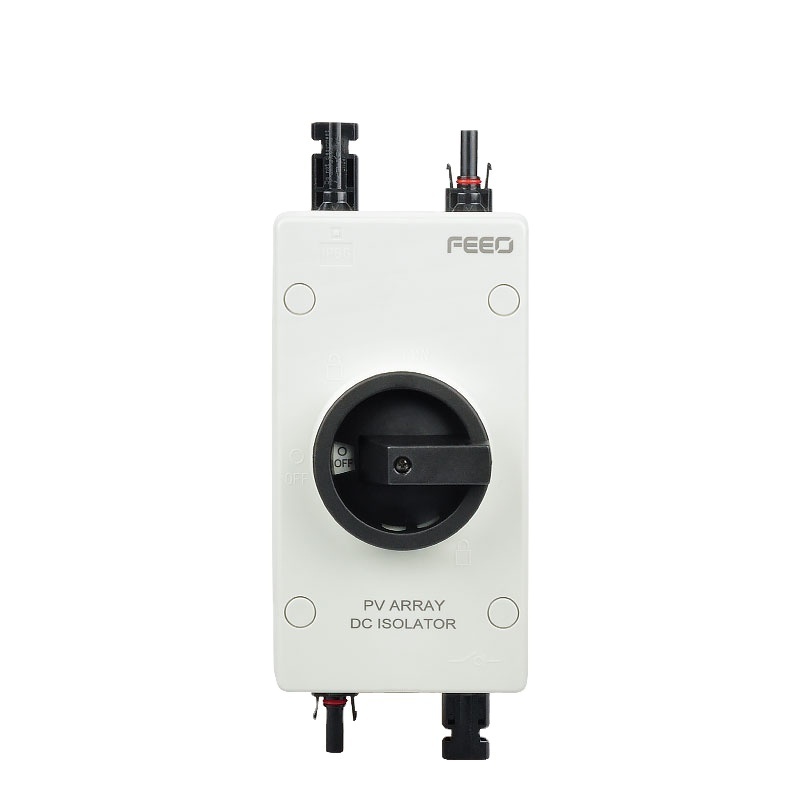

Solar DC Waterproof lsolator Switch
-
Certificate:
-
CE/TUV
-
Application:
-
PV Solar System
-
Warranty:
-
2 Year
-
MOQ:
-
1
-
Model:
-
FDIS-32-4S
-
Mounting:
-
Panel mounting
-
Rated current In:
-
32A
-
Rated operational voltage(Ue):
-
1000VDC
-
OEM ODM:
-
Yes
-
Certification:
-
CE/TUV
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1000VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FEEO
-
Model Number:
-
FDIS-32-4S
-
Max. Current:
-
32A
-
Product name:
-
Solar DC Waterproof lsolator Switch
-
Certificate:
-
CE/TUV
-
Application:
-
PV Solar System
-
Warranty:
-
2 Year
-
MOQ:
-
1
-
Model:
-
FDIS-32-4S
-
Mounting:
-
Panel mounting
-
Rated current In:
-
32A
-
Rated operational voltage(Ue):
-
1000VDC
-
OEM ODM:
-
Yes
-
Certification:
-
CE/TUV
dc isolator switch Features:
1.Compact and suitable were space is limited
2.DIN rail mounting for easy installation
3.Load-breaking up to 8 times rated current making it ideal for motor isolation
4.Double-break with silver rivets-superior performance, reliability and long lasting
5.Highly visible red/yellow handle
6.Large padlockable red/yellow or grey/black handles
7.Comprehensive range, 16 to 32A models
8.
High IP 66 rating
9.Easy to install and operate
10.
10 years warranty
dc isolator switch Parameters:
FAQ| Technical parameters | Model | FDIS-32 | ||
| Rated insulation voltage | Ui | V | 1500 | |
| Rated heating current | Ithe | A | 32 | |
| Rated impulse withstand voltage | Uimp | V | 8000 | |
| Rated short-time withstand current(1s) | Icw | 2,4 | A | 1000 |
| 2H | A | 1700 | ||
| Rated short-circuit making capacity | Icm | 2,4 | A | 1000 |
| 2H | A | 1700 | ||
| Rated short-circuit current | Icc | A | 5000 | |
| Mechanical life | 10000 | |||
| DC poles | 2 or 4 | |||
| Operating temperature | ℃ | -25 to +70 | ||
| Storage temperature | ℃ | -40 to +70 | ||
| Class of pollution | 2 | |||
| IP level | IP66 |
