2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
- Product Details
- {{item.text}}
Quick Details
-
Wire diameter of coiled material:
-
Dia 0.15-0.8mm
-
Max outer diameter of coiled sprin:
-
Max20mm
-
Speed:
-
Max 560 pcs/min
-
Wire Feed instruction value:
-
±0.01-±9999.99
-
Cam instruction value:
-
± 0.1° - ± 359.9°
-
Wire feed servo power:
-
0.75KW
-
Cam servo motor:
-
0.75KW
-
Power supply:
-
220V ± 10%V50HZ
-
Size:
-
1000X950X1600mm
-
Weight:
-
350KG
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YINFENG
-
Weight (KG):
-
350
-
Wire diameter of coiled material:
-
Dia 0.15-0.8mm
-
Max outer diameter of coiled sprin:
-
Max20mm
-
Speed:
-
Max 560 pcs/min
-
Wire Feed instruction value:
-
±0.01-±9999.99
-
Cam instruction value:
-
± 0.1° - ± 359.9°
-
Wire feed servo power:
-
0.75KW
-
Cam servo motor:
-
0.75KW
-
Power supply:
-
220V ± 10%V50HZ
-
Size:
-
1000X950X1600mm
-
Weight:
-
350KG

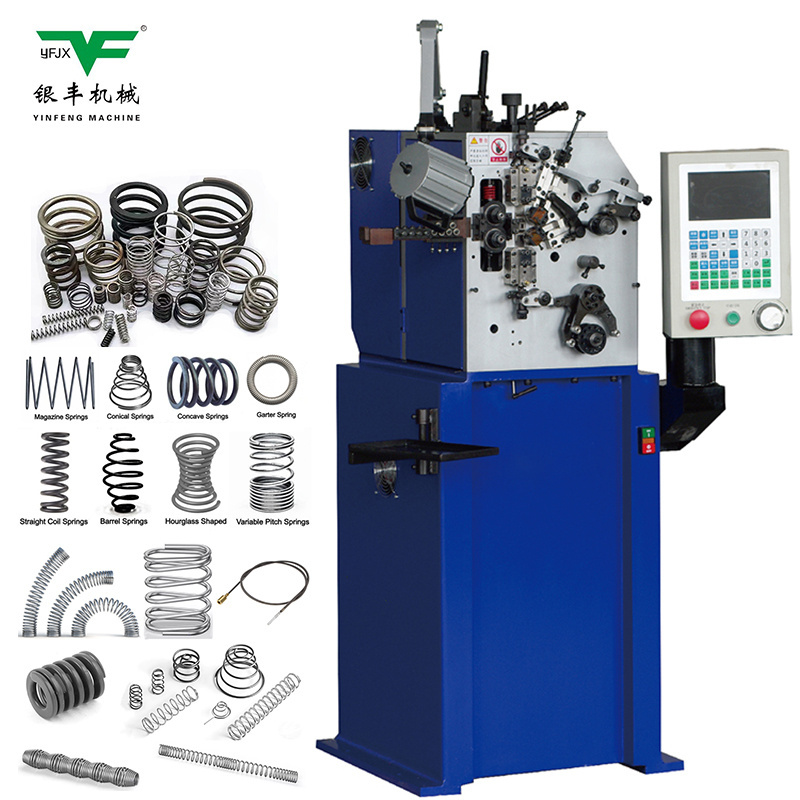

Products Description
Product advantages 1
Multiple axes CNC spring compression machine can be produced (0.15-12.0mm wire diameter). This machine has the characteristics of traditional mechanical spring compression machine. It is equipped withmodern computer-controlled servo system with high speed and accuracy.
Product advantages 2
The position of each axis, wire feed information,production speed, production quantity are displayed on the screen, the program information is easy to set and change on the keyboard, the pitch adjustment is convenient and flexible，the outer diameter axis is independent, and can be easily set by the program Adjust the size of theouter diameter, the compression spring machine can produce any shape of compression spring without adjusting the mechanical part, completely avoid the trouble of replacing the cam piece, adjustment and convenience.
Product advantages 2
The system is equipped with a computer and can store hundreds of work programs.
Suitable for all kinds of compression springs, oil seal springs, pagoda springs，wave springs, clockwork spring, and various special-shaped springs, complex and difficult spring,etc.
Automatic material feed frame
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
Our Yinfeng Machine Can Make Any Kinds Of Spring, Also We Can Customized Extra Function According To Your Requirements.
Manufacturing Product Videos
Product Paramenters
|
Model
|
CNC-8208
|
|
Wire diameter of coiled material
|
Φ0.15-Φ0.8mm
|
|
Max outer diameter of coiled spring
|
MaxΦ2Omm
|
|
Speed
|
max 560pcs/min
|
|
Wire Feed instruction value
|
±0.01-±9999.99
|
|
Cam instruction value
|
± 0.1° - ± 359.9°
|
|
Wire feed servo power
|
0.75KW
|
|
Cam servo motor
|
0.75KW
|
|
Power supply
|
220V ± 10%V50HZ
|
|
Size
|
1000X950X1600mm
|
|
Weight
|
350KG
|
Price list could be sent upon request, just kindly contact us:
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
