Quick Details
-
Application:
-
AC / Motor, Lighting
-
Certiricate:
-
CE for capacitor cbb60
-
Color:
-
Grey, Blue, White, Black for capacitor cbb60
-
Material of Case:
-
PP, or ABS case for capacitor cbb60 sh
-
Warranty:
-
one year for capacitor cbb60
-
Terminal:
-
wires, cable , clips for capacitor cbb60
-
OEM:
-
yes for capacitor for cbb60 sh
-
Packaging:
-
export standard cartons
-
Film:
-
Polypropylene film
-
Capacitance:
-
1MFD~100MFD
-
Rated Voltage:
-
250v-450v capacitor cbb60 sh
-
Operating Temperature:
-
-40℃~70℃
-
Applications:
-
Fan,lighting,motor,air conditioner
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JKCN
-
Model Number:
-
cbb60 capacitor 250vac 50/60hz 25/70/21
-
Application:
-
AC / Motor, Lighting
-
Certiricate:
-
CE for capacitor cbb60
-
Color:
-
Grey, Blue, White, Black for capacitor cbb60
-
Material of Case:
-
PP, or ABS case for capacitor cbb60 sh
-
Warranty:
-
one year for capacitor cbb60
-
Terminal:
-
wires, cable , clips for capacitor cbb60
-
OEM:
-
yes for capacitor for cbb60 sh
-
Packaging:
-
export standard cartons
-
Film:
-
Polypropylene film
-
Capacitance:
-
1MFD~100MFD
-
Rated Voltage:
-
250v-450v capacitor cbb60 sh
-
Operating Temperature:
-
-40℃~70℃
-
Applications:
-
Fan,lighting,motor,air conditioner
Applications of capacitor cbb60 sh 250vac 50/60hz 25/70/21
Jk series capacitor cbb60 has features of small size, light weight, small tangent in waste angle, and good self-healing. Applicable to start and operation with 50/60 Hz A.C. Single motor, specially suit for water pump ,micro pump, baric pump, micro motor and so on.
Service Conditions of capacitor cbb60 sh 250vac 50/60hz 25/70/21
1 . Altitude: the altitude of area of installation and operation not exceeing 2000m.
2. Residual voltage at energization: Not exceed 10% rated voltage.
3. Pollution: No electric dust, no corrosive as or inflammable and explosive medium in the area of installation and operation for capacitor cbb60 sh.
4. Operation temperature: -40 °C ~+70 °C
5. Operation way: Continous operation.
Manufacturing of capacitor cbb60 sh 250vac 50/60hz 25/70/21
Self-healing mentalized polypropylene film capacitor cbb60.
Non inductive winding
Wound capacitor elements fully immersed into resin.
Self-extinguishing plastic case.
Extinguishing plastic case.
discharge resistance-plastic cover
Executions:
Flbipplar cable
discharge resistance-plastic cover
at bottom-metal fixing stud M8×12
faston terminals 0.8 × 6.35 simple or double
Standard distance P=13.2 ± 0.5
uniplar cable-bipplar cable

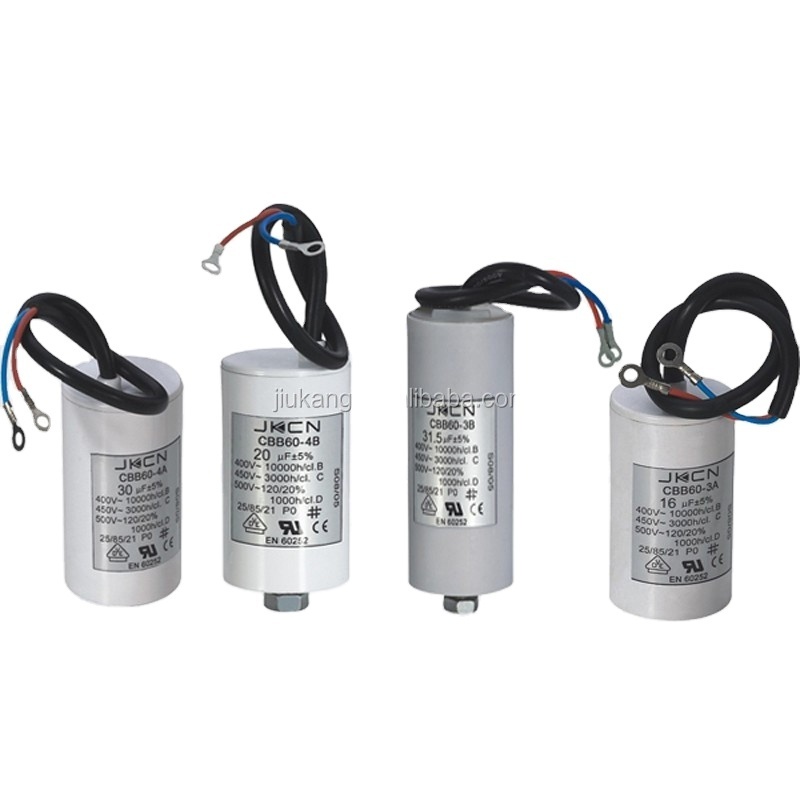

Capacitor cbb60 sh
|
Main Techinal Indexes of capacitor cbb60 |
|
| 1. Range voltage: | 200VAC,250VAC,400VAC,450VAC,500VAC. |
| 2. Rated frequency: | 50Hz(60Hz). |
| 3. Rated capacitance: | 1.0μF-60μF |
| 4. Withstand AC voltage between terminals: | 1.75 times than rated voltage for 2 seconds. |
| 5. Withstand AC voltage between terminal and case: | 2000VAC for 2 seconds. |
| 6. Capacitance tolerance: | Cn ±5% |
| 7. Tangent of loss angle(tg δ): | tg δ≤0.10%(50Hz) |
| 8. Maximum permissible voltage: | 110% rated voltage |
| 9. Maximun permissible current: | 130% rated voltage |
| 10. Class of safety protection: | P0(Type CBB60, CBB61), P1(Type CBB650). |
| 11. Design service life | 3,000 hours (class C) |
| 12. Standard: | in conformity with GB3667-1997, IEc60252-1993 |
|
Dimensions(mm) of capacitor cbb60 sh 250vac 50/60hz 25/70/21
|
| Model | Dimension(DxH)(mm) of capacitor cbb60 sh | ||
| With Clips | With Wires | With Cables | |
| CBB60 2uf | 32x55 | 32x55 | 30x55 |
| CBB60 3uf | 32x55 | 32x55 | 30x55 |
| CBB60 4uf | 32x55 | 32x55 | 30x55 |
| CBB60 5uf | 32x55 | 32x55 | 30x55 |
| CBB60 6uf | 32x55 | 36x58 | 30x70 |
| CBB60 7uf | 36x58 | 36x58 | 3 0x70 |
| CBB60 8uf | 36x58 | 36x58 | 30x70 |
| CBB60 9uf | 36x58 | 36x58 | 35x68 |
| CBB60 10uf | 36x58 | 36x58 | 35x68 |
| CBB60 11uf | 36x70 | 36x70 | 35x68 |
| CBB60 14uf | 36x70 | 36x70 | 35x68 |
| CBB60 15uf | 40x70 | 40x70 | 40x70 |
| CBB60 16uf | 40x70 | 40x70 | 40x70 |
| CBB60 22uf | 40x70 | 40x70 |
40x70
|
| CBB60 25uf | 45x75 | 45x75 | 45x70 |
| CBB60 30uf | 45x75 | 45x75 | 45x70 |
| CBB60 35uf | 45x92 | 45x92 | 50x90 |
| CBB60 40uf | 45x92 | 45x92 | 50x90 |
| CBB60 42uf | 45x92 | 45x92 | 50x90 |
| CBB60 43uf | 45x92 | 45x92 | 50x90 |
| CBB60 44uf | 55x117 | 55x117 | 50x90 |
| CBB60 45uf | 50x90 | 55x117 | 50x90 |
| CBB60 48uf | 50x90 | 55x117 | 55x132 |
| CBB60 50uf |
50
x90
|
55x117 | 55x132 |
| CBB60 60uf | 55x117 | 55x117 | 55x132 |
| CBB60 70uf | 55x117 | 55x117 | 55x132 |
| CBB60 80uf | 60x117 | 60x117 | 55x132 |
| CBB60 85uf | 60x117 | 60x117 | 55x132 |
| CBB60 90uf | 60x117 | 60x117 | 55x132 |
| CBB60 100uf | 60x117 | 60x117 | 55x132 |
Remark: Special requirement can be fulfilled at the request of Customers. The appearance of product's photos are for reference only, product's capacity and technical parameters shall be determined according to the final signed specification.
cbb60 motor running capacitor details
Every product is well packed to ensure the safety !
