- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Aslan Machinery
-
Voltage:
-
380v 220v 110v
-
Power:
-
100
-
Dimension(L*W*H):
-
96*76*35cm
-
Weight:
-
25 KG
-
Name:
-
Meat Skewer Machine
-
Function:
-
insert the sticks inside the food material
-
Material:
-
stainless steel and PE food grade mold
-
Advantage:
-
High Performance Big Capacity
-
Suitable for:
-
bamboo and meatal round sticks
-
Stcisk diameter size:
-
1.8-0.6mm
-
Power source:
-
electric and air compressor
-
Mold shape:
-
customized
-
Related machine:
-
Tumbler
Quick Details
-
Application:
-
insert sticks into food material, meat beans product seafood candy and so on
-
Production Capacity:
-
1800-2400pcs per hour
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aslan Machinery
-
Voltage:
-
380v 220v 110v
-
Power:
-
100
-
Dimension(L*W*H):
-
96*76*35cm
-
Weight:
-
25 KG
-
Name:
-
Meat Skewer Machine
-
Function:
-
insert the sticks inside the food material
-
Material:
-
stainless steel and PE food grade mold
-
Advantage:
-
High Performance Big Capacity
-
Suitable for:
-
bamboo and meatal round sticks
-
Stcisk diameter size:
-
1.8-0.6mm
-
Power source:
-
electric and air compressor
-
Mold shape:
-
customized
-
Related machine:
-
Tumbler
Meat Skewers Bamboo Sticks String Machine Chicken Mutton Beef BBQ Skewering Machine
Machine application:
This machine is suitable for different product to do skewer, such as meat cube , meat sheet, meat tendon, pork skin, kebab, toufu, potato chips, squid and so on products; also can be used for any products who are soft need to be skewer. The skewer finished by machine is size evenly, clean, good taste.
Machine structure and working principle:
User put the raw material inside the mold tray, put the mold tray onto the the work table, the work table under the motor drive will move forward to the function space, when the mold reach to the exact position, the mold sensor and the stick loading sensor will control the pneumatic sticker loader device loading stick and push the stick to the function space and insert into the mold to skewer the product. The mold sensor will detect the mold one by one.
Machine features:
1. Table type machine, small floor space, easy move and operation.
2. Auto inductive sticks insert system, work stable.
3. PE mold , which can be clean easily.
4. Meat skewer length can be adjusted according to customer needs.
5. This machine can be used for bamboo sticks also can be used for metal sticks.
6. Photoelectric induction system, one-time single-sticks, reduce errors.
Machine molds is customized according to customer product material, shape and size.
Every customer molds is special designed. One machine can be equipped with different molds or multi molds for easy operation.
Machine technical parameter:
|
Model |
ASL-CCJ2000 |
|
Capacity |
1800-2400pcs per hour |
|
Material |
Stainless steel + PE mold |
|
Food material length |
0.1-30cm (can customized) |
|
Power supply |
Electric + air compressor |
|
Round stick diameter size |
1.8-6.0mm (can customized) |
|
Round stick length |
Toothpick length to 60cm (can customized) |
|
Power |
100w |
|
Voltage |
220v |
|
Dimension |
96*76*35cm |
|
Weight |
25kg |

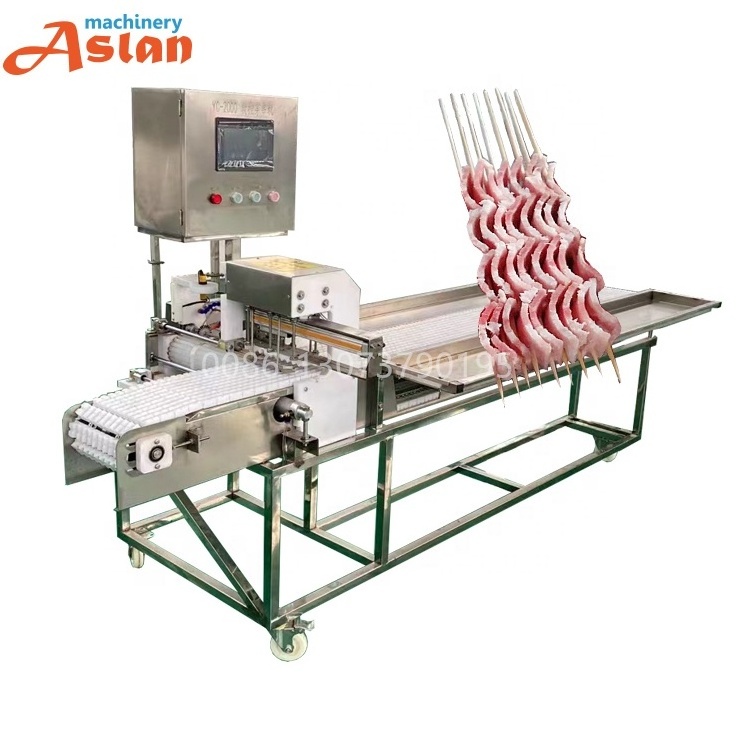

Machine photo:
Machine application:
A conner of workship
Machine freight by truck or container. Container machine be fixed by steel wire, to make sure all of them not be damage by transport jolt.
About package we will use 1cm plywood standard export wooden box.
About documents
We can provided Telex release bill of loading or Original Bill of loading, Certificate of original. Other documents can be provided according to your requirement.
About after sell service of our aslan machinery
Usually machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by machine itself design defect, we are responsible for it. We can provided free charge breaking part. If machine breaking caused by humane factor, user need take responsibility for it, we will provided technical support .
About goods shipping of our aslan machinery
We have long time working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need, we can help you do custom clearance .
About payment term of our aslan machinery
Currently, in order to protect you and us rights. Both us in safe, hope we can do business in safe way .
L/C(>20000USD),Western Union,T/T(bank transfer),Escrow
which one is you want, we can discuss it .
About online Service of our aslan machinery
24 hours online to solve any problem. Your email will be reply within 12 hours. Your satisfy is our pursuit. Sincerely hope our cooperation .
