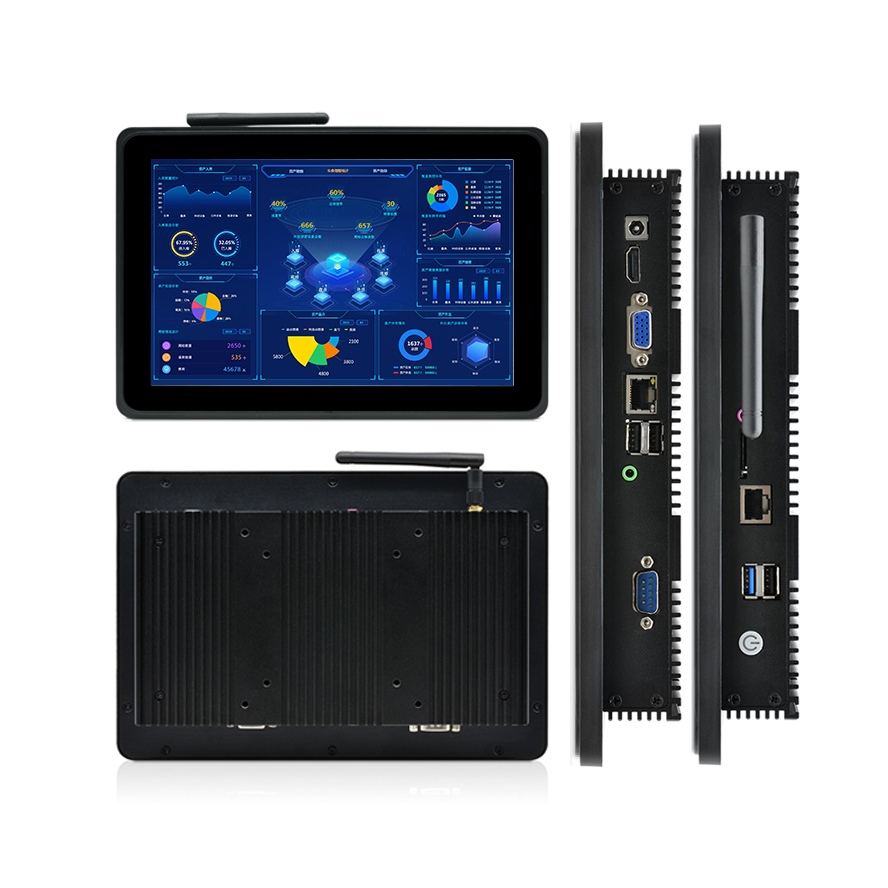

The Touchscreen PC features a sleek modern appearance. Flat edge to edge glass with a patented silicone rubberized seal ensures the front panel is water proof and dust proof meeting the requirements of IP65 standards. The back has a sturdy aluminum case manufactured out of a continuous casting mold with stable VESA-75/100 fixation bolts offering numerous industrial and consumer connectors like serial ports or USB 3.0.
- Product Details
- {{item.text}}
Quick Details
-
CPU:
-
RK3128/Custom
-
RAM:
-
1*SO-DIMM DDR4
-
Interface Type:
-
VGA, Audio, DC, USB2.0, USB3.0, RJ45, PO
-
Display Type:
-
Touch Screen
-
Video Memory:
-
8GB
-
OS:
-
Android/Linux/win7/win8/win10
-
Color:
-
Customer Customization
-
Certification:
-
CE FCC ROHS
-
Warranty:
-
3 Years
-
Size:
-
10.4"/12.1"/13.3"/15"/15.6"/17"/18.5"/19"/21.5"
Quick Details
-
Type:
-
Industrial Monitor
-
Brand Name:
-
Custom
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
RK3128/Custom
-
RAM:
-
1*SO-DIMM DDR4
-
Interface Type:
-
VGA, Audio, DC, USB2.0, USB3.0, RJ45, PO
-
Display Type:
-
Touch Screen
-
Video Memory:
-
8GB
-
OS:
-
Android/Linux/win7/win8/win10
-
Color:
-
Customer Customization
-
Certification:
-
CE FCC ROHS
-
Warranty:
-
3 Years
-
Size:
-
10.4"/12.1"/13.3"/15"/15.6"/17"/18.5"/19"/21.5"
Products Description
Wintouch´s innovative IP67 Front Capacitive Touchscreen PC with its silent fanless operation, reliability, and fine craftsmanship, stands out from the competition.
Wintouch’s industrial touch PCs ensure the performance and stability required for long term operation in today’s demanding manufacturing, commercial, and retail environments.
|
Product name
|
10.1’’ PCAP Touch PC
|
PC System
|
|
|
|
Modle numer
|
WTPA101-3128
|
CPU
|
RK3128 Quard core
|
|
|
Anti-glare LCD Panel
|
|
Memory
|
1GB
|
|
|
IP rated front panel
|
IP65
|
Storage
|
8GB
|
|
|
Screen diagonal (Inch/cm):
|
10.1/25.65
|
USB Port
|
2*USB 2.0
|
|
|
Display active screen size:
|
21.70x13.60mm
|
RS232
|
1*RS232 or 485
|
|
|
Aspect ratio:
|
16:10
|
I/O
|
1*RJ45
|
|
|
Physical resolution:
|
1280x800
|
GPIO
|
Support 4 chanel GPIO
|
|
|
Colours displayed:
|
16M
|
Wifi/Bluetooth
|
Support
|
|
|
Brightness (cd/m2):
|
350
|
System
|
Android 5.1
|
|
|
Contrast:
|
800:1
|
|
|
|
|
Typical reaction time Tr/ Tf :
|
10/15 (ms)
|
Touch Panel
|
|
|
|
Visual Angle horizontal/vertical :
|
170/170(°)
|
Touch Technology
|
Projected Capacitive 10-point Multitouch
|
|
|
Backlight / Backlight Lifetime (hours):
|
LED / 30,000
|
Touch Connector
|
USB
|
|
|
|
|
Touch Panel Drivers
|
Windows; Linux; Mac; Android
|
|
|
Operation / Mechanical
|
|
Touch Life (Contacts)
|
Unlimited
|
|
|
Operating Temperature
|
'-20 ~ +70 (°C)
|
Surface Hardness
|
7H
|
|
|
Humidity Range (RH)
|
10%-90%
|
|
|
|
|
Gross weight (kg)
|
2
|
Power
|
|
|
|
Housing material
|
Aluminium
|
Power Indicator
|
Green LED
|
|
|
Housing (cm) LxWxH
|
28.4*17.5*3.55
|
Power Supply
|
100-240V ACDC active switch- ing; 12V DC-Out
|
|
|
Mounting
|
VESA 75
|
Working Power (V)
|
12
|
|
|
|
|
Power Consumption (W)
|
11
|
|
