AUTO functional Multi-Pass sprial vibratory finishing deburring machine / mass finishing machine

AUTO functional Multi-Pass sprial vibratory finishing deburring machine / mass finishing machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $60000

≥2 Sets

US $58000

≥3 Sets

US $56000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 3300

Machine Type:: Surface Mass Finishing Machine

Product name:: Multi Pass Vibratory Deburring Machine

Application:: For workparts which needs to be processed individually

Process Time:: 0-12 Minutes Adjustable

Certification:: CE ISO9001

Main Motor:: 7.5KW

Work Channel Size:: 180X300mm Width X Depth

Machine Size LXWXH:: 4540X2500X1860mm

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: XingXing

Power (kW):: 7.5

Weight (KG):: 3300

Machine Type:: Surface Mass Finishing Machine

Product name:: Multi Pass Vibratory Deburring Machine

Application:: For workparts which needs to be processed individually

Process Time:: 0-12 Minutes Adjustable

Certification:: CE ISO9001

Main Motor:: 7.5KW

Work Channel Size:: 180X300mm Width X Depth

Machine Size LXWXH:: 4540X2500X1860mm

Product Description

It is designed for the work pieces cannot be collided in the surface finishing process. It is suitable for the work pieces finishing without colliding and short process cycle time required. vibratory finishing deburring machine

SPECIFICATIONS FOR AUTO FUNCTIONAL MULTI-PASS VIBRATORY FINISHING SYSTEM XXZP-LX180
Vibratory Finishing Machine	Machine Type	XXZP-LX180	SET
		Motor	7.5	KW
		Motor Speed	1440	RPM
Main parameters	Machine Size	4540X2500X1860	MM
		Process Time(adjustable)	4-12	Minutes
		Process Vessel Width & Depth	180X300(Average depth)	MM
Other information	Lining	PU lining	PU
		Lining thickness	20-25	MM
		Voltage	220V-440V	3 Phase

Detailed Images

Product Application & Features

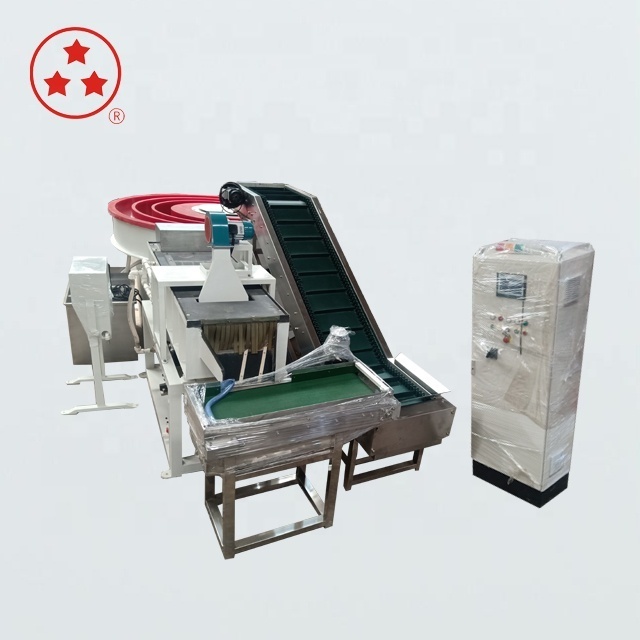

1. Equipment Name：Spiral Vibratory Finishing System
2. Equipment Product Code: XXZP-LX180
3. Application: Designed for the work pieces cannot be collided in the surface finishing process. It is suitable for the work pieces finishing without colliding and short process cycle time required.
4. Process Time：4-12 minutes of finishing time for one piece, adjustable.
5. Vibratory Machine Work Channel Size：180*300mm（W*H）.
6. Maximum Work Part Size Limit：dia 140mm size type.
7. Total Consuming Power: 10.39KW
8. Parts Loading Efficiency：2-10 seconds/ work part (it depends on the work pieces size and requirement)
9. Finishing Principle： Through vibratory finishing
10. Finishing Requirement: Deburring the work pieces with acceptable surface finishing requirement, avoiding the work parts surface colliding by each other during the finishing process.
11. Media Recycle：Media are separated & sent back to conveyor for reloading into the machine.
12. Conveyor：Loading work parts and medias with adjustable speed.
13. Polishing Steps：Loading work parts and medias into conveyor →Vibratory Finishing→Separating & washing (this machine is without separation design, but we can do)& air blowing → medias return(recycle)
tory polishing machine

Vibratory Finishing Machine

Name: Vibratory Finishing Machine

Code: XXZP-LX180

Brand: Xingxing

Original: Zhejiang, China

1. CE certified vibratory finishing machine.

2. Stress relief welding required, h eavy duty structure design.

3. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.

4. Similar outlook style design as international brand.

5. With independent control panel available.

6. The machine bowl is with floor drain design.

Name : Vibratory Motor
Brand : Xingxing
Original : Zhejiang, China

1. CE certified vibratory motor.

2. China-Germany joint venture manufacturer made quality product, with consistant reliable quality.

3. With motor fan shape shafts, the intersection angle can be adjusted with the reading of point marks on the shaft. EASY FOR MOTOR VIBRATING FORCE ADJUSTMENT.

Name: Work vessel of vibratory polishing machine

Brand: Xingxing
Original: Zhejiang, China
1. The main machine consists of upper bowl and basement.

2. The upper bowl is with work channel which is with PU( polyurethane ) lining.

3. The work channel with width as 180mm and depth as 300mm(average depth, the center channel with more deeper than 300mm, the outer channel is not as deep as 300mm).

4. Total 3 big circular channel for this bowl.

5. The PU lining thickness with 20-25mm, to ensure the PU lining wear life time.

Name: Media return conveyor design

Brand: Xingxing

Original: Zhejiang, China
1. Designed with S.S. steel frame contructed conveyor connection design, anti-rust design.

2. The conveyor is PU made, long life cycle. Special kind of conveyor belt shape avoiding the medias and work pieces jammed with the flame of conveyor machine.

3. The conveyor is started and stopped with the multi-pass vibratory machine.

5. With good quality motor installed.

Name: Vibratory Separation screening, washing, and air blowing

Brand: Xingxing

Original: Zhejiang, China
1. With media and work pieces separation(without separation design is also available).

2. With work pieces water flushing clean to next step.

3. With external S.S. water solution tank to recycle the water usage repeatedly.

4. With air blowing the work pieces before it go es to next step.

5. External S.S. water sinking tank, controlled by PLC. Auto-dosing system design, the water after vibratory finishing can be collected in the waste water tank, and to be discharged automatically to the place which customer want.

Name: PLC control panel
Brand: Xingxing

Original: Zhejiang, China
1. Simens S7-200 PLC
2. Simens touchscreen
3. Simens inverter
4. There are auto or manual operation choices, the operator can set the parameters shows from the touch screen to choose for auto operation or manual operation.
5. With power cut memory and the alarm message can be presented from the touch screen.

6. Urgent stop for whole system.

7. The touch screen is locked with password, to prevent unauthorized persons to change the setting of parameters.

8. Power distributor inside, easy for maintenace.

9. International standard control cabinet design.
