Quick Details
-
Dimension(L*W*H):
-
2500*1000*1300MM
-
Weight:
-
4200 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
crawler
-
Product name:
-
pneumatic drill rig for soil test
-
Model:
-
HQZ150
-
Drilling dia.:
-
100-219mm
-
Drilling depth:
-
150m
-
Drilling direction:
-
to the ground45°-90°
-
Eletric motor power:
-
7.5kw
-
Drill swing speed:
-
0-62rpm
-
Air Pressure:
-
0.8-2.1Mpa
-
Air consumption:
-
13-21m3/min
-
Certification:
-
ISO9001,CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
110v 220v
-
Dimension(L*W*H):
-
2500*1000*1300MM
-
Weight:
-
4200 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
crawler
-
Product name:
-
pneumatic drill rig for soil test
-
Model:
-
HQZ150
-
Drilling dia.:
-
100-219mm
-
Drilling depth:
-
150m
-
Drilling direction:
-
to the ground45°-90°
-
Eletric motor power:
-
7.5kw
-
Drill swing speed:
-
0-62rpm
-
Air Pressure:
-
0.8-2.1Mpa
-
Air consumption:
-
13-21m3/min
-
Certification:
-
ISO9001,CE
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks!

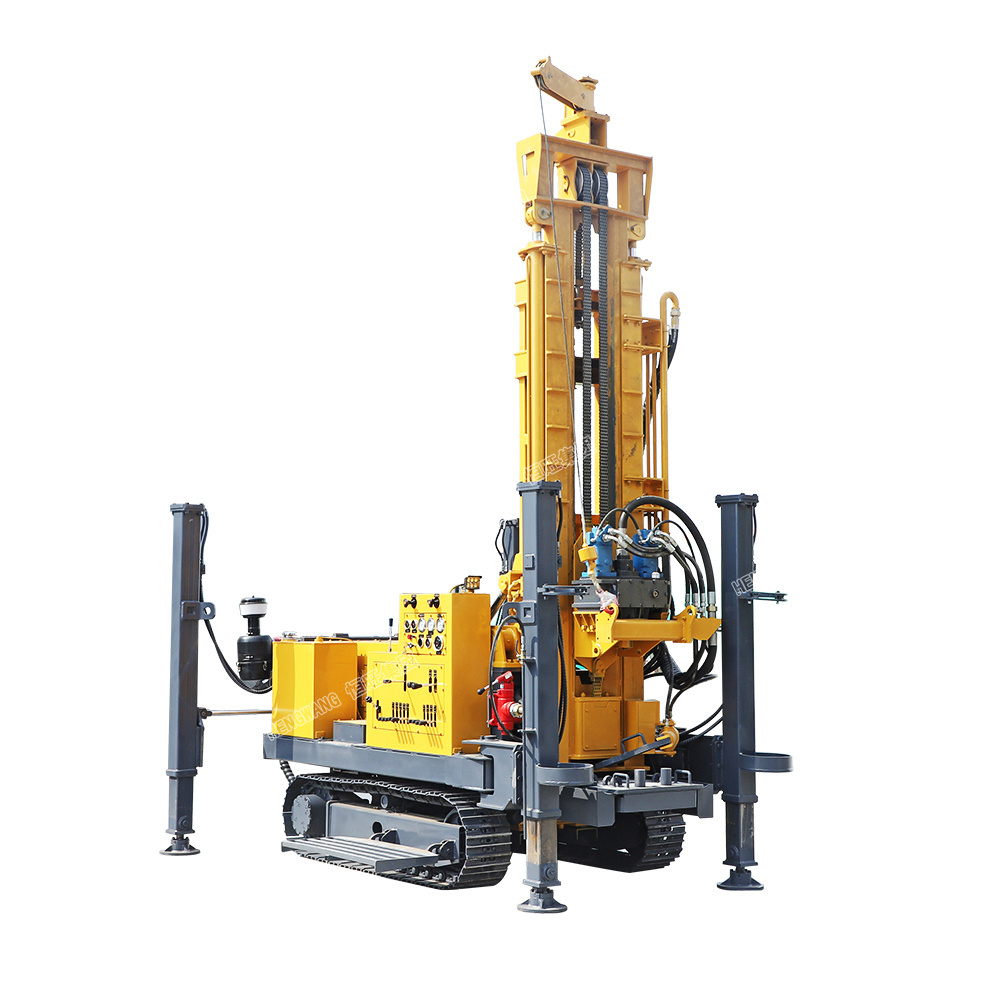

Core sample PNEUMATIC DRILLING RIG
HQZ series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The rig can work on different formations, drilling diameter up to 245mm. The rig adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. Unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
track-mounted drill rig deep ground drilling machine for soil test
Features:
1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.
Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.
Self loading and unloading,
Easy to operating
track-mounted water well drilling rig deep ground crawler drilling rig machine portable water well drilling rigs for soil test
| Model | HQZ150L | HQZ180L | HQZ260L | HQZ300L | HQZ400L | HQZ500L |
| Overall weight (T) | 3.5 | 4.2 | 6.4 | 8 | 8.7 | 9.5 |
| Dimension (mm ) | 3400*1500*2400 | 3800*1700*2350 | 4100*1900*2600 | 5500*1950*2780 | 5300*2050*2700 | 5350*2100*2700 |
| Drilling diameter(mm ) | 130-245 | 130-294 | 140-300 | 140-325 | 130-400 | 140-400 |
| Drilling depth(m) | 150 | 180 | 260 | 300 | 400 | 500 |
| One-time advance length of the drill(mm) | 3000 | 3000 | 3000 | 3000/6000 | 3000/6000 | 3000/6000 |
| Traveling speed(km/h ) | 2.5 | 2.5 | 2.5 | 2.5 | 6 | 6 |
| Climbing ability(max ) | 25 | 30 | 30 | 30 | 25 | 25 |
| Minimum Ground Clearance(mm) | 250 | 250 | 250 | 230 | 300 | 350 |
| Working Air Pressure(mpa ) | 1.45 - 2.5 | 1.7-2.5 | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | 1.7-3.5 |
| Air consumption | 15 - 27 | 15 - 27 | 17-35 | 23 | 17-35 | 17-35 |
| Main machine power(kw) | 42 /Yunnei | 60/ Yunnei | 85/Yuchai | 92/Yuchai | 100/6 cylinder | 114/6 cylinder |
| Rotary Speed (rpm) | 38 - 80 | 48 - 70 | 40-70 | 55-115 | 45-75 | 45 - 75 |
| Rotary torque(Nm ) | 4000-5000 | 4200-5600 | 7000-9000 | 8500-10000 | 9000-10000 | 9500-10000 |
