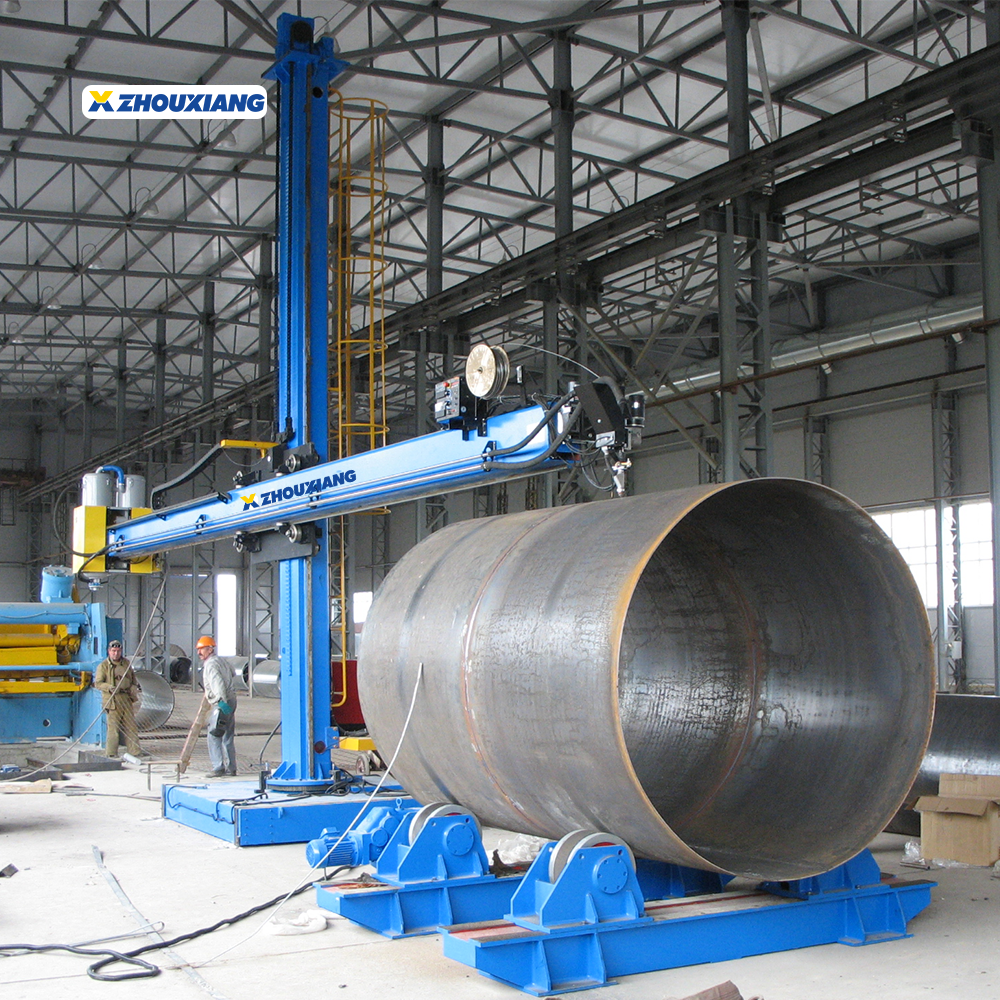

Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
7000
-
Voltage:
-
AC220V/110V
-
Current:
-
depends
-
Rated Capacity:
-
depends
-
Rated Duty Cycle:
-
<50%
-
Dimensions:
-
depends
-
Use:
-
welding
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhouxiang
-
Weight (KG):
-
7000
-
Voltage:
-
AC220V/110V
-
Current:
-
depends
-
Rated Capacity:
-
depends
-
Rated Duty Cycle:
-
<50%
-
Dimensions:
-
depends
-
Use:
-
welding
Products Description
Parameter
We have built a portfolio of global leading welding machines, Manufactures a wide range of welding product portfolios including column and boom welding manipulators、welding rotator and welding positioner.Our column and booms welding manipulator consists of stationary, mobile, light duty, extra heavy duty and telescopic, etc.
If your project demands are non-typical, our in-house capabilities and next-level engineering expertise enable us to develop special purpose welding manipulators for those more‘complex’ project needs.
Our welding manipulator can be supplied full loaded with welding equipment (SAW, GTAW, GMAW and K-Tig) as a “turnkey” package or as the “steel work only”.
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
|
Model
|
Boom In-Out Speed（m/min）
|
Boom Up-Down Speed（m/min）
|
Column Rotation Angle (±180°)
|
Trolley Speed (m/min)
|
Machine Height（mm）
|
Boom
|
|
Rail & Wheels Distance （M）
|
Trolley Size (mm)
|
|
|
|
|
|
|
|
|
Horizontal Expansion
(mm)
|
Vertical Expansion
(mm)
|
|
|
|
|
|
|
|
|
|
Mh
|
Emin--Emax
|
Lmin--Lmax
|
Rc * Wd
|
Tl*Tw*Th
|
|
|
LCH2020
|
0.12-1.2
|
0.3
|
manual
|
1.5
|
3474
|
625 -- 2625
|
775 -- 2775
|
0.84*1.24
|
1454*1100*174
|
|
|
LCH3040
|
|
1
|
motorized
|
1.5
|
5908
|
1500 -- 5500
|
950 -- 3950
|
1.71*1.90
|
2144*2000*225
|
|
|
LCH3550
|
|
1
|
|
1.5
|
6408
|
1500 -- 6500
|
950 -- 4450
|
1.71*1.90
|
2144*2000*225
|
|
|
LCH4050
|
|
1
|
|
1.5
|
6908
|
1500 -- 6500
|
950 -- 4950
|
1.71*1.90
|
2144*2000*225
|
|
|
LCH5060
|
|
1
|
|
1.5
|
7908
|
1500 -- 7500
|
950 -- 5950
|
1.71*1.90
|
2144*2000*225
|
|
|
LCH8060
|
|
0.9
|
|
1.5
|
11090
|
1500 -- 7500
|
1330 -- 9330
|
3.00*2.68
|
3034*3270*305
|
|
Product Advantages
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
Hard-surfaced rails can withstand enormous pressure.The guide rail surface is not deformed, makes the boom move smoothly, ensuring that the equipment still has high precision and safety after long-term use.
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
The swing speed and swing range of the welding oscillator can be adjusted, and it is easy to meet the requirements of different welding seam widths and swing speeds, greatly reducing the labor intensity of the welder and improving the work efficiency.
Electrical control system adopts IP65 protection against dust and heavy rain and remote wire / wireless control box operation. The high-standard electrical control box has neat wiring and clear grounding signs.
Reasonable setting of safety guardrails and ladders can help reduce the risks of the crane collisions and high-altitude falls faced by personnel during work. The guardrail products conform to the US OSHA and EU BS standards, and the guardrail generally adopts the eye-catching color: RAL1021.
Packing & Shipping
Customer Photos
Main Products
Why Choose Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
1.Q: What is the minimum order quantity?
A: 1PCS.
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
2.Q: What are the payment terms?
A: L/C; T/T.
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
3.Q: How long is the delivery time?
A: 30 Days.
Circular Longitudinal Seam Automatic Column And Boom Welding Manipulator Machine In Wind Tower Plant
4.Q:How long is the warranty period?
A: 1 Years.
