Quick Details
-
Dimension(L*W*H):
-
2750*950*1600mm
-
Weight:
-
760 KG
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Main machine
-
Mobility:
-
Move by pickup, truck, tractor
-
Application:
-
Water well, coring, geotechnical survey, etc.
-
Drill rod length:
-
4.2m
-
Drilling bit:
-
Alloy bit, diamond bit, tricone bit , etc.
-
Mud pump:
-
BW-100 or BW-160
-
Rotating speed:
-
142, 285, 570r/min
-
Color:
-
Blue, yellow, red, green for options
-
Diameter of drill rods:
-
50mm, 60mm
-
Name:
-
XY-200 Portable Hydraulic Drilling Rig for Mineral Exploration
-
Certification:
-
CE, ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LEAGOO
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2750*950*1600mm
-
Weight:
-
760 KG
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
Main machine
-
Mobility:
-
Move by pickup, truck, tractor
-
Application:
-
Water well, coring, geotechnical survey, etc.
-
Drill rod length:
-
4.2m
-
Drilling bit:
-
Alloy bit, diamond bit, tricone bit , etc.
-
Mud pump:
-
BW-100 or BW-160
-
Rotating speed:
-
142, 285, 570r/min
-
Color:
-
Blue, yellow, red, green for options
-
Diameter of drill rods:
-
50mm, 60mm
-
Name:
-
XY-200 Portable Hydraulic Drilling Rig for Mineral Exploration
-
Certification:
-
CE, ISO

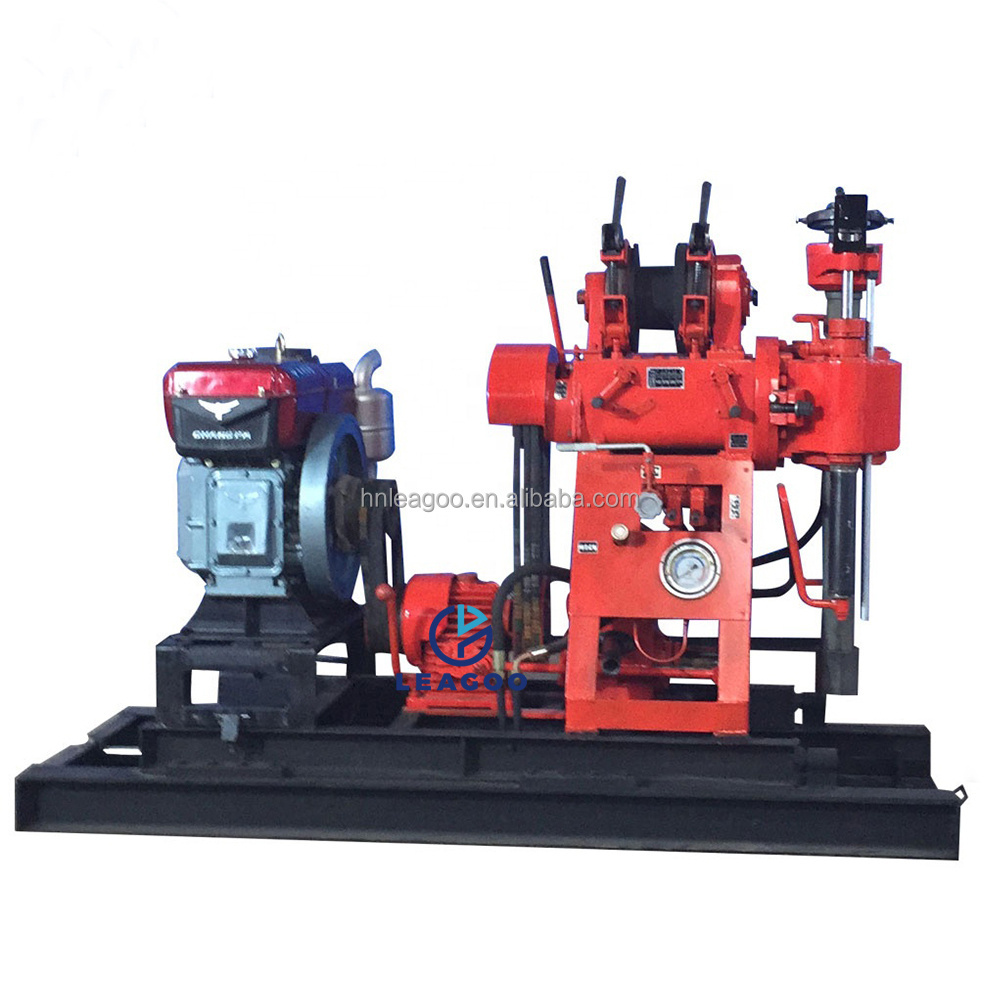

XY-200 Portable Hydraulic Drilling Rig for Mineral Exploration
It is a high-speed drilling rig, suitable for geological survey, geophysical exploration, road and high-rise building foundation exploration, water wells, blasting holes and other drilling projects .
1. Max depth 200m with 400mm-75mm diameter.
2. Alloy bit, diamond bit and tricone bit can be selected for drilling according to the different bottom layers.
3. Diesel engine with electric starter as power, no need to use electricity, convenient for outdoor drilling.
4. BW-100 mud pump , with large water flushing rate, supply powerfully energy for working, BW-160 mud pump can be customized.
5. Red, green, yellow, blue color for options.
XY-200 Portable Hydraulic Drilling Rig for Mineral Exploration
|
1. Main Machine |
|
|
Drilling depth |
200m |
|
Maximum open hole caliber |
400mm |
|
End hole caliber |
75mm |
|
Diameter of drill rod |
50mm |
|
Drilling angle |
90~75 |
|
Weight(not include power) |
760kg |
|
Dimension |
2750*950*1600mm |
|
2. Vertical shaft |
|
|
Rotating speed |
71,142, ,310,,620r/min |
|
Feeding stroke |
450mm |
|
3.Hoist |
|
|
Max. single line hoisting capacity |
2400Kg |
|
Diameter of wire rope |
13mm |
|
Volume of winding drum |
35m |
|
Hug floodgate caliber |
230mm |
|
Hug floodgate belt width |
70mm |
|
4. Mud pump |
|
|
Type |
Horizontal single urn twin-action |
|
Rate of flow |
180L/min |
|
MAX. pressure |
1.5MPa |
|
Working pressure |
0.7MPa |
|
Diameter of water inlet tube |
50mm |
|
Diameter of water outlet tube |
45mm |
|
5. Power |
|
|
Diesel engine |
22HP, 2200r/min |
1.Professional pre-sale and after-sale technical support
2.Provide spare parts at cost price all year around.
3.Online service 24 hours* 7 days
4.One year guarantee for main machine
5.Operation video and manual are available.
