Quick Details
-
Brand Name:
-
WF
-
Place of Origin:
-
Suhzou China
-
Pressure:
-
other
-
Structure:
-
Hydraulic Cylinder
-
Weight:
-
7.56
-
Power:
-
as client's need
-
Dimension(L*W*H):
-
as client's need
-
Rod Diameter:
-
35mm
-
Outer Tube Diameter:
-
as client's need
-
Product name:
-
SFP35 Piston Rod
-
Material:
-
CK45/S45C/C1045/1.1191
-
Hardness:
-
HRC18-20
-
Precision:
-
f7
-
Surface Treatment:
-
Chrome Plating
-
Roughness:
-
Ra 0.2μm~0.4μm
-
Chrome layer thickness::
-
15μm ~ 25μm(According to your request)
-
Chrome layer hardness:
-
Above HV850
-
Straightness:
-
0.15mm /1000mm
-
Length:
-
1000mm
Quick Details
-
Warranty:
-
Unavailable
-
Maximum Stroke:
-
240mm
-
Inner Tube Diameter:
-
as client's need
-
Brand Name:
-
WF
-
Place of Origin:
-
Suhzou China
-
Pressure:
-
other
-
Structure:
-
Hydraulic Cylinder
-
Weight:
-
7.56
-
Power:
-
as client's need
-
Dimension(L*W*H):
-
as client's need
-
Rod Diameter:
-
35mm
-
Outer Tube Diameter:
-
as client's need
-
Product name:
-
SFP35 Piston Rod
-
Material:
-
CK45/S45C/C1045/1.1191
-
Hardness:
-
HRC18-20
-
Precision:
-
f7
-
Surface Treatment:
-
Chrome Plating
-
Roughness:
-
Ra 0.2μm~0.4μm
-
Chrome layer thickness::
-
15μm ~ 25μm(According to your request)
-
Chrome layer hardness:
-
Above HV850
-
Straightness:
-
0.15mm /1000mm
-
Length:
-
1000mm
Products Description
Carbon Steel Chrome Hydraulic Cylinder Rod Precision Schwing Piston Rod For Hydraulic Cylinder
Piston rods are steel rods made of C1045/CK45 or 42CrMo/4140 material Ground and Hard Chrome plated surface.The rods undergo rigorous processes like pilling, straightening, hardening, grinding, polishing, hard chrome plating and finishing under the supervision of experienced engineers.
Hard Chrome Plated Piston Rods are widely used in hydraulic and pneumatic cylinder, printing machinery, textile machinery,engineering machinery, wood working machinery, etc. Our products are highly appreciated by our clients for their features like corrosion resistance, robust construction, elevated durability, high tensile strength and the mirror-like surface.
Hard Chrome Plated Piston Rods are widely used in hydraulic and pneumatic cylinder, printing machinery, textile machinery,engineering machinery, wood working machinery, etc. Our products are highly appreciated by our clients for their features like corrosion resistance, robust construction, elevated durability, high tensile strength and the mirror-like surface.
Detailed specifications of Piston Rods as follows:
|
Piston Rods
|
|
|
|
Structure
|
Ground and Hard Plated Rod
|
|
|
Material
|
CK45/S45C/C1045/1.1191 GCR15/SUJ2 42CrMO/4140
|
|
|
Shaft Diameter
|
3-120MM
|
|
|
Surface TreatmentS
|
HRC18-20
|
|
|
Surface Treatment
|
Chrome Plating Surface
|
|
|
Chrome layer thickness
|
15um~25um(According to your request)
|
|
|
Chrome layer hardness
|
Above HV850
|
|
|
Axis Straightness
|
0.15MM /1000MM
|
|
|
Roughness
|
Ra 0.2um~0.4um
|
|
|
Precision
|
f7
|
|
Details Images
WHAT CAN WE SUPPLY :
1,We can offer full ranges of piston rods with diameter 3mm- 120mm, maximum length up to 8000mm.Inch sizes including 25.4/38.1/50.8/63.5/76.2/88.9/101.6mm all can be customized as orders.
2,We can provide customized material including GCr15/SUJ2, 42CrMo/4140,Stainless Steel SUS304/316

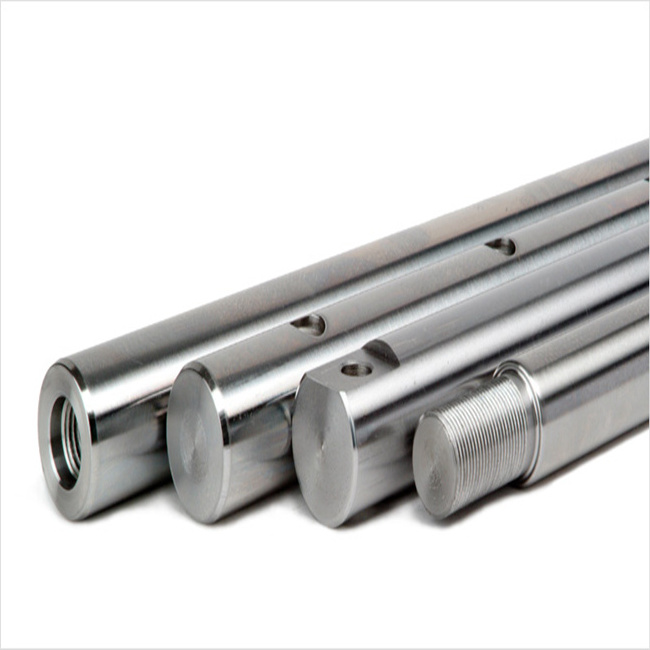

3,When you have special requirements on machining or lathing, such as threading, drilled and tapped, milling keys etc. We can lathe for you. We have high precision several milling machines, drilling machines and 14 CNC lathing centers. Our advanced equipment, skilled technical workers,scientific testing instrument and strict quality control, all of these factors to ensure the precision of our products. Our service center is at your disposal for machining of shafts according to your request or your drawings. You will be satisfied with our service.
2,We can provide customized material including GCr15/SUJ2, 42CrMo/4140,Stainless Steel SUS304/316
3,When you have special requirements on machining or lathing, such as threading, drilled and tapped, milling keys etc. We can lathe for you. We have high precision several milling machines, drilling machines and 14 CNC lathing centers. Our advanced equipment, skilled technical workers,scientific testing instrument and strict quality control, all of these factors to ensure the precision of our products. Our service center is at your disposal for machining of shafts according to your request or your drawings. You will be satisfied with our service.
Product real picture display:
