Quick Details
-
Ink Type:
-
eco solvent ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TECJET
-
Voltage:
-
110v/220v, 50Hz/60Hz
-
Dimensions(L*W*H):
-
2500mm*750mm*1500mm
-
Weight:
-
220KG
-
Printhead:
-
DX7, DX5, XP600
-
Resolution(dpi):
-
720*1440dpi
-
Ink type:
-
Eco Solvent ink/water base ink/sublimation ink
-
Media Support:
-
pp/flex banner/vinyl/paper etc
-
Media Weight Capacity:
-
50kg
-
MOQ:
-
1 set
-
Color:
-
C,M,Y,K
-
Footprint:
-
2500mm*750mm*1500mm
-
Application:
-
Indoor Outdoor Advertisement
-
RIP Software:
-
Ultraprint,Maintop, Photoprint
-
Certification:
-
CE SGS MSDS
Quick Details
-
Print Dimension:
-
1.3m/1.6m/1.8m/2.6m
-
Condition:
-
New
-
Color & Page:
-
C,M,Y,K
-
Ink Type:
-
eco solvent ink
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TECJET
-
Voltage:
-
110v/220v, 50Hz/60Hz
-
Dimensions(L*W*H):
-
2500mm*750mm*1500mm
-
Weight:
-
220KG
-
Printhead:
-
DX7, DX5, XP600
-
Resolution(dpi):
-
720*1440dpi
-
Ink type:
-
Eco Solvent ink/water base ink/sublimation ink
-
Media Support:
-
pp/flex banner/vinyl/paper etc
-
Media Weight Capacity:
-
50kg
-
MOQ:
-
1 set
-
Color:
-
C,M,Y,K
-
Footprint:
-
2500mm*750mm*1500mm
-
Application:
-
Indoor Outdoor Advertisement
-
RIP Software:
-
Ultraprint,Maintop, Photoprint
-
Certification:
-
CE SGS MSDS

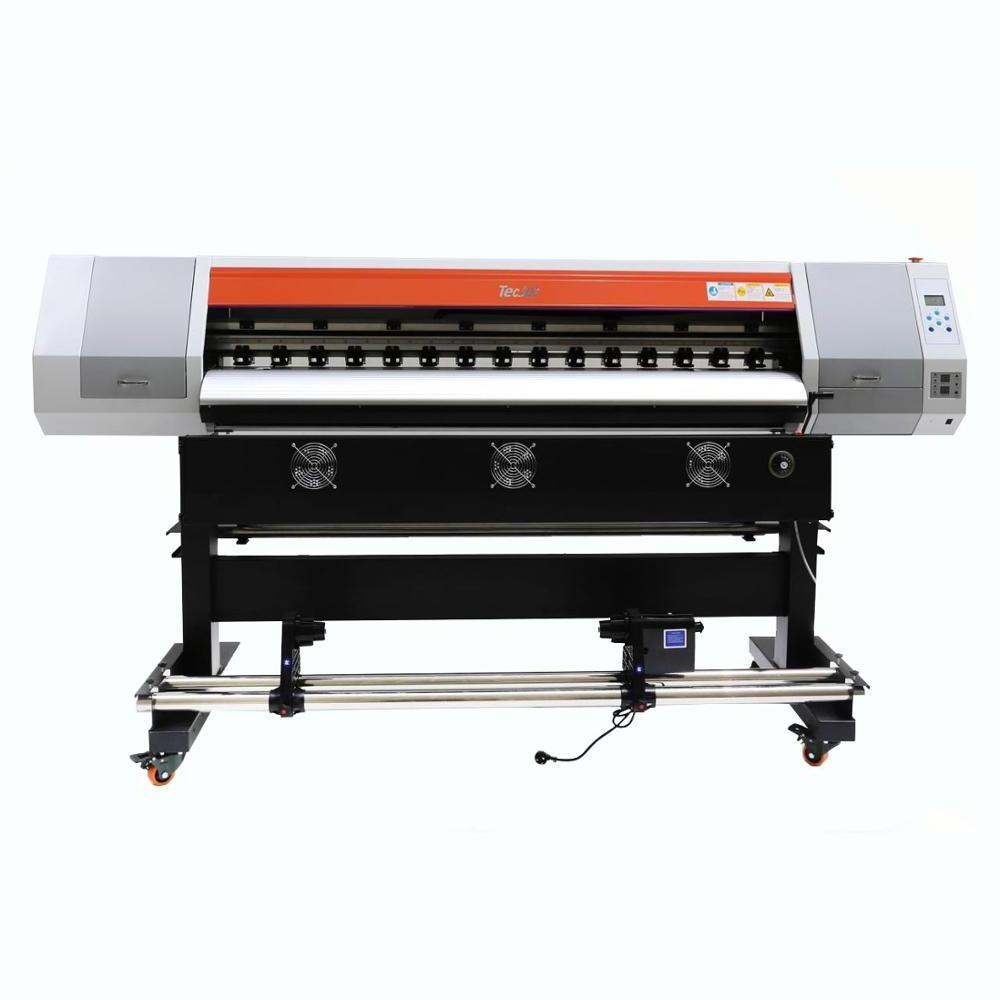

DX5 XP600 Digital Printer 1.6m 1.8m China plotter for Large format poster canvas vinyl wrap eco solvent printer
Specification
| Item Model | TECJET S1671 | |
| Printhead | 1pc DX7 | |
| UV KIT | Support(option) | |
| Print resolution/speed | Draft:18m2/hour | |
| Standard:12m2/hour | ||
| High resolution:9m2/hour | ||
| Ink | Ink Type | Water Based Ink/ Eco Solvent Ink, Water Based ink; dye ink, Sublimation ink |
| Capacity | 1L*4/color | |
| Media | Max.Width | 1550mm |
| Thickness | 1.5mm to 8mm adjustable | |
| Max.Capcity | 75KG | |
| Media Type |
PP Sythentic paper, vinyl sheet, film, coated paper, Acid Proof paper banner, canvas etc., Adhesive Vinly sheet, Banner and so on. |
|
| High Printing quality | Three intelligent eclosion print function;VSD technology | |
| Media Heater | Pre/Print/Post Heater (can be controlled separately) | |
| Media Take-up Device | Strong Rolling take-up device with the automatic damper | |
| Drying system | Fan & Heater Drying system | |
| Interface | Ethernet | |
| RIP Software | Maintop V5.3 5.5, Photoprint, Topaz, Seeget Wasatch | |
| Powder | AC110V+/- 10%,AC220V+/-10%,50/60+/HZ 2000W | |
| Environment | Temperature:20℃-35℃,Humidity:35%RH-65%RH | |
| Dimensions of Printer | L 2500 x W 750 x H 1500mm | |
| Dimensions of Packing | L 2630 x W 770 x H 720mm | |
| Net Weight | 190KG | |
| Gross Weight | 220KG | |
Following the classic process, we keep taking simple, stable as the ideas to build TecJet S series commercial printers. No matter printing banner, vinyl and other commercial advertising, or polyester textile, or UV roll material , TecJet S series can esay to handle it, and all that is due to the simple, stable, single initial ideas. Using TecJet S series is easy to operate, maintain,it can run 24 hours and it will always be ready for your business.
1. The high resolution main beam is made by molded and milling process.
2. Taiwan hiwin quiet, high resolution liner guider.
3. Long time testing auto electronic up / down cap station, simple and long working life.
4. Height adjustable CISS cartridge, suit different kind of ink.
5. 100M LAN interface.
6. Fan and Infrared heater dry system, Take-up system all included, no need to buy.
