Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Longyi
-
Model Number:
-
LY-RQFY-800
-
Voltage:
-
380 /220 V ( As your request)
-
Dimension(L*W*H):
-
8.0*9.0*1.5 m
-
Weight:
-
3000 KG
-
Product name:
-
mesh bag cutting sewing machine
-
Application:
-
Cut woven fabric roll to sheets and then sew, print them
-
Applied material:
-
Kraft paper, plastic PP, PE woven rolls, etc
-
Suitable thickness:
-
4-5 mm
-
Folding width:
-
20-30 mm
-
Maximum diameter of woven roll:
-
1200 mm
-
Cutting length:
-
500-1300 mm
-
Cutting width:
-
400-800 mm
-
Number of operators:
-
1 person
-
Automatic or not:
-
Automatic
Quick Details
-
Machine Type:
-
cutting and sewing printing machine
-
Bag Type:
-
plastic/ paper woven bag/sack
-
Material:
-
plastic, pp, pe, kraft paper, etc
-
Place of Origin:
-
China
-
Brand Name:
-
Longyi
-
Model Number:
-
LY-RQFY-800
-
Voltage:
-
380 /220 V ( As your request)
-
Dimension(L*W*H):
-
8.0*9.0*1.5 m
-
Weight:
-
3000 KG
-
Product name:
-
mesh bag cutting sewing machine
-
Application:
-
Cut woven fabric roll to sheets and then sew, print them
-
Applied material:
-
Kraft paper, plastic PP, PE woven rolls, etc
-
Suitable thickness:
-
4-5 mm
-
Folding width:
-
20-30 mm
-
Maximum diameter of woven roll:
-
1200 mm
-
Cutting length:
-
500-1300 mm
-
Cutting width:
-
400-800 mm
-
Number of operators:
-
1 person
-
Automatic or not:
-
Automatic

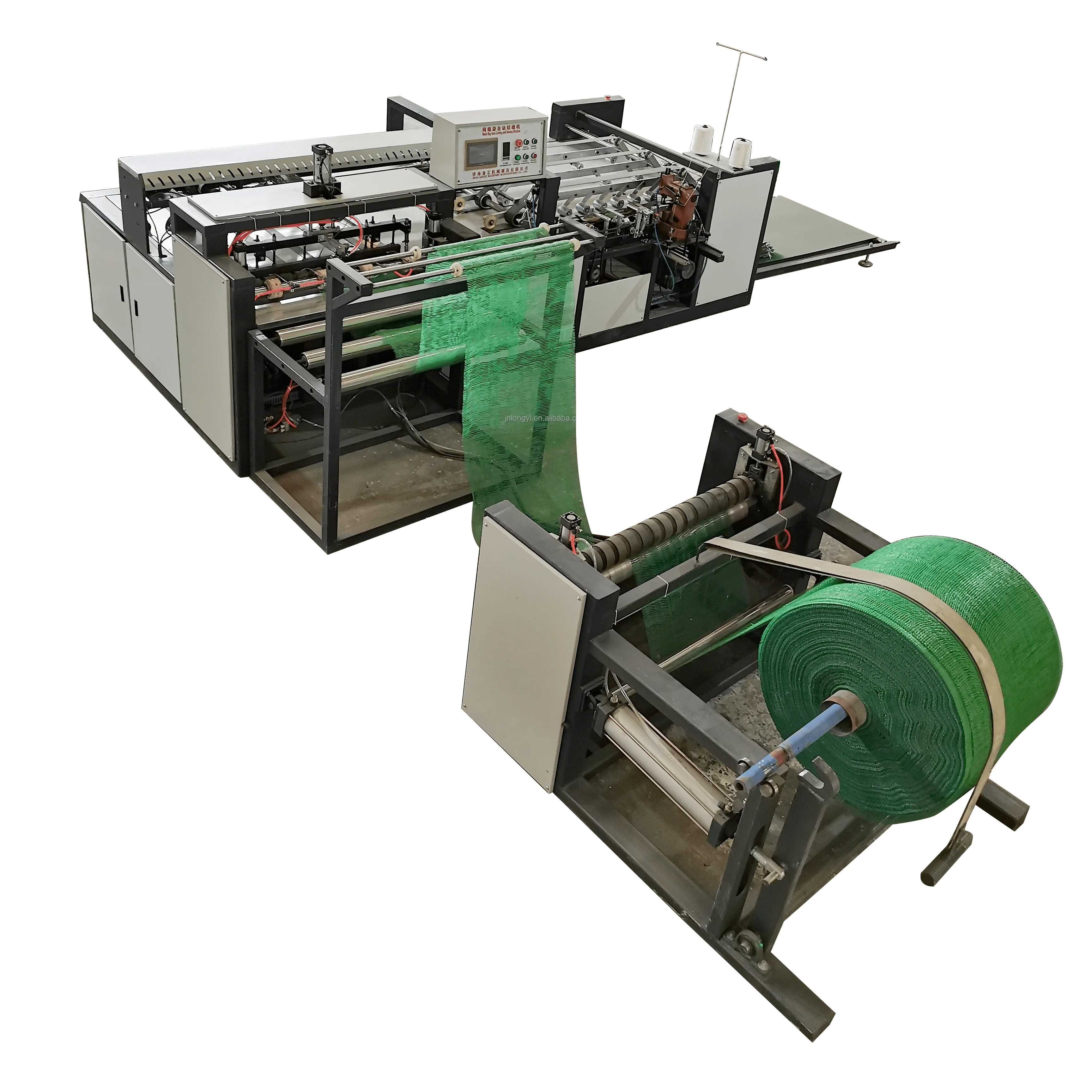

mesh bag Intelligent and efficient cutting and sewing machine mesh bag machine Net Bag Making Machine
Application mesh bag cutting and stitching machine
Features woven sack cut and stitching machine
1) The woven sack cut and tailor machine Save labor cost. Automatically complete the fixed length cutting, folding, sewing bottom, broken thread, collecting bags.
2) Fast cutting speed, neat and beautiful incision, neat seam.
3) Automatic counting, stack feeding, adjustable quantity.
4) PLC touch screen control, servo motor drive, accurate control of bag length.
5) Electric winding, simple operation, reliable quality, stable performance, low failure rate.
Special specifications can be customized according to your requirements.
| Model | LY-HQF-800 | Suitable thickness | 4-5 mm |
| Folding width | 20-30 mm | Maximum diameter of woven fabric roll | 1200 mm |
| Outline size | 5*5*1.6 m | Voltage (V) | 220/380 ( As your request) |
| Number of operators | 1 person | Power | 5.0 kw |
| Cutting length | 600-1300 mm | Cutting width | 400-800 mm |
Details woven sack cut and stitching machine
The woven sack cut and tailor machine are packed in wooden cases, then put into container.
(2) Operation video of the woven sack cut and tailor machine can be sent to you if needed.
(3) 12 months warranty for whole machine without man-made faults.
(4) 24-hours technical assistance by email, telephone or other communication online.
(5) Engineers are available to your country if necessary.
