Quick Details
-
Lamp Body Material:
-
Aluminum
-
Color Rendering Index(Ra):
-
80/90
-
Product Weight（kg）:
-
1.7
-
LED Light Source:
-
COB
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
2700lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NGE
-
Model Number:
-
NGE-TL01-30WZ
-
Product Name:
-
zoomable dimmable 35W 30W COB LED track light
-
Other Watts:
-
7W 10W 12W 15W 20W 25W 40W 50W
-
Power Factor(PF>):
-
0.95
-
Color of housing:
-
black. white
-
Beam angle:
-
15°-60° Zoomable, 15°/24°/38°/60°
-
Wires:
-
4 wires, 3 wires, 2 wires
-
Dimmable:
-
Potentiometer/ Triac/ 0-10V/ Dali/ 2.4G/ Bluetooth/ CCT dimming
-
Zoom:
-
zoom LED track Light
-
35W 30W COB LED track light:
-
Replace 70W traditional track light
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90-150
-
Application:
-
Supermarket, Mall, Shop, Museum, shop, supermarket, museums
-
Design Style:
-
Industrial, Modern
-
Lamp Body Material:
-
Aluminum
-
Color Rendering Index(Ra):
-
80/90
-
Product Weight（kg）:
-
1.7
-
LED Light Source:
-
COB
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
2700lm
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NGE
-
Model Number:
-
NGE-TL01-30WZ
-
Product Name:
-
zoomable dimmable 35W 30W COB LED track light
-
Other Watts:
-
7W 10W 12W 15W 20W 25W 40W 50W
-
Power Factor(PF>):
-
0.95
-
Color of housing:
-
black. white
-
Beam angle:
-
15°-60° Zoomable, 15°/24°/38°/60°
-
Wires:
-
4 wires, 3 wires, 2 wires
-
Dimmable:
-
Potentiometer/ Triac/ 0-10V/ Dali/ 2.4G/ Bluetooth/ CCT dimming
-
Zoom:
-
zoom LED track Light
-
35W 30W COB LED track light:
-
Replace 70W traditional track light

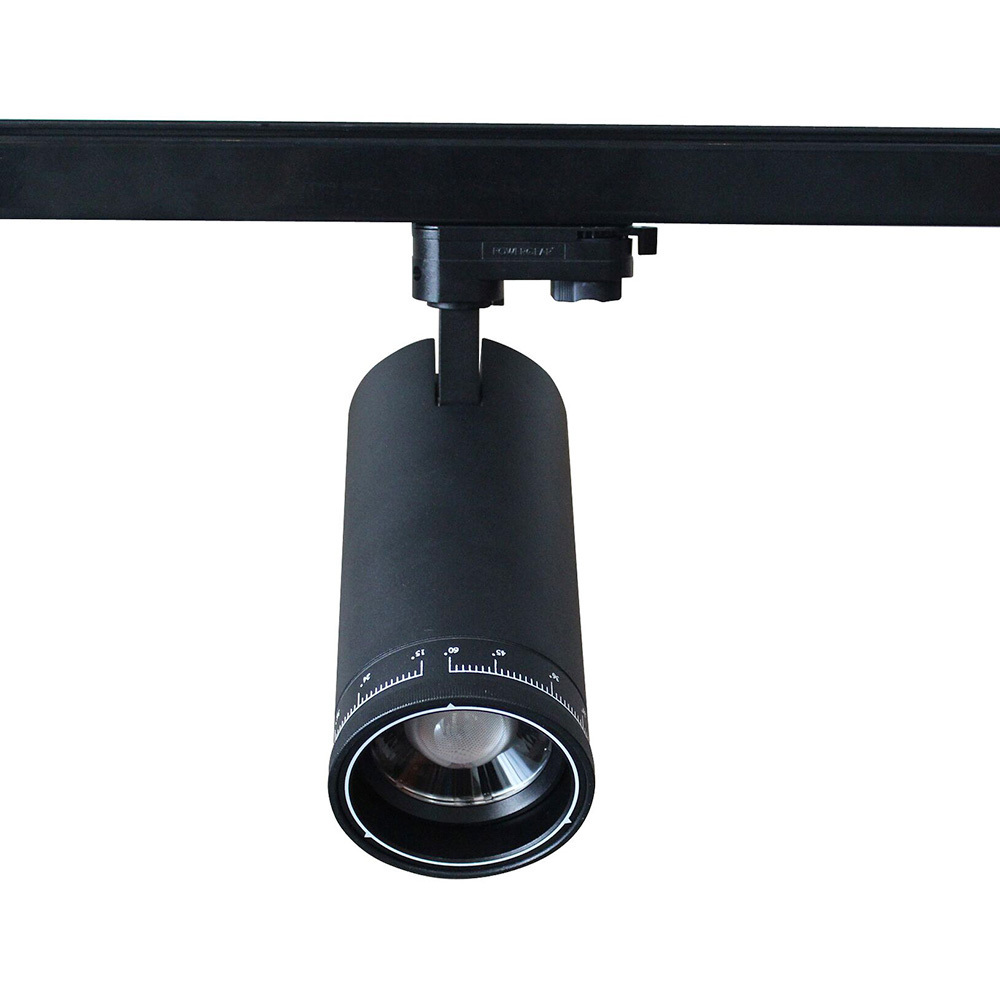

ceiling adjustable spot zoomable narrow beam 15 to 60 degree dimmable 35W 30W COB LED track light
Designed as the replacements for HID 70W track light, NGE 35W 30W LED track light have great advantages of higher bright, better optical design, better heat dissipation and longer service lifetime.
Benefits
• Replacement for HID 70W track light
• Energy saving over 50%
• Environmental protection, no pollution
• Significant reduction in installation & maintenance cost
• Great reduction in shipment cost as small measure
Features
•
LED: Citizen COB LED,CRI>85/90/97, SDCM<3, completed light efficiency 80-90lm/w;
•
Driver: TUV CE,SAA listed,conversion efficiency above 85% and PF>0.90, flicker free;
•
Thermal technology: ADC12 die-casting aluminum housing materials, Black/white color;
• 2/3/4 wires and different driver installation versions are available.
•
Zoomable beam angle 15-60° and Anti-Glare UGR<19/11 design;
•
Certificate: CE,SAA approval and RoHS compliant;
•
Potentiometer/ Triac/ 0-10V/ Dali/ 2.4G/ Bluetooth/ CCT dimming are availble;
•
Warranty: 5 years.
Product Specification
| Specification for ceiling adjustable spot zoomable narrow beam 15 to 60 degree dimmable 35W 30W COB LED track light | ||
|
General Information |
Product Type | 35W 30W COB LED track light |
| Product Size | Ø96*H290mm | |
| Product Color | Black/White | |
| Electric parameter | Driver Brand | Boke or World brands |
| Input Voltage | AC100-240V/50-60Hz | |
| Power | 35W 30W | |
| PF | >0.95 | |
|
Optical Parameter
|
LED Brand | COB |
| CRI | >80/90/97 | |
| Color Temperature (CCT) | 2700K-7000K | |
| Luminous Flux | 2700lm±5% | |
|
Luminous Efficiency |
90lm/w | |
| Beam angle | 15°-60° Zoomable,15°/24°/38°/60° | |
| Others | Lifetime | 50,000Hr |
| Operating temperature | -25℃~50℃ | |
| Warranty | 5 years | |
| Materials | AL housing+AL board | |
| Application | shop, supermarket, musemus | |
Series Products of zoomable dimmable 35W 30W COB LED track light
| Item No. | Input Voltage | Power | Luminous Flux | Luminous Efficiency | CRI | PF | UGR |
| NGE-TL01Z-30W | AC100-240V | 30W | 2700lm±5% | 90lm/w | >80 | >0.95 | 11-19 |
| NGE-TL01Z-35W | AC100-240V | 35W | 3150lm±5% | 90lm/w | >80 | >0.95 | 11-19 |
Series Products of 110lm/w LED track light
| Item No. | Input Voltage | Power | Luminous Flux |
Luminous Efficiency |
CRI | PF | UGR |
| NGE-TL01-7W | AC100-240V | 7W | 770lm±5% | 110lm/w | >80 | >0.95 | 19 |
| NGE-TL01-12W | AC100-240V | 12W | 1320lm±5% | 110lm/w | >80 | >0.95 | 19 |
| NGE-TL01-20W | AC100-240V | 20W | 2200lm±5% | 110lm/w | >80 | >0.95 | 19 |
| NGE-TL01-25W | AC100-240V | 25W | 2750lm±5% | 110lm/w | >80 | >0.95 | 19 |
| NGE-TL01-30W | AC100-240V | 30W | 3300lm±5% | 110lm/w | >80 | >0.95 | 13 |
| NGE-TL01-35W | AC100-240V | 35W | 3850lm±5% | 110lm/w | >80 | >0.95 | 13 |
| NGE-TL01-40W | AC100-240V | 40W | 4400lm±5% | 110lm/w | >80 | >0.95 | 13 |
| NGE-TL01-50W | AC100-240V | 50W | 5500lm±5% | 110lm/w | >80 | >0.95 | 13 |
150lm/w 140lm/w high lumen 30W 35W COB LED Track Light are available
Application
• Shop
• Supermarket
• Museum
• House
|
Item No. |
Quantity/Carton |
Net weight/Pcs |
Gross Weight/ Carton |
Carton Size |
Notes |
|
NGE-TL01Z-30W |
12 |
1.1kg |
16kg |
410*310*310mm |
Each light packed by one PE bag and one box, 12pcs in each carton. |
|
NGE-TL01Z-35W |
12 |
1.1kg |
16kg |
410*310*310mm |
