Quick Details
-
Output Speed:
-
0.16~1028rpm
-
Weight (KG):
-
20 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wuma
-
Product name:
-

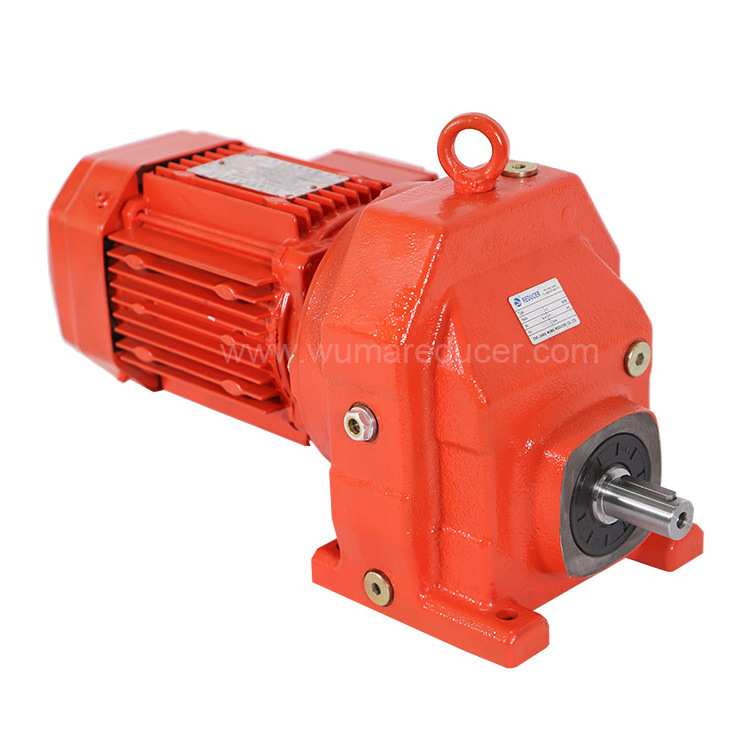

Inline helical gearbox
-
Model:
-
WR
-
Material:
-
Iron Casting
-
Color:
-
RAL7031(grey) Or RAL5010(blue)
-
Certification:
-
CE,ISO9001
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
9 ~19kNm
-
Input Speed:
-
1400rpm(4pole),others
-
Output Speed:
-
0.16~1028rpm
-
Weight (KG):
-
20 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wuma
-
Product name:
-
Inline helical gearbox
-
Model:
-
WR
-
Material:
-
Iron Casting
-
Color:
-
RAL7031(grey) Or RAL5010(blue)
-
Certification:
-
CE,ISO9001
Products Description
|
Type
|
Inline Helical Gearbox / Reducer
|
|
Model
|
WR17~WR167
|
|
Mounting Position
|
Flange, hollow shaft, solid shaft
|
|
Efficiency
|
94%~98%(depends on the transmission stage)
|
|
Material
|
Housing: HT250 high strength cast iron
|
|
|
Gear: 20CrMnTi
|
|
Surface hardness of gears
|
HRC58~62
|
|
Input/output shaft material
|
40Cr
|
|
Machining precision of gears
|
Accurate grinding, 6 grade
|
|
Warranty
|
1 Year
|
|
Input Power
|
0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW,
11Kw and so on.
|
|
Usages
|
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,
Wood working, Glass.
|
|
IEC Flange
|
IEC standard flange
|
|
Lubricant oil
|
Gear oil
|
