Quick Details
-
Weight (KG):
-
500 kg
-
Product name:
-
HDG hot dip galvanized steel overhead water storage tank
-
Certification:
-
ISO9001
-
Material:
-
Q235 steel
-
Panel size:
-
0.5m*0.5m,1m*0.5m,1m*1m
-
Technique:
-
Moulding pressing
-
Capacity:
-
0.125-1000cubic meter
-
Color:
-
Natural
-
Shape:
-
Square Shape
-
OEM:
-
Yes
-
Whatsapp:
-
+86-15127808552
Quick Details
-
Core Components:
-
tank panel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OPCT
-
Weight (KG):
-
500 kg
-
Product name:
-
HDG hot dip galvanized steel overhead water storage tank
-
Certification:
-
ISO9001
-
Material:
-
Q235 steel
-
Panel size:
-
0.5m*0.5m,1m*0.5m,1m*1m
-
Technique:
-
Moulding pressing
-
Capacity:
-
0.125-1000cubic meter
-
Color:
-
Natural
-
Shape:
-
Square Shape
-
OEM:
-
Yes
-
Whatsapp:
-
+86-15127808552

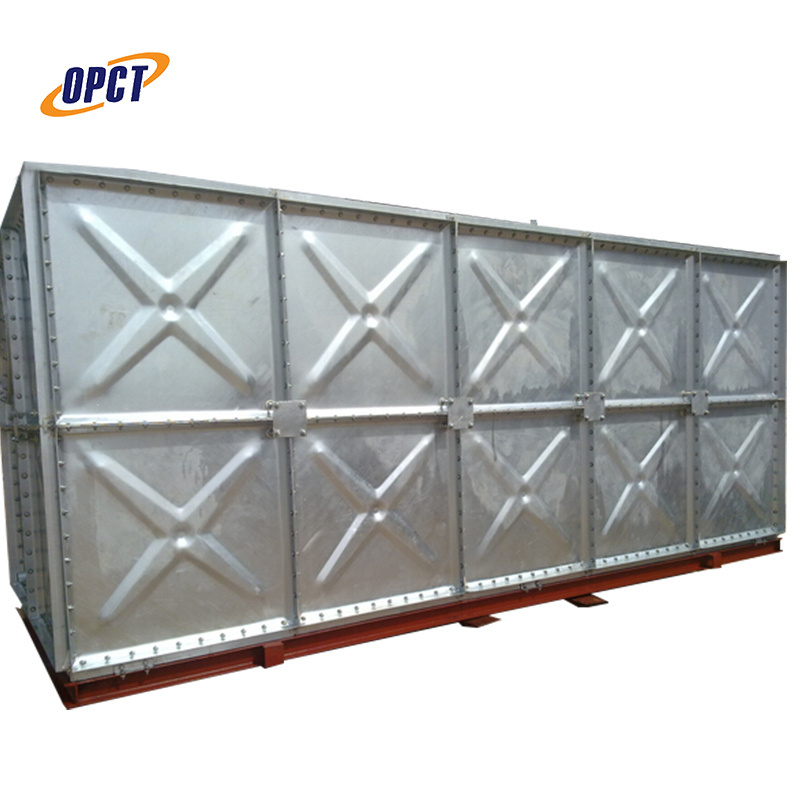

HDG hot dip galvanized steel overhead water storage tank
Galvanized Steel Combined Water Tank is punched by Q235 into 500mm*500mm or 1000mm*1000mm and 1000mm*500mm standard panels, drilling around, after HDG treatment, assembly at site. When combined, the gap between two standard panels is sealed by silicon pad, connected by bolts.
|
Product name |
Galvanized steel water tank |
|
Material composition |
Q235 steel |
|
Product Size |
0.5*0.5m, 1*1m, 1*0.5m, etc |
|
Panel Thickness |
3mm,2.5mm,2mm,1.5mm, it is different according the size of the tank. |
|
Tank Volume |
0.125-1000m3 |
|
Connection way |
Bolt link |
|
Eco-Friendly |
Yes |
|
Application |
Water storage |
|
Process technique |
Moulding process |
Inflow, outflow tubes as well as return tube's diameter and place is decided by the designer, passages of at least 7000mm is needed around the tank.
|
Raw material: Q235 steel;
|
2. Anti-aging, no distorsion, no infiltration .
3. Easy to clean and conveniently to install and assemble.
4. It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.
Bolt. nut & washers:
stainless steel 304 material.
Sealing material:
Non-toxic P.V.C foam tape shall be used in between the joints
Covers:
The tank cover shall be constructed from 1.2mm to 3.0mm of thickness galvanized Q235 steel material according to the requirement
Flanges :
The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method :
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of Q235 material according to requirement.
Precautions
1.When you order should provide water tank size, take over the place, diameter size.
2.Water tank can be supporting supply.
3.Use water injection temperature for the 4-65 is advisable. Water injection temperature higher than the value can be put forward in order to separately solve.
4.Water tank inside and outside of the other welding not welding, prevent damage porcelain face.
5.Water tank to the ground under should with structure design personnel for approval shall prevail.
6.Water tank should be regularly cleaned, try to prevent water into the trash.
This g alvanized steel water tank is widely used in storage and regulation of living water supply & construction water supply, and temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense Water, chemical, and so on. Taking flexible, reasonable plate design, suitable for all capacities combined water tank. Suitable for living water with PH value: 6.5-8.5, using life: ≥ 20 years
