Quick Details
-
Applicable Industries:
-
machinery
-
Nominal pressing force:
-
500T
-
Rated system pressure:
-
21MPa
-
The size of inlet aluminum rod:
-
80*(150-350)mm
-
The size of outlet:
-
110*130mm (customized)
-
The size of extrusion tube:
-
85x400mm
-
The size of die holder:
-
170*150mm (customized)
-
The center height of machine:
-
895mm
-
After-sales Service:
-
Free spare parts
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhenhuan
-
Weight (KG):
-
2000
-
Applicable Industries:
-
machinery
-
Nominal pressing force:
-
500T
-
Rated system pressure:
-
21MPa
-
The size of inlet aluminum rod:
-
80*(150-350)mm
-
The size of outlet:
-
110*130mm (customized)
-
The size of extrusion tube:
-
85x400mm
-
The size of die holder:
-
170*150mm (customized)
-
The center height of machine:
-
895mm
-
After-sales Service:
-
Free spare parts
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support

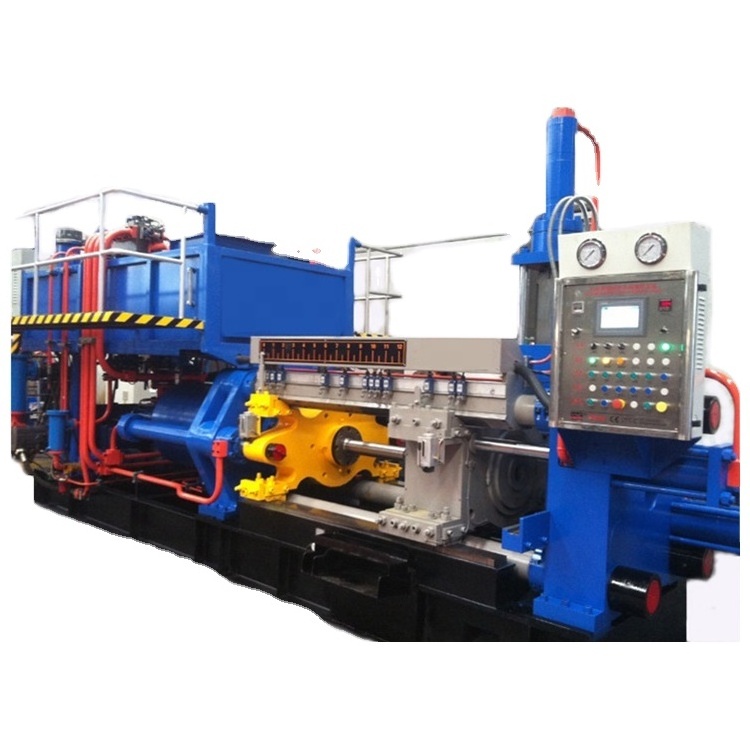

Aluminum profile
extrusion press machine ZH-500
I. D escription of Aluminum profile extrusion press machine:
This production line contains: 1. 1set Aluminum profile extrusion press machine; 2. 1set Infrared die heating oven; 3. 1set Semi-auto long bar hot shearing furnace; 4. 1 set Automatic cooling table; 5. 1set Single tractor; 6. 1set Single door aluminum profile a ging furnace.
This series of equipment is suitable for extrusion process of copper, lithium, zinc, aluminum, magnesium, lead and other alloys to produce all kinds of building profiles, industrial profiles and vehicle and aviation profile products.
It positive extrude the solid ingot to be the profiles as requirement; Hydraulic drive, electrical control; PLC control; Single stroke automatic and manualoperation mode.
II. Main technical data of Aluminum profile extrusion press machine
|
Item |
Name |
Data |
|
500T Aluminum profile extrusion press machine
|
Nominal pressing force |
500T |
|
Rated system pressure |
21MPa |
|
|
The size of inlet aluminum rod |
φ80×(150-350)mm |
|
|
The size of outlet |
Φ110×130mm (customized) |
|
|
The size of extrusion tube |
Φ85x400mm |
|
|
The size of die holder |
φ170×150mm (customized) |
|
|
The center height of machine |
895mm |
|
|
The dimension of the machine |
6500×2800×2300mm |
