Quick Details
-
Product name:
-
TV Digital Transmitter
-
Output Power:
-
200W
-
Working frequency::
-
VHF/UHF Channel arbitrary choice
-
Output Load Impedance:
-
50Ω
-
VSWR:
-
≤1.12
-
Power supply:
-
Single-phase 220V
-
Video Frequency input Impedance:
-
75Ω
-
DG:
-
±5%
-
Certificates:
-
ISO9001 ISO14001
-
MOQ:
-
1 Pcs
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Vision
-
Model Number:
-
WS-TV100WT
-
Product name:
-
TV Digital Transmitter
-
Output Power:
-
200W
-
Working frequency::
-
VHF/UHF Channel arbitrary choice
-
Output Load Impedance:
-
50Ω
-
VSWR:
-
≤1.12
-
Power supply:
-
Single-phase 220V
-
Video Frequency input Impedance:
-
75Ω
-
DG:
-
±5%
-
Certificates:
-
ISO9001 ISO14001
-
MOQ:
-
1 Pcs

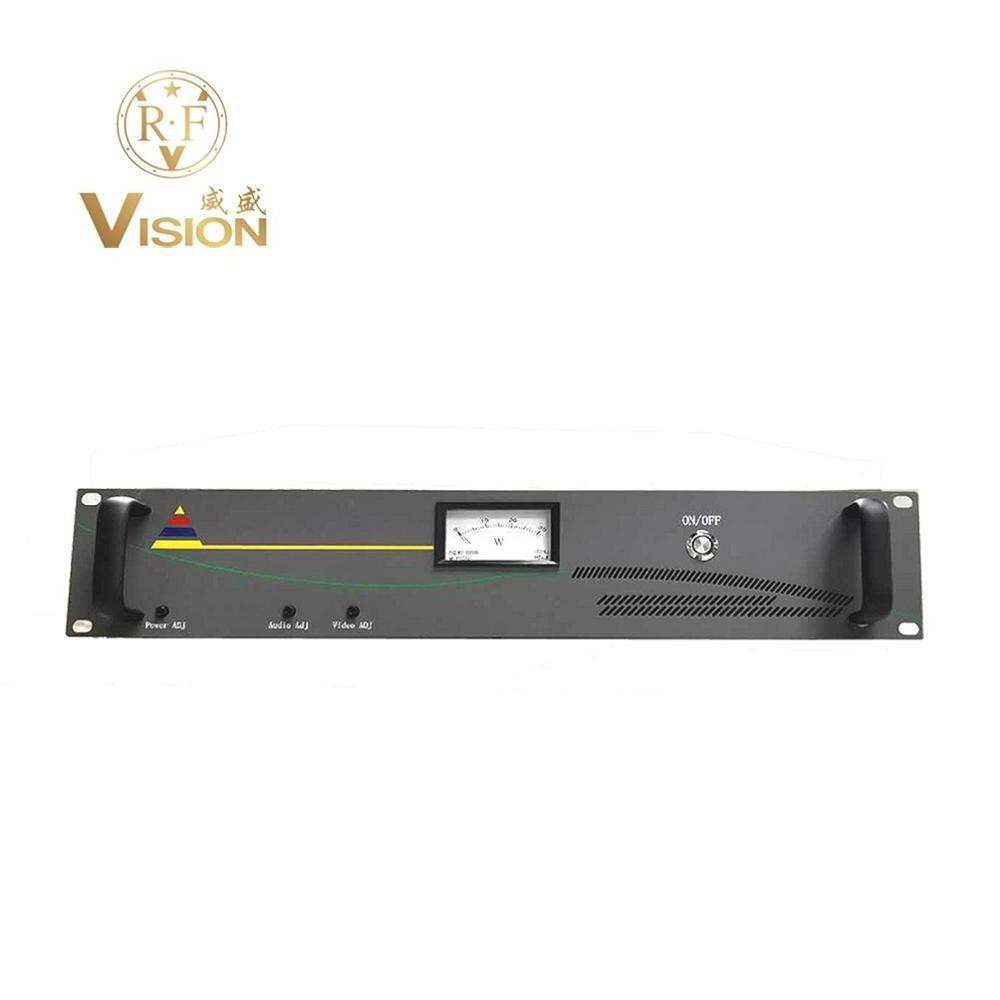

All solid-state 200w digital tv broadcasting transmitter wholesale uhf tv transmitter equipment
Products Description
Features
- all solid-state digital TV transmitter with 6-8MHZ bandwidth.
- simple and compact structure.
- support DTMB, DTMB-A, DVB-T/T2, ATSC standards (different software configurations required).
- adopting sixth generation LDMOS.
- remote control of transmitter through Ethernet port.
- with pre-distortion correction function, dual-exciters switch automatically.
- power amplifier with overload, overheating and over excitation alarm function and automatic protection function.
- all protection and loop settings are controlled by software, convenient and fast
- noise is better than 65dBA.
- block design, convenient transportation and installation.
- whole machine is of air cooling
- the whole machine adopts anti-corrosion materials to adapt to different operating environment
- small landing area, compact structure, easy to install and put.
- can be conveniently configured into a cabinet of multiple machines.
- simple and compact structure.
- support DTMB, DTMB-A, DVB-T/T2, ATSC standards (different software configurations required).
- adopting sixth generation LDMOS.
- remote control of transmitter through Ethernet port.
- with pre-distortion correction function, dual-exciters switch automatically.
- power amplifier with overload, overheating and over excitation alarm function and automatic protection function.
- all protection and loop settings are controlled by software, convenient and fast
- noise is better than 65dBA.
- block design, convenient transportation and installation.
- whole machine is of air cooling
- the whole machine adopts anti-corrosion materials to adapt to different operating environment
- small landing area, compact structure, easy to install and put.
- can be conveniently configured into a cabinet of multiple machines.
Technical Specifications
|
Working frequency:
|
UHF 13-48 channel arbitrary choice
|
|
Channel bandwidth:
|
8MHz
|
|
Output power:
|
200W
|
|
Output impedance:
|
50Ω
|
|
Output interface:
|
Φ40
|
|
Output load return lose:
|
Normal operation: -32dB, Allowed operation: -20dB
|
|
Power input level:
|
0dBm
|
|
Amplifier input impedance:
|
50Ω
|
|
Amplifier input interface:
|
L16
|
|
Useless transmission:
|
≤-60dB
|
|
Band fluctuations:
|
±0.5dB
|
|
Band shoulder:
|
better than 36dB
|
|
MER:
|
better than 30dB
|
Display after customer use
More products
Company profile
Exhibition
Certificate
Product packaging
FAQ
Q1
: What are the payment terms that you support?
A1
:Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
Q2:
What about the lead time?
A2
:Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
Q3:
How about the shipping?
A3
:When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
Q4
:How can I place an order?
A4
:(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
Q5
:Can you do OEM for us?
A5
:Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
Q6
:
How about the Warranty?
A6
:There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
For better understand of our products,we collect all possible problems for every order,hope it will help you.
Q1.
Are you the manufacturer or trading company?
A1. We are manufacturer of Radio & TV Broadcasting equipments.
Q2.
What these equipments used for?
A2. They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q3.
What equipment & solution your company can provide?
A3. We can do complete solution for FM Radio &tv station system, including the fm/tv transmitter, antennas and the feeder cables.
Q4.
How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.We need to know the Power and Frequency you need exactly.How long the distances do you want to cover in Radius?How height your Antenna can be installed?
Q5.
How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Around Environment.Then we can know the cover range of your station.
Q6.
Is the Frequency Adjustable?
A6. FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHF band.
Q7.
How to do installation of these equipments?
A7. If need,we can send our engineer to your country to do the installation, but you should pay the cost.We also can provide the technical support or do training for your engineer here in our company.
Q8.
How to operate these broadcasting equipments?
A8. We provide All-English user manual, we also can provide the technical support by wechat /whatsapp etc.
