Location: CA ,America
Time : 11/08/2016
Size : 8MW grid tie solar energy station
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
77*22.3mm
-
Panel Efficiency:
-
17.51%
-
Type:
-
PREC
-
Name:
-

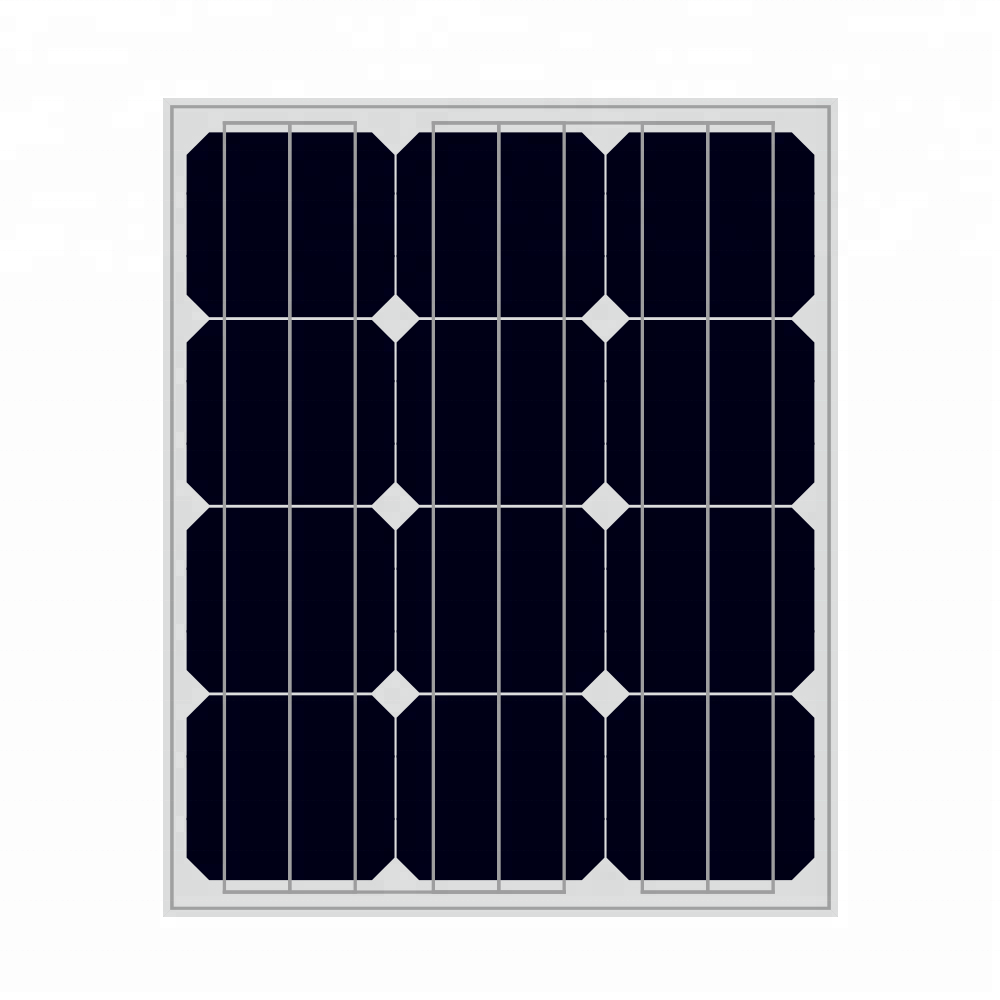

6v 5w solar panel
-
Material:
-
Monocrystalline silicon
-
Solar cell:
-
Mono Solar Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
Warranty:
-
25 Years Output Power Guarantee
-
OEM:
-
Acceptable
-
Application:
-
Portable Solar Kit Solar Street Light
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM6-36
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
77*22.3mm
-
Panel Efficiency:
-
17.51%
-
Type:
-
PREC
-
Name:
-
6v 5w solar panel
-
Material:
-
Monocrystalline silicon
-
Solar cell:
-
Mono Solar Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
Warranty:
-
25 Years Output Power Guarantee
-
OEM:
-
Acceptable
-
Application:
-
Portable Solar Kit Solar Street Light
Product Description
|
Model
|
GSM10-36
|
GSM20-36
|
GSM30-36
|
GSM40-36
|
|||
|
Peak Power Watts(Pmax/W)
|
10
|
20
|
30
|
40
|
|||
|
Power Output Tolerance[W]
|
0~+3%
|
|
|
|
|||
|
Maximum Power Voltage(Vmp)[V]
|
18.1
|
18.1
|
18.4
|
18.6
|
|||
|
Open Circuit Voltage(Voc) [V]
|
22.1
|
22.1
|
22.6
|
22.8
|
|||
|
Maximum Power Current(Imp) [A]
|
0.55
|
1.10
|
1.63
|
2.15
|
|||
|
Short Circuit Current(Isc) [A]
|
0.60
|
1.19
|
1.76
|
2.32
|
|||
|
Module Dimenstion(mm)
|
496*190*25
|
496*350*25
|
656*350*25
|
425*665*30
|
|||
|
Module Weight(kg)
|
1.2
|
2.0
|
2.5
|
3.4
|
|||
|
Model
|
GSM50-36
|
GSM60-36
|
GSM70-36
|
GSM80-36
|
|||
|
Peak Power Watts(Pmax/W)
|
50
|
60
|
70
|
80
|
|||
|
Power Output Tolerance[W]
|
0~+3%
|
|
|
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
18.6
|
18.6
|
18.6
|
18.6
|
|||
|
Open Circuit Voltage(Voc) [V]
|
22.8
|
22.8
|
22.8
|
22.8
|
|||
|
Maximum Power Current(Imp) [A]
|
2.69
|
3.23
|
3.76
|
4.3
|
|||
|
Short Circuit Current(Isc) [A]
|
2.9
|
3.48
|
4.06
|
4.65
|
|||
|
|
500*665*30
|
600*665*30
|
650*665*30
|
770*665*30
|
|||
|
Module Weight(kg)
|
4.0
|
4.8
|
5.2
|
5.7
|
|||
|
Model
|
GSM90-36
|
GSM100-36
|
GSM110-36
|
GSM120-36
|
|||
|
Peak Power Watts(Pmax/W)
|
90
|
100
|
110
|
120
|
|||
|
Power Output Tolerance[W]
|
0~+3%
|
|
|
|
|||
|
Maximum Power Voltage(Vmp) [V]
|
18.4
|
18.4
|
18.6
|
18.6
|
|||
|
Open Circuit Voltage(Voc) [V]
|
22.6
|
22.6
|
22.8
|
22.8
|
|||
|
Maximum Power Current(Imp) [A]
|
4.89
|
5.43
|
5.91
|
6.45
|
|||
|
Short Circuit Current(Isc) [A]
|
5.28
|
5.87
|
6.39
|
6.97
|
|||
|
Module Dimensition(mm)
|
870*665*30
|
1000*665*30
|
1000*665*30
|
1120*665*30
|
|||
|
Module Weight(kg)
|
6.5
|
7.5
|
7.5
|
8.4
|
|||
Details Images
Solar Cells
156*156mm and Anti PID
High Efficiency PV Cells, more than 22% efficiency
Glass
Anti-reflective glass
Service life is as long as 25 years (30 years optional)
Frame
Conventional frame
Silver or black frames are optional
Junc tIon box
IP67 protection level
Quality diode ensures module running safety
Project
Location: Cape ,South Africa
Time : 07/03/2013
Size : 60kw home grid tie solar energy system
Location: Japan
Time : 22/08/2015
Size : 500kw grid tie solar energy station
Package & Delivery
|
By Express
|
TNT, UPS, DHL, FEDEX , Door to Door Service
|
|
|
||
|
By Air
|
Any Cargo Airport in China
|
|
|
||
|
By Sea
|
Any available in China, such as Shanghai and Ningbo
|
|
|
||
