Quick Details
-
Voltage:
-
380V
-
Power:
-
1.1kw~60kw
-
Dimension(L*W*H):
-
2300*2200*2000mm
-
Key Selling Points:
-
Multifunctional, easy to operate, high feedback.
-
Name:
-
drying oven
-
Material:
-
304 Stainless Steel
-
Function:
-
Hot circulation heating to dry the fruit, tea, flowers, seafood, etc.
-
Package:
-
Wrapped in membrane and packed in export wooden case
-
Heating method:
-
Steam/ Electric
-
Capacity:
-
50~400kg/ batch
-
Temperature range:
-
50~350 degree centigrade
-
Drying Oven Application:
-
Fruit, tea, farm food, seafood, etc.
-
Trolleys Number:
-
1~8 pcs
-
Weight:
-
1100~2400kg
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WELLY
-
Voltage:
-
380V
-
Power:
-
1.1kw~60kw
-
Dimension(L*W*H):
-
2300*2200*2000mm
-
Key Selling Points:
-
Multifunctional, easy to operate, high feedback.
-
Name:
-
drying oven
-
Material:
-
304 Stainless Steel
-
Function:
-
Hot circulation heating to dry the fruit, tea, flowers, seafood, etc.
-
Package:
-
Wrapped in membrane and packed in export wooden case
-
Heating method:
-
Steam/ Electric
-
Capacity:
-
50~400kg/ batch
-
Temperature range:
-
50~350 degree centigrade
-
Drying Oven Application:
-
Fruit, tea, farm food, seafood, etc.
-
Trolleys Number:
-
1~8 pcs
-
Weight:
-
1100~2400kg

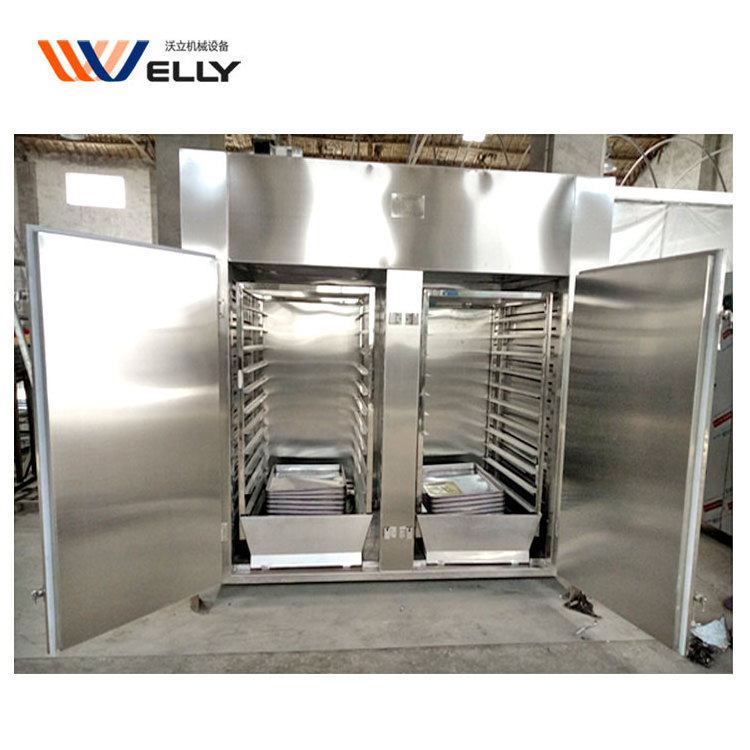

Drying oven/ drying oven electric motors/ industrial drying machine
I. Brief Description
♥ Th e drying oven machine is suitable to dry food materials, pharmacy materials, agriculture and sideline products, industry materials, and so on.
♥ This hot air circulation oven is equipped with low noise & thermostability axial flow fan and automatic temperature control system, the whole circulatory system is whole sealing, these let the drying oven ’ s heat efficiency from the traditional 3-7% increase to 4 5%- 65 % , the highest thermal efficiency can reach 80% .
♥ This machine adopts forced ventilation action, there are adjustable hot-blast air distributing plate in the drying oven which can make the materials to dry uniformity.
♥ The heat source can use steam, hot water, electric, far infrared, wide selection.
♥ This machine adopts whole stainless steel materials, with high quality and long service life.
♥ Widely used, simple operation, stable running, good performance .
| Technical Parameters | ||||||
| Model | Capacity | Power | Steam consumption | Quantity of trolleys&trays | Machine size | Machine Weight |
| WYCT-C0 | 50kg/batch | 0.5kw(steam heating) | 10kg/hr | 1 trolley&24 trays | 1200*1200*2000mm | 500kg |
| 12kw(electric heating) | / | |||||
| WYCT-CI | 100kg/batch | 1.1kw(steam heating) | 20kg/h | 2 trolleys&48 trays | 2300*1200*2000mm | 800kg |
| 15kw(electric heating) | / | |||||
| WYCT-CII | 200kg/batch | 1.1kw(steam heating) | 40kg/h | 4 trolleys&96 trays | 2300*2200*2000mm | 1200kg |
| 30kw(electric heating) | / | |||||
| WYCT-CIII | 300kg/batch | 2.2kw(steam heating) | 60kg/h | 6 trolleys&144 trays | 3430*2200*2000mm | 1500kg |
| 45kw(electric heating) | / | |||||
| WYCT-IV | 400kg/batch | 2.2kw(steam heating) | 80kg/h | 8 trolleys&192 trays | 4460*2200*2290mm | 2000kg |
| 60kw(electric heating) | / | |||||
II. Machine details
III. Machines Display
IV. Application Range
