Relying on our experience for over 26 years in lighting fitting production management and economic strength, we produce both a full variety of new energy-saving lighting fittings , connector and terminals, and solar energy PV module connectors. Our annual output of lighting fittings is over 80,000,000 pieces with product certifications of CQC, UL, VDE, CE, CSA and RoHS.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TOP
-
Model Number:
-
CD-100/3MP, CD-100/3FP
-
Color:
-
Black
-
Product name:
-
Electric Pluggable Connector quick connectors and terminals
-
Keywords:
-
quick connectors and terminals
-
MOQ:
-
1000pcs
Quick Details
-
Type:
-
connector
-
Application:
-
Automotive
-
Gender:
-
male&female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TOP
-
Model Number:
-
CD-100/3MP, CD-100/3FP
-
Color:
-
Black
-
Product name:
-
Electric Pluggable Connector quick connectors and terminals
-
Keywords:
-
quick connectors and terminals
-
MOQ:
-
1000pcs
Product Description

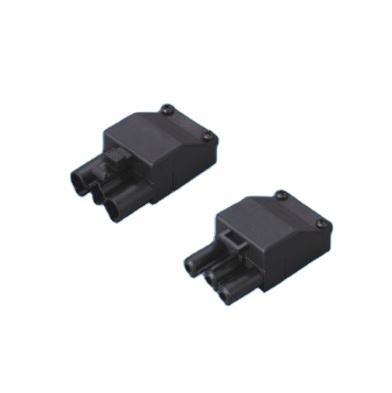

TOP Hengda Connector and terminals
Specification
|
Item
|
CD-100/3MP CD-100/3FP
|
|
Place of Origin
|
Ningbo,China
|
|
Voltage
|
250V/400V, 16A
|
|
Brand Name
|
TOP
|
|
Material
|
With PA body,and brass contacts,With nickel plated
|
|
Style
|
Push in
|
|
Certification
|
TUV
|
|
Color
|
Black
|
Detail information
CD-100/3MP CD-100/3FP -With strain relief and locking piece is separated -Without marking
-With PA body,and brass contacts
- With nickel plated
- Plug 18.5g,Socket 19.5g
-housing: Polyamide 66(94-V2 grade)
Metal Parts:Tin-plated Brass
Ambient Temperature: T110oC
Wiring Capacity:0.75-2.5mm2
Voltage/Ampere Rating: 250V / 400V 16A
Ready to fit, with strain relief
For cross section 0.75 – 2.5 mm², solid and flexible wires can be connected without end sleeves
For cable outer diameters 6.5 – 10.5 mm (H05VV-F 3G0.75mm2 to 2.5mm2)
Outer sheath stripped length 31 mm
insulation stripped length: 7 mm
Colour black
*For fitting to 3-cord Round Cable
-With PA body,and brass contacts
- With nickel plated
- Plug 18.5g,Socket 19.5g
-housing: Polyamide 66(94-V2 grade)
Metal Parts:Tin-plated Brass
Ambient Temperature: T110oC
Wiring Capacity:0.75-2.5mm2
Voltage/Ampere Rating: 250V / 400V 16A
Ready to fit, with strain relief
For cross section 0.75 – 2.5 mm², solid and flexible wires can be connected without end sleeves
For cable outer diameters 6.5 – 10.5 mm (H05VV-F 3G0.75mm2 to 2.5mm2)
Outer sheath stripped length 31 mm
insulation stripped length: 7 mm
Colour black
*For fitting to 3-cord Round Cable
