Quick Details
-
Weight:
-
300 KG
-
Power:
-
1.5kw
-
Material of Pipe:
-
PTFE
-
Voltage:
-
380V 3 -380V/50HZ
-
Carrier RPM:
-
30rpm(max)
-
Traction RPM:
-
0.25-1.2rpm
-
Take up reel:
-
Charge for take up reel
-
Hose OD:
-
≤64mm
-
Carrier Qty:
-
16 24 36 48 64pcs
-
Certifications:
-
CE ISO
Quick Details
-
Type:
-
Dobby Weaving Machine
-
Application:
-
wire ,cable,car,engineer
-
Place of Origin:
-
China
-
Weight:
-
300 KG
-
Power:
-
1.5kw
-
Material of Pipe:
-
PTFE
-
Voltage:
-
380V 3 -380V/50HZ
-
Carrier RPM:
-
30rpm(max)
-
Traction RPM:
-
0.25-1.2rpm
-
Take up reel:
-
Charge for take up reel
-
Hose OD:
-
≤64mm
-
Carrier Qty:
-
16 24 36 48 64pcs
-
Certifications:
-
CE ISO

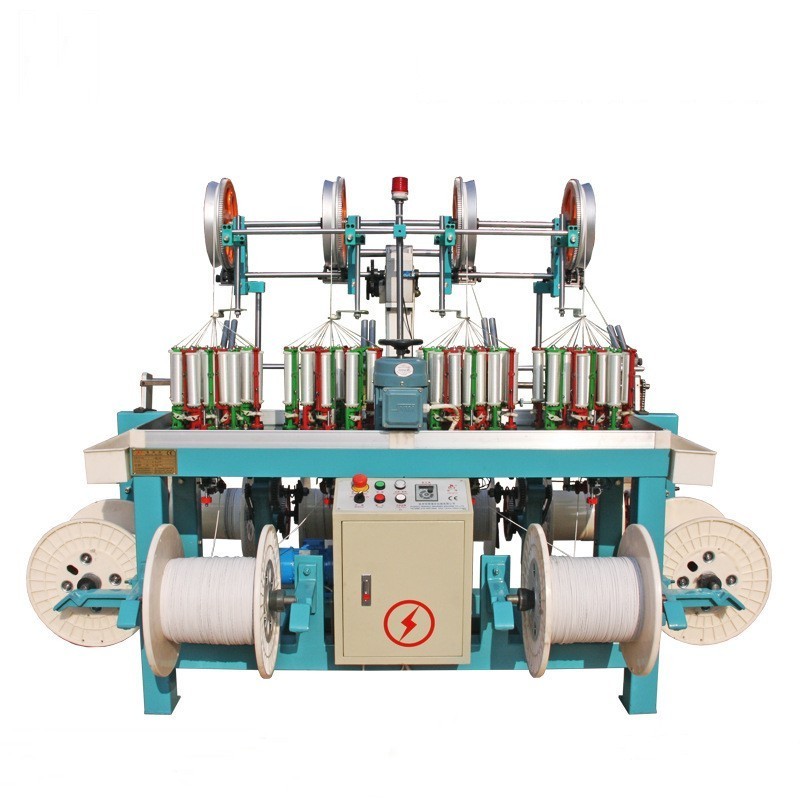

Main Feature
*
Cable & wire machine manufacturer.
*
80,90,110,160,224 pitch size
*
12,16,24,32,36,48,56 carriers
*
1,2,4 heads
Product Description
* High degree of automation: automatic shutdown when broken wire, Wireless spool, without rubber hose
* The braiding traction adopts stepless speed regulation,the braiding angle (pitch) adjustment is convenient and correct.
* High production efficiency: the output per hour is more than three times of the current commonly used models. The maximum output is 98 meters/hour.
* Low noise: the transmission system uses suction, shock absorption and embedded devices to reduce noise.
* Convenient maintenance, flexible transmission, easy assembly and disassembly of structure.
* The spindle adopts elastic adjustable device, which ensures reliable positioning and convenient and flexible loading and
unloading of spool.
* The whole machine has small abrasion and long service life. The key parts are heat treated with high-quality materials and equipped with automatic lubrication device.
* The braiding traction adopts stepless speed regulation,the braiding angle (pitch) adjustment is convenient and correct.
* High production efficiency: the output per hour is more than three times of the current commonly used models. The maximum output is 98 meters/hour.
* Low noise: the transmission system uses suction, shock absorption and embedded devices to reduce noise.
* Convenient maintenance, flexible transmission, easy assembly and disassembly of structure.
* The spindle adopts elastic adjustable device, which ensures reliable positioning and convenient and flexible loading and
unloading of spool.
* The whole machine has small abrasion and long service life. The key parts are heat treated with high-quality materials and equipped with automatic lubrication device.
Specification
|
Model
|
carriers
|
Heads
|
Pitch size(mm)
|
motor Power（kw）
|
Max RPM
|
Bobbin sze(mm)
|
|
12-1-224
|
12
|
1
|
224
|
1.1
|
105
|
Φ86 x 206
|
|
16-4-80
|
16
|
4
|
80
|
0.55
|
350
|
Φ42 x 143
|
|
16-4-90
|
16
|
4
|
90
|
0.75
|
350
|
Φ47 x 139
|
|
16-2-110
|
16
|
2
|
110
|
0.75
|
230
|
Φ42 x 143
|
|
16-2-160
|
16
|
2
|
160
|
1.1
|
160
|
Φ65 x 152
|
|
16-1-224
|
16
|
1
|
224
|
1.1
|
105
|
Φ86 x 206
|
|
24-2-90
|
24
|
2
|
90
|
0.75
|
230
|
Φ43 x 86
|
|
24-2-110
|
24
|
2
|
110
|
1.1
|
230
|
Φ42 x 143
|
|
24-1-120
|
24
|
1
|
120
|
0.75
|
230
|
Φ63 x 200
|
|
24-1-160
|
24
|
1
|
160
|
1.1
|
160
|
Φ68 x 210
|
|
32-1-110
|
32
|
1
|
110
|
1.1
|
230
|
Φ56 x 93
|
|
32-2-90
|
32
|
2
|
90
|
0.75
|
230
|
Φ43 x 86
|
|
36-2-90
|
36
|
2
|
90
|
1.1
|
230
|
Φ43 x 86
|
|
48-1-110
|
48
|
1
|
110
|
0.75
|
230
|
Φ43 x 86
|
|
48-1-120
|
48
|
1
|
120
|
1.5
|
230
|
Φ63 x 200
|
|
48-1-160
|
48
|
l
|
160
|
2.2
|
160
|
Φ68 x 210
|
|
48-1-224
|
48
|
1
|
224
|
3
|
105
|
Φ86 x 206
|
|
56-1-110
|
56
|
1
|
110
|
1.5
|
230
|
Φ42 x 143
|
