Machine Name:
-

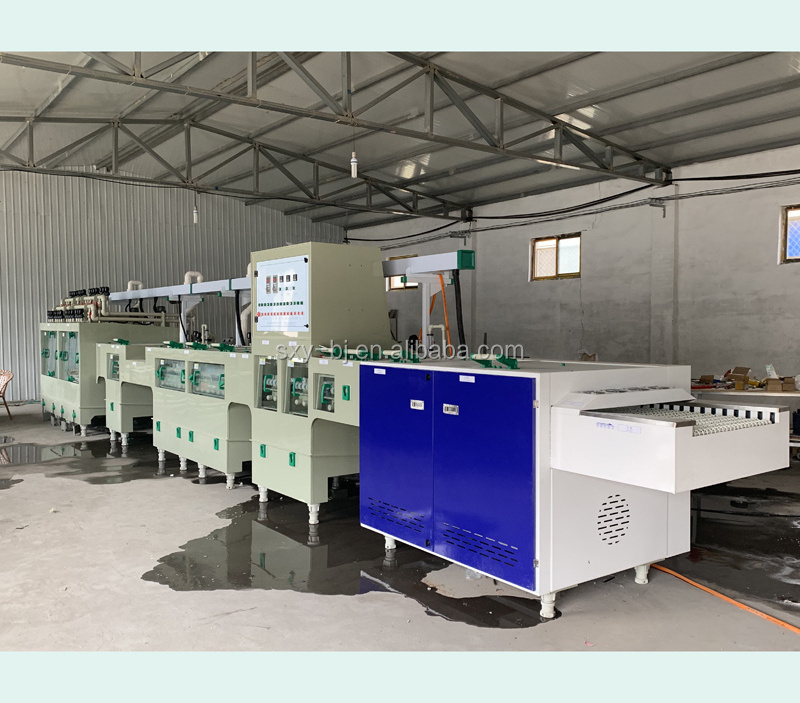

Automatic PCB Etching Machine / PCB Circuit Board making machines
-
Etching Effective Width:
-
700mm width
-
Etching Area:
-
double spraying with oscillation
-
Function:
-
dry film etching + film stripper
-
machine material:
-
PP plate,resist high temperature
-
heater:
-
titanium heating pipe
-
cooling system:
-
titanium pipe coil
-
Application:
-
Aluminum PCB / FR4 PCB
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SXY
-
Model Number:
-
SK700-2
-
Machine Name:
-
Automatic PCB Etching Machine / PCB Circuit Board making machines
-
Etching Effective Width:
-
700mm width
-
Etching Area:
-
double spraying with oscillation
-
Function:
-
dry film etching + film stripper
-
machine material:
-
PP plate,resist high temperature
-
heater:
-
titanium heating pipe
-
cooling system:
-
titanium pipe coil
-
Application:
-
Aluminum PCB / FR4 PCB
Product Description
Automatic PCB Etching Machine / PCB Circuit Board making machines
This automatic PCB etching machine is suitable for making circuit board,like aluminum PCB, FR-4 board.
The surface of the copper-clad plate is chemically etched to remove the unwanted copper conductor to form a circuit pattern.
|
PCB Etching Machine Advantage:
|
|
|
|
|
||||
|
1.Transparent glass is used in the upper cover and side window of the machine to facilitate the observation of the spraying situation and the conveying of the workpiece.
|
|
|
|
|
||||
|
2.The etching section adopt the horizontal swing spraying system, quick-detachable nozzle, convenient maintenance and repair.
|
|
|
|
|
||||
|
3.The etching solution is filtered by multiple stages, which can effectively prevent the nozzle from blocking.
|
|
|
|
|
||||
|
4. The washing section adopts cascade washing structure, which can greatly reduce the consumption of fresh water.
|
|
|
|
|
||||
|
5. The machine adopts dc speed regulation, digital display, stable operation and simple operation of centralized electric control box.
|
|
|
|
|
||||
|
PCB Etching Machine Details:
|
|
|
|
|||
|
Machine Model
|
|
SK700-2
|
|
|||
|
Machine Power
|
|
380V/50Hz/60Hz
|
|
|||
|
Working width
|
|
700mm
|
|
|||
|
Plate Thickness
|
|
0.05~3.2mm
|
|
|||
|
Transmission Speed
|
|
0~6 M/Min (adjust)
|
|
|||
|
|
|
size: 700mm W x 2000mm L
pump: 4KW motor x 2sets
double etching with oscillation
heater: titanium -- 6KW
cooling : titanium pipe
nozzle: Fan-nozzles
|
|
|||
|
Rinse area
|
|
700x1200mm
double side spraying
|
|
|||
|
|
|
size: 700mm W x 2000mm L
pump: 4KW motor x 2sets
double etching spray sytem
heater: titanium pipe cooling : titanium pipe nozzle: Fan-nozzles |
|
|||
|
Machine Material
|
|
PP plate, resist high temperature
|
|
|||
|
Machine Size
|
|
10500x1600x1750mm
|
|
|||
|
Protection Function
|
|
1. Temperature Control System
2. Pressure Control System 3. Double Filter System 4. Conveyor Control System |
|
|||
