* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM500
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2185*1098*35mm
-
Name:
-

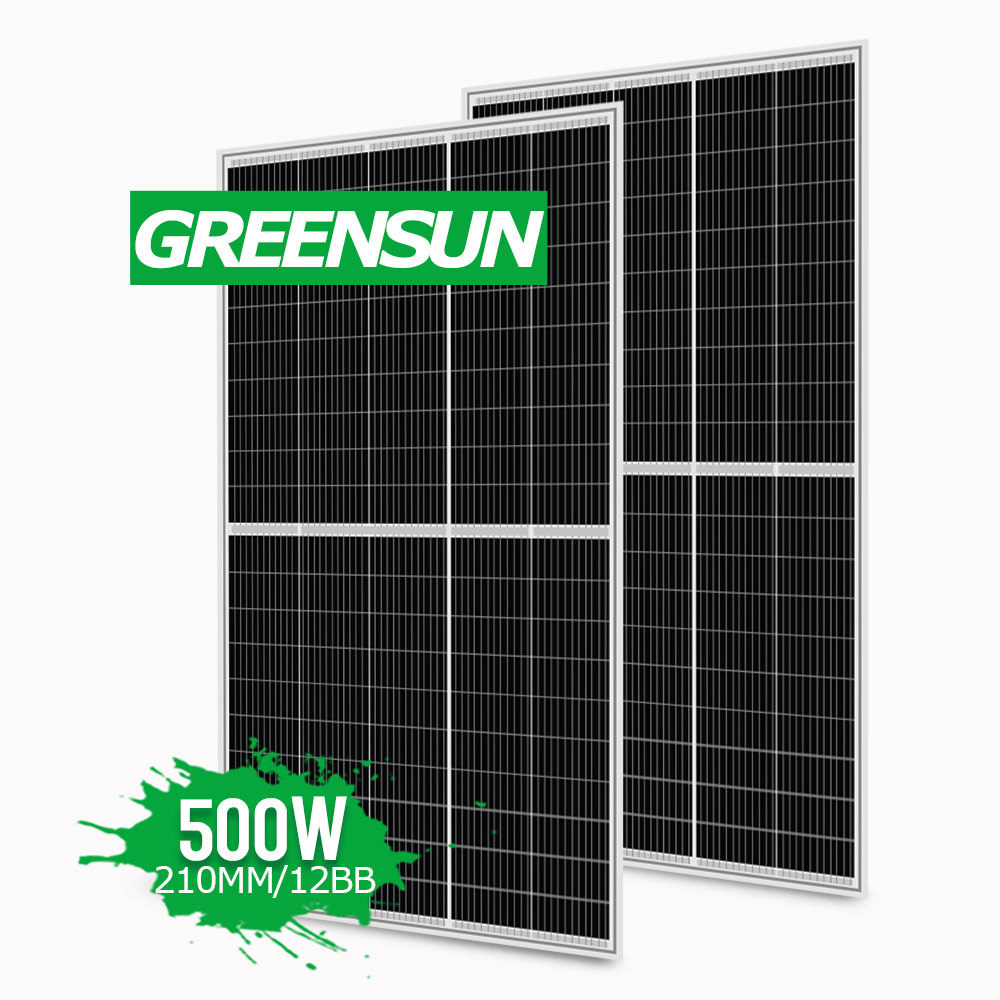

Solar Panels 48V 500W
-
Material:
-
Monocrystalline silicon
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
TUV CE, CE TUV
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
Half Cell, Bifacial, All Black, HJT, N-TYPE, TOPCON, BIPV
-
Panel Efficiency:
-
21.7%
-
Warranty:
-
25 YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM500
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2185*1098*35mm
-
Name:
-
Solar Panels 48V 500W
-
Material:
-
Monocrystalline silicon
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP67 Rated Waterproof
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
TUV CE, CE TUV
Product Description
|
Model
|
GSM500
|
GSM510
|
GSM520
|
||
|
Rated Maximum Power(Pmax) [W]
|
500
|
510
|
520
|
||
|
Open Circuit Voltage(Voc) [V]
|
34.5
|
34.9
|
35.3
|
||
|
Maximum Power Voltage(Vmp) [V]
|
48.63
|
48.81
|
48.96
|
||
|
Short Circuit Current(Isc) [A]
|
10.87A
|
10.99A
|
11.11A
|
||
|
Maximum Power Current(Imp) [A]
|
10.28A
|
10.47A
|
10.63A
|
||
|
Module Efficiency [%]
|
19.51
|
19.9
|
20.23
|
||
|
Power Tolerance
|
0~+3W
|
|
|
||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.052%/℃
|
|
|
||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.290%/℃
|
|
|
||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.390%/℃
|
|
|
||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|
|
||
Grade A Materials
Tempered Glass
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And
Protect Cells From Vibration With Longer Durability
Solar Cells
* A Grade Trina Solar Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
Outstanding sealabilityConnector
* 4mm2 Qualified cable with
Connector
* 500N Tensile Strength
Packing & Transport
5 or 7 layers Corrugated Cartons , reinforced wooden box with pallet.
All-round protection your products during transportation.
Make sure all solar panels safety .
|
Container(
60Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
30
|
30
|
30
|
|
PCS/Container
|
400
|
840
|
924
|
|
Container(
72Cells
solar panel)
|
20'GP
|
40'GP
|
40'HC
|
|
PCS/Pallet
|
27
|
27
|
27
|
|
PCS/Container
|
270
|
648
|
696
|
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment & Warranty
Payment:
T/T(Telegraphic Transfer), Western Union, L/C at sight, Paypal, Credit Card and on-line payment.
Alibaba Trade Assurance Payment, which can offer 100% protection for you until you receive your products.
More info about it please click the below picture:
Products Warranty:
We offer perfect warranty to all of our customers and offer best after-sales service.
During warranty period, if any problem with our product self, we will replace with new one to you or repair it for you.
