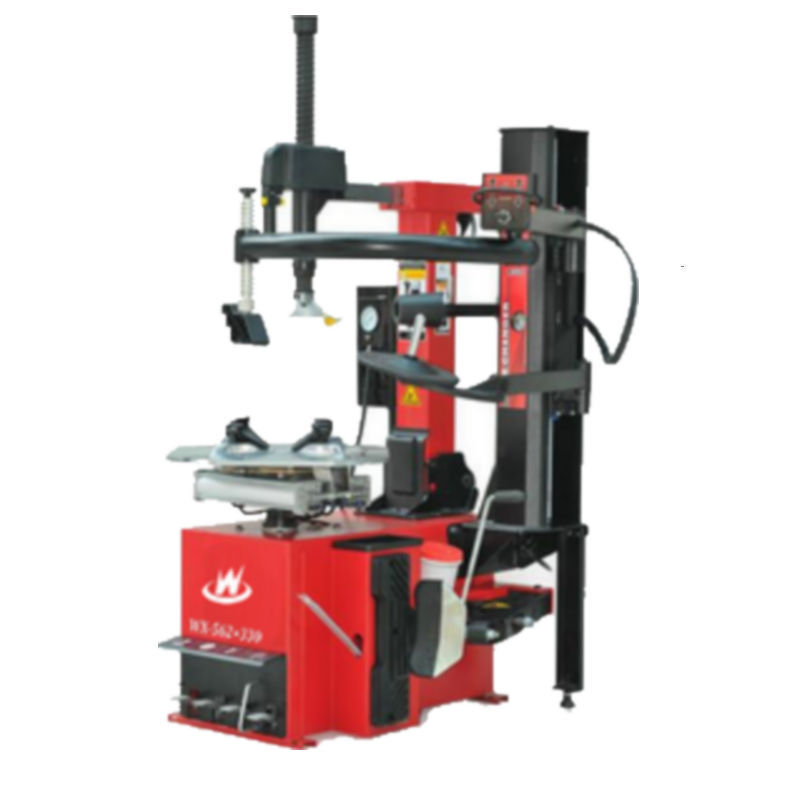

Swing Arm Tire Changer ,Tire Changer with Help Arm ,Car Tyre Changer WX-562+330
Swing Arm Tire Changer ,Tire Changer with Help Arm ,Car Tyre Changer WX-562+330
Swing Arm Tire Changer ,Tire Changer with Help Arm ,Car Tyre Changer WX-562+330
Swing Arm Tire Changer ,Tire Changer with Help Arm ,Car Tyre Changer WX-562+330

Swing Arm Tire Changer ,Tire Changer with Help Arm ,Car Tyre Changer WX-562+330

FOB Reference Price: Get Latest Price
≥1 Sets
US $200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Certification:
CE / ISO9001
Name:
Swing Arm Tire Changer
Price:
Factroy
Package:
Wooden Case
Delivery time:
10 days
Product:
2015 Hot
Item Name:
CE Tire Changer
NOISE LEVEL:
65dB

Quick Details

Place of Origin:
Henan, China
Warranty:
1 Years, 1 Years
Color:
Customized
Certification:
CE / ISO9001
Name:
Swing Arm Tire Changer
Price:
Factroy
Package:
Wooden Case
Delivery time:
10 days
Product:
2015 Hot
Item Name:
CE Tire Changer
NOISE LEVEL:
65dB

Swing Arm Tire Changer ,Tire Changer with Help Arm ,Car Tyre Changer WX-562+330

Product Description

Tire Changer WX-562+330  Details Features:

Model

WX-562+330

Power  supply

110V/220V/380V

Motor power

1.0kw/1.5kw

Max rotation torque of turntable

1100N,m

Rim clamping from outside

10"-22"

Rim clamping from inside

12"-24"

Maximum wheel diameter

1040mm

Maximum wheel width

3"-15"

Operating pressure

8-10bar

Net weight

298kg

Gross weight

280 kg

Package Size

1:1130mmX880mmX910mm

2:1270mmX530mmX420mm

20FT Container can be lading Quantity 23 pcs
40HQ Container Can be Lading Quantity 46 Pcs

Application range:


Applicable for changing and inflating car tyres whose rim diameter is between 10”-26”.
Remarks:the marked rim diameter size is the actual size of opening and gripping of new type jaws.


Product features:


This tyre changer can go backwards automatically and it is equipped with assisting device of automatic  swinging arm,penumatical locking device and automaitc dismounting hook device.


Machine functions:


1.The column going backwards penumatically,penumatic push-pull locking automaically.


2.Lifting tyre up function makes operation easy and quick.


3.Central pressing tyre function makes jaws grip rim fastly.


4.Replaceable swinging arm pressing head can fix position automatically.


5.Adjusting mobile slider to be suitable for different rim ranges.


6.The motion structure of the four automatic alignment gripping jaws on the turnplate is link mechanism, which has synchronizing function and fix center automatically when gripping from outside to inside.


7.The once forming mobile slider and the design of processing machinery structure made it not easy to deformation.


8.The working head is plated hard chrome on the surface through high frequency sudden fire, this kind of treating processes insure the intensity, toughness and abrasive resistance.


9.the round working turnplate has synchronous centering and fine adjustment function which make the operating of tyre changer more easy and smooth.


10.The tools touching rim directly like changing working head,jaws,crwobar and spade are all equipped with protector,these protectors ensure no hurt to the rim.


11.It has good personal presentation,thick steel plate and super strong rigidness.


Machine quality:
This product gained Europe CE certification.
