Quick Details
-
Color:
-
Gas Station, Red
-
Panel Size:
-
8-72inch, 8-72inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GL-8.889
-
Specification:
-
No specification
-
HS Code:
-
8531200000
-
Resolution:
-
150w
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
Red
-
Pixels:
-
10mm
-
Screen Dimension:
-
8-32inch
-
LED chip:
-
Epistar led trffic chip
-
Brightness:
-
5000cd/sqm
-
waterproof level:
-
IP65
-
working temperature:
-
-20-60°
-
viewing angle:
-
120 Degrees
Quick Details
-
Application:
-
Outdoor, Gas Station
-
Type:
-
LED
-
Brand Name:
-
Glare-LED
-
Color:
-
Gas Station, Red
-
Panel Size:
-
8-72inch, 8-72inch
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GL-8.889
-
Specification:
-
No specification
-
HS Code:
-
8531200000
-
Resolution:
-
150w
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
Red
-
Pixels:
-
10mm
-
Screen Dimension:
-
8-32inch
-
LED chip:
-
Epistar led trffic chip
-
Brightness:
-
5000cd/sqm
-
waterproof level:
-
IP65
-
working temperature:
-
-20-60°
-
viewing angle:
-
120 Degrees

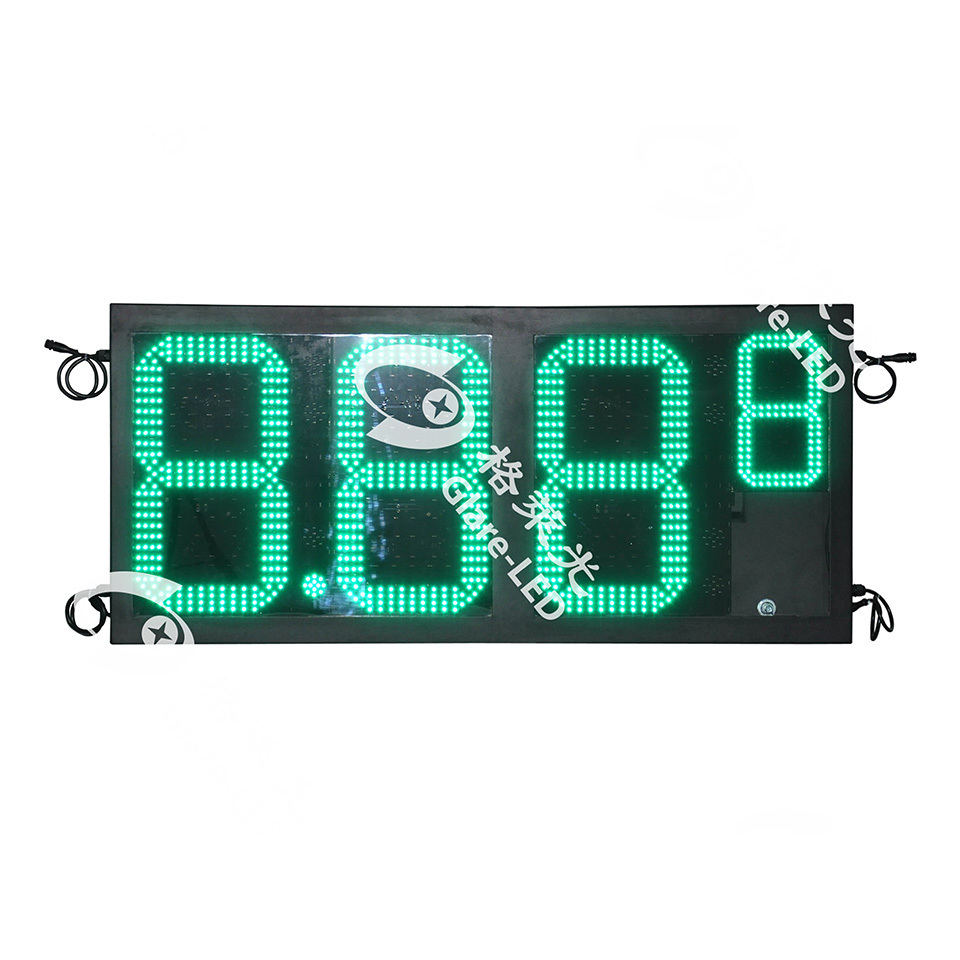

waterproof IP65 24 inch 8.889 Led Gas Price Signen
Product Description
Gas station 7 segment digital LEDtechnical specifications
| Item | Technical Specifications |
| Color | Red, amber, green, blue or white optional. |
| Digital Height | 6'', 8'', 10'', 12'', 16'', 18'', 20'', 24'', 27'', 32'', 36'', 40'', 48'', 60'', 73'' etc. |
| Digital Design | 6'', 8'', 10'', 12'', 16'', 18'', 20'', 24'', 27'', 32'': standard digit. |
| Brightness Control | Auto-dimming by sensor or remote control. |
| Display Dimming | Over 8 levels of automatic intensity adjustment. |
| Viewing Angle | 120(H)/40(V) |
| Maintenance | front side or back side |
| Master/ Slave | Single/ Double/ Three/ Four sides, use one control card, all working. Or customized. |
| Casing Material | Steel, Aluminum available. |
| Front Cover | Displays with 32'' & over digit high are without front cover; Others with front cover. |
| Waterproof Level | IP 54 from 4'' to 32'' Outdoor, IP 65 front & IP 54 rear from 32'' to 72'' Outdoor. |
| Temperature Sensor | Default economical sensor, All sensor is available for more exact request. |
| LED Driving mode | Constant Current |
| Power Input | 110/220VAC, 60Hz/50Hz |
| PC Communication | Available in RF/LCD/RS232/TCP/IP |
| Communication | 8m |
| Remote control type | 300ft/ 100m, range of RF remote control. |
| Continuous Working Time | Unlimited |
| Lifetime of LEDs | >100,000hours |
| Installation Method | Hanging, mounting or per custom design |
| Working Temperature | Indoor: -11 ℃~40 ℃, Outdoor: -20 ℃~60 ℃, Humidity:15%~95%RH |
| Display Format | 8.88,8.888, 8.889, 8.88 9/10 etc |
| Name | pcb board petrol gas station led numeric display |
Project pictures of Gas station 7 segment digital LED
Real pictures of gas station 7 segment digital LED
pcb
Cabinet
Control box
RF and LCD remote controller
Gas station 7 segment digital LED mass order in production:
Packaging & Shipping
Gas station 7 segment digital LED packing detail:
Packing: wooden box
Inside with the foam cotton
Delivery: 3~5working days ater payment( with regular size)
waraanty:1 year
