Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKYLAB
-
Supplier Type:
-
Plant
-
Model:
-
VDU2508J
-
positioning accuracy:
-
<30cm
-
frequency:
-
3774~4243.2MHz
-
Operating temperature:
-
-30℃~70℃
-
storage temperature:
-
-40℃~85℃
-
Wireless Protocol:
-
IEEE802.15.4-2011 UWB
-
style:
-
IP66 waterproof
-
Recommended base station layout interval:
-
<50m
-
Size:
-
236.4mm*153.7mm*74.0mm
Quick Details
-
Chipset:
-
DW1000
-
Application:
-
Positioning and Navigation, Real-time positioning system/asset tracking
-
Model Number:
-
VDU2508J
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SKYLAB
-
Supplier Type:
-
Plant
-
Model:
-
VDU2508J
-
positioning accuracy:
-
<30cm
-
frequency:
-
3774~4243.2MHz
-
Operating temperature:
-
-30℃~70℃
-
storage temperature:
-
-40℃~85℃
-
Wireless Protocol:
-
IEEE802.15.4-2011 UWB
-
style:
-
IP66 waterproof
-
Recommended base station layout interval:
-
<50m
-
Size:
-
236.4mm*153.7mm*74.0mm
Product Description

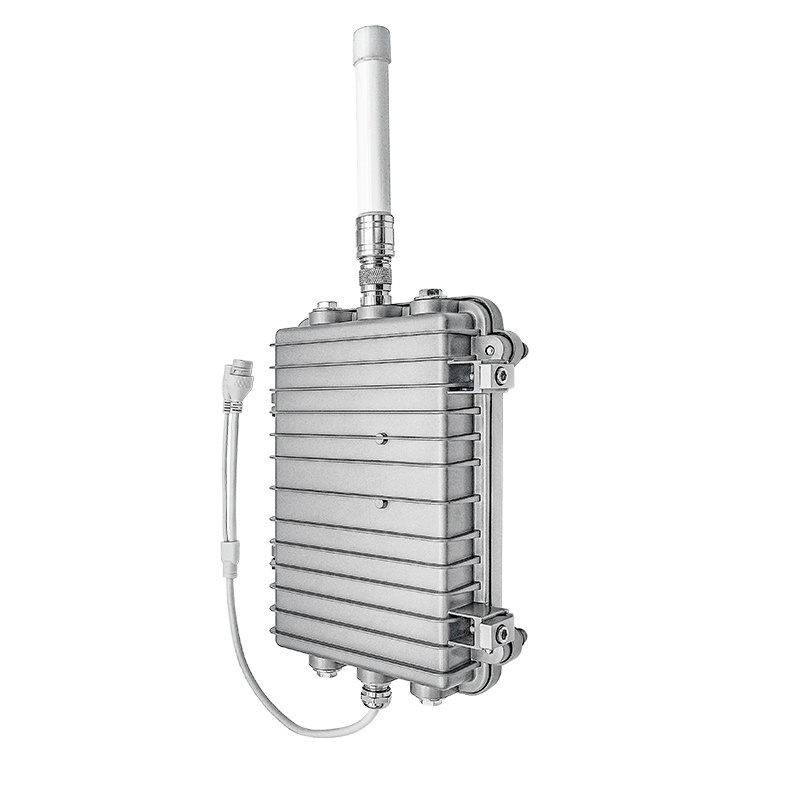

The UWB positioning base station
VDU2508J
is developed based on the DW1000 chip solution. It is suitable for high-precision
positioning outdoors/environments. The UWB positioning base station is equipped with a die-cast aluminum metal shell. It has an
IP66 waterproof and dustproof rating and can be used in various harsh outdoors.
▲ Positioning accuracy: VDU2508J positioning base station and UWB positioning tag are used together to achieve a positioning
accuracy of <30 cm. ▲ Positioning object: suitable for personnel positioning, material positioning, machine equipment positioning,
asset positioning management, vehicle positioning, etc. ▲ Positioning scenarios: power plants, prisons, factory parks, nursing
homes, warehouse material positioning, smart construction sites, etc. ▲ Data uplink + downlink: VDU2508 supports uplink and
downlink when transmitting data. It can receive the positioning information broadcast by uwb positioning tags. It can also send
commands to UWB tags to realize two-way alarm, electronic fence and other functions.
positioning outdoors/environments. The UWB positioning base station is equipped with a die-cast aluminum metal shell. It has an
IP66 waterproof and dustproof rating and can be used in various harsh outdoors.
▲ Positioning accuracy: VDU2508J positioning base station and UWB positioning tag are used together to achieve a positioning
accuracy of <30 cm. ▲ Positioning object: suitable for personnel positioning, material positioning, machine equipment positioning,
asset positioning management, vehicle positioning, etc. ▲ Positioning scenarios: power plants, prisons, factory parks, nursing
homes, warehouse material positioning, smart construction sites, etc. ▲ Data uplink + downlink: VDU2508 supports uplink and
downlink when transmitting data. It can receive the positioning information broadcast by uwb positioning tags. It can also send
commands to UWB tags to realize two-way alarm, electronic fence and other functions.
Specification
|
item
|
value
|
|
Model Number
|
VDU2508J
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
SKYLAB
|
|
Application
|
Positioning and Navigation
|
|
Model
|
VDU2508
|
|
positioning accuracy
|
<30cm
|
|
frequency
|
3774~4243.2MHz
|
|
Application
|
Real-time positioning system/asset tracking
|
|
Operating temperature
|
-30℃~70℃
|
|
storage temperature
|
-40℃~85℃
|
|
Wireless Protocol
|
IEEE802.15.4-2011 UWB
|
|
style
|
IP66 waterproof
|
|
Recommended base station layout interval
|
<50m
|
|
Size
|
236.4mm*153.7mm*74.0mm
|
