Quick Details
-
Brand Name:
-
Fibervision
-
Use:
-
FTTX Solution
-
Warranty Time:
-
2
-
Product name:
-
Optic Pigtails
-
Sturcture:
-
Bundle Pigtails
-
Fiber type:
-
Single Mode
-
Connector type:
-
SC LC FC ST
-
Polishing:
-
PC UPC APC
-
Feature:
-
Easy Assembly
-
Application:
-
Networking
-
Frequency:
-
1330-1550MHZ
-
Operate temperature:
-
-40-70℃
-
Warranty:
-
1Year
Quick Details
-
Type:
-
Fiber Pigtails
-
Model Number:
-
PGT2-12C-BH-Pgts-SC-UPC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fibervision
-
Use:
-
FTTX Solution
-
Warranty Time:
-
2
-
Product name:
-
Optic Pigtails
-
Sturcture:
-
Bundle Pigtails
-
Fiber type:
-
Single Mode
-
Connector type:
-
SC LC FC ST
-
Polishing:
-
PC UPC APC
-
Feature:
-
Easy Assembly
-
Application:
-
Networking
-
Frequency:
-
1330-1550MHZ
-
Operate temperature:
-
-40-70℃
-
Warranty:
-
1Year

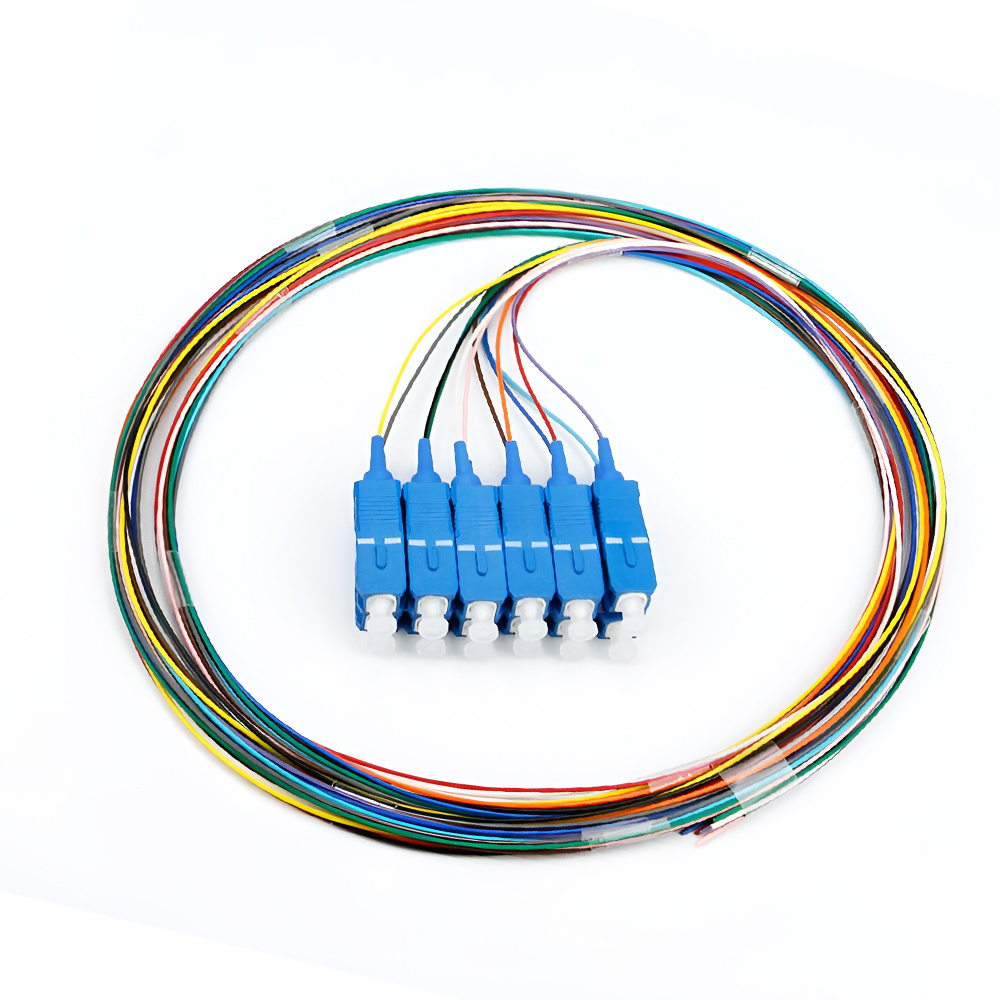

Bunchy Pigtails are high-quality optical fiber cables that are used to terminate, splice, and connect optical fibers in telecommunications, data centers, local area networks (LANs), and other optical network applications. These cables consist of multiple optical fibers bundled together with a jacket, with each fiber terminating in a connector on one end.
· High-quality optical fibers and connectors for reliable signal transmission
· Fanout design provides flexibility and easy connectivity.
· Low insertion loss and high return loss for optimal performance
· Available in a variety of fiber types, connector types, and cable lengths to fit any application.
· Custom jacket materials and cable diameters available upon request.
· Compliant with industry standards for quality and safety.
· Data Centers
· Telecommunications N etworks
· Industrial Networks
· Medical E quipment
· Military and Aerospace A pplications .
|
Parameters |
Standard & Parameters |
||
|
Fiber Type |
Singel-Mode (G.652D/G.657A1/G657A2) |
Multi-Mode (OM1/OM2/OM3/OM4/OM5) |
|
|
Jacket Materials |
LSZH /OFNR /PVC |
||
|
Connector Type |
FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/ |
||
|
Ferrule Materials |
Ceramic |
||
|
Testing Wavelengths |
1310±30nm, 1550±30nm |
850±30nm, 1300±30nm |
|
|
Insertion Loss (dB) (TIA/EIA-455-107) |
≤0.25dB |
≤0.3dB |
|
|
|
(PC/UPC/APC) |
(PC/UPC) |
|
|
Return Loss (dB) (TIA/EIA-455-107) |
≥50dB (PC/UPC) |
≥40dB (PC/UPC) |
|
|
|
≥60dB (APC) |
|
|
|
Exchangeability |
≤0.2dB |
||
|
Cable Assemblies |
Bunchy Pigtails |
||
|
Operating Temperature |
-20 ~ +70 ( ℃ ) |
||
|
Storage Temperature |
-40 ~ +85 ( ℃ ) |
||
|
All values specified are tested with connectors |
|||
