Quick Details
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
Customer's required
-
Application:
-
Building Construction
-
Length:
-
As require
-
Flange Width:
-
50-400mm As require
-
Flange Thickness:
-
8mm - 64mm As require
-
Web Width:
-
100mm~900mm
-
Web Thickness:
-
100mm~900mm
-
Brand Name:
-
Huihao
-
Model Number:
-
H-beam
-
Product name:
-
H-beam
-
Technical:
-
Hot Rolled Beam
-
Material:
-
Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR
-
Surface:
-
Plain, Black and Surface Treatment
-
Size:
-
Standard size and Customized Size
-
Shape:
-
C profile,U profile,Z profile,L profile,H profile
-
Samples:
-
Available
-
MOQ:
-
5 Tons
-
Certificate:
-
ISO9001
-
Package:
-
Standard Sea-worthy Packing
Quick Details
-
Grade:
-
Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR
-
Standard:
-
ASTM
-
Tolerance:
-
±1%
-
Invoicing:
-
by theoretical weight
-
Place of Origin:
-
Shandong, China
-
Thickness:
-
Customer's required
-
Application:
-
Building Construction
-
Length:
-
As require
-
Flange Width:
-
50-400mm As require
-
Flange Thickness:
-
8mm - 64mm As require
-
Web Width:
-
100mm~900mm
-
Web Thickness:
-
100mm~900mm
-
Brand Name:
-
Huihao
-
Model Number:
-
H-beam
-
Product name:
-
H-beam
-
Technical:
-
Hot Rolled Beam
-
Material:
-
Q235/Q345/ST37-2/ST52/Q420/Q460/S235JR/S275JR/S355JR
-
Surface:
-
Plain, Black and Surface Treatment
-
Size:
-
Standard size and Customized Size
-
Shape:
-
C profile,U profile,Z profile,L profile,H profile
-
Samples:
-
Available
-
MOQ:
-
5 Tons
-
Certificate:
-
ISO9001
-
Package:
-
Standard Sea-worthy Packing

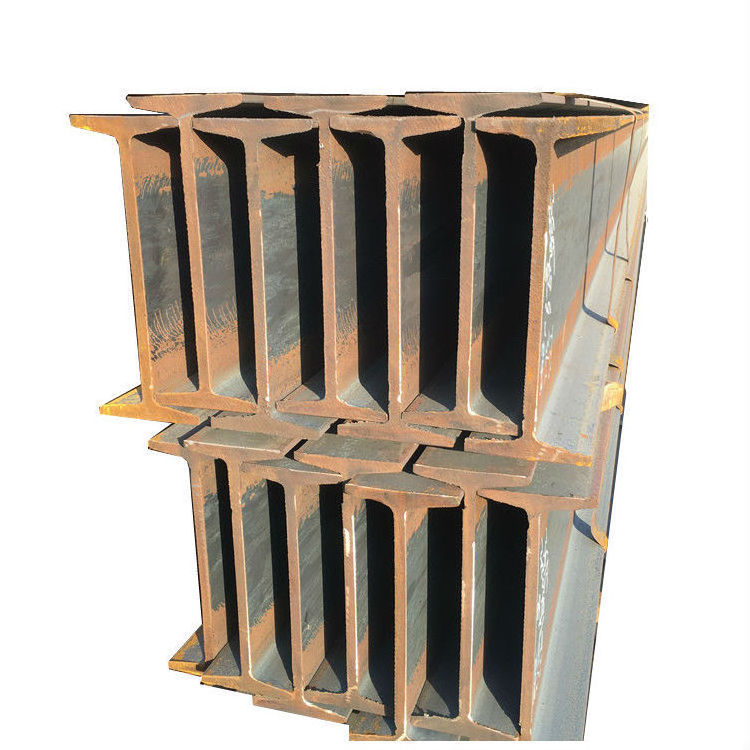

H-beam is a new type of economic construction steel. The section shape of H-shaped steel is economical and reasonable,and the mechanical properties are good. The points on the section during rolling are more uniform and the internal stress is small. Compared with ordinary i-beam, it has the advantages of large section modulus,light weight and metal saving.
Products Description
|
Product Name
|
H beam
|
|
Grade
|
Q235/Q345/S355/S235/SS400/ASTM36/Q235Bm,A-36,AS300B,S355J0,S450J0-T, S275JR
|
|
Flange Width
|
50-400mm As require
|
|
Flange Thickness
|
8mm - 64mm As require
|
|
Web Width
|
100mm~900mm
|
|
Web Thickness
|
5mm - 36.5mm
|
|
Surface treatment
|
Hot Dip Galvanised/Painting or Black
|
|
Application
|
Mechanical&manufacture,Steel Structure,Shipbuilding,Bridging,Automobile
Chassis |
Product Paramenters
|
H Beam Specification
|
|
|
|
|
|
|||||
|
size
|
w/m
|
size
|
w/m
|
size
|
w/m
|
|||||
|
100*50*5*7
|
9.54
|
250*255*14*14
|
82.2
|
400*400*13*21
|
172
|
|||||
|
100*100*6*8
|
17.2
|
294*200*8*12
|
57.3
|
400*408*21*21
|
197
|
|||||
|
125*60*6*8
|
13.3
|
300*150*6.5*9
|
37.3
|
414*405*18*28
|
233
|
|||||
|
125*125*6.5*9
|
23.8
|
294*302*12*12
|
85
|
440*300*11*18
|
124
|
|||||
|
148*100*6*9
|
21.4
|
300*300*10*15
|
94.5
|
446*199*7*11
|
66.7
|
|||||
|
150*75*5*7
|
14.3
|
300*305*15*15
|
106
|
450*200*9*14
|
76.5
|
|||||
|
150*150*7*10
|
31.9
|
338*351*13*13
|
106
|
482*300*11*15
|
115
|
|||||
|
175*90*5*8
|
18.2
|
340*250*9*14
|
79.7
|
488*300*11*18
|
129
|
|||||
|
175*175*7.5*11
|
40.3
|
344*354*16*16
|
131
|
496*199*9*14
|
79.5
|
|||||
|
194*150*6*9
|
31.2
|
346*174*6*9
|
41.8
|
500*200*10*16
|
89.6
|
|||||
|
198*99*4.5*7
|
18.5
|
350*175*7*11
|
50
|
582*300*12*17
|
137
|
|||||
|
200*100*5.5*8
|
21.7
|
344*348*10*16
|
115
|
588*300*12*20
|
151
|
|||||
|
200*200*8*12
|
50.5
|
350*350*12*19
|
137
|
596*199*10*15
|
95.1
|
|||||
|
200*204*12*12
|
72.28
|
388*402*15*15
|
141
|
600*200*11*17
|
106
|
|||||
|
244*175*7*11
|
44.1
|
390*300*10*16
|
107
|
700*300*13*24
|
185
|
|||||
|
244*252*11*11
|
64.4
|
394*398*11*18
|
147
|
792*300*14*22
|
191
|
|||||
|
248*124*5*8
|
25.8
|
400*150*8*13
|
55.8
|
800*300*14*26
|
210
|
|||||
|
250*125*6*9
|
29.7
|
396*199*7*11
|
56.7
|
900*300*16*28
|
243
|
|||||
Product Advantage
High Quality
The products are made of high-quality materials,the quality is guaranteed,and the quality is firm and reliable.
Different Specifications
Powerful manufacturers support non-standard customization,manu-facturers produce fast,and guarantee product quality
The product adopts special processing technology,has accumulated many years of experience and is skilled in tehnology.
