Quick Details
-
Model Number:
-
RPT8A16
-
Max. Current:
-
20A
-
Display:
-
Digital LCD
-
Installation:
-
Din Rail Mounting
-
Voltage range:
-
AC 110~250V,DC 12/24V
-
Rated voltage:
-
220V
-
Time Setting Range:
-
1 Minuters~168 hours
-
Warranty:
-
2 Years
-
Certification:
-
CE, ROHS
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HiRP
-
Model Number:
-
RPT8A16
-
Max. Current:
-
20A
-
Display:
-
Digital LCD
-
Installation:
-
Din Rail Mounting
-
Voltage range:
-
AC 110~250V,DC 12/24V
-
Rated voltage:
-
220V
-
Time Setting Range:
-
1 Minuters~168 hours
-
Warranty:
-
2 Years
-
Certification:
-
CE, ROHS
RPT8A(B)16
1.Application
*** DIN Rail Installation
*** Advanced pre setting one week before
*** Digital electronics general purpose time switch with daily and weekly programs
*** Repeat programs with 8 ON OFF settings
*** To the minute setting accuracy
*** LCD displays real time to Hour Minute and ON AUTO OFF
2.Parameter
| Voltage:AC220V | Number of circuits: 1NO | Error:≤2S/days(25 °C ) |
| On/Off operation:8 On and 8 Off | Power:4.5VA(Max) | Bound:1min-168hours |
| Battery backup≥15days | ||
| Load Capacity:16A 250VAC(oh min load cosø=1) |
Service Life:Mechanically:10^7 Electrically 10^5 |
|
| Humidity:35-85%RH | Operating temperature:-10-50 °C |
Weight:125G
|
3.Operating Instructions
1) After the power is connected the battery will then begin to charge up When battery is charged press reset key
2) The timer switch is set in 24 hour mode at first If you want to change to 12 hour mode.
press
Key for 5 seconds and the L C D Will display AM 12 hour mode . If you wish to go back 24 hour mode, Press
key for 5 seconds and it will return to 24 hour mode.
3). Clock setting
(4) Press " MANUAL" key to display ON AUTO or AUTO OFF. (If this clock in your program is ON selects ON AUTO, and this clock in your program is OFF selects AUTO OFF)
5)Programming
4. Overall & Installation Dimension
Note: The power comsumption of connected electrical appliances should be within t he limitation of the following rated capacity.
5. Each our product will be tested twice to assure each one is qualified.

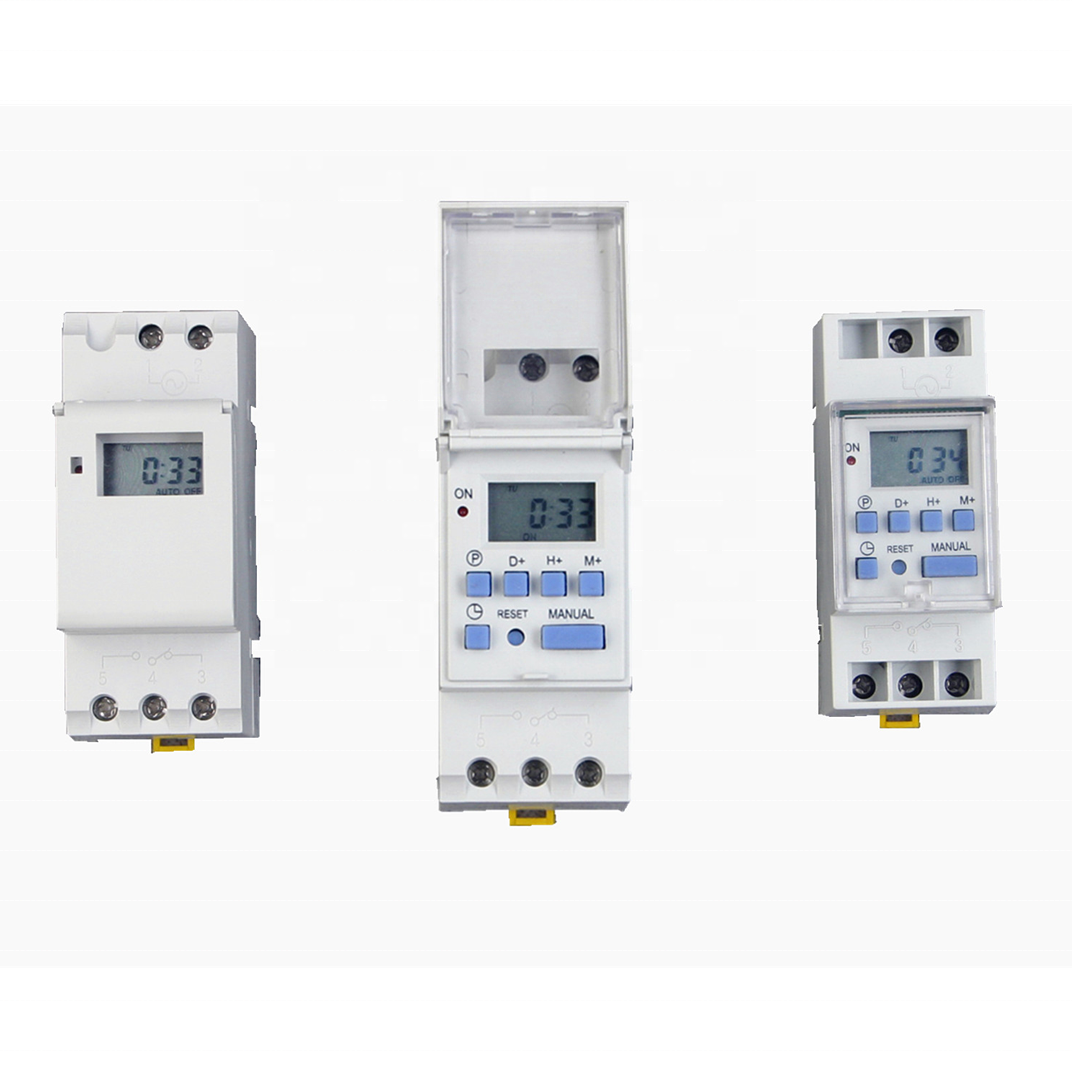

6.Product photos:
1,Q:Why your quotation is higher than some other suppliers?
A:In domestic market, the high and low quality brands are mixed together. There are many low-cost timer switch which is actually assembled with some cheaper and unstable parts, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable timer switch!
..............................................................................................................................................................
2,Q:Your timer switch voltage is 220V ?
A:Normally Our timer switch voltage is 220V(240V),50Hz,But we can also make AC 110~250V,DC24V,you must tell us about this,it is important for us to make correct item for you.
..............................................................................................................................................................
3,Q:Can I choose our own brand?
A:Yes,you can do it if your order quantity is more than 300pcs timer switch.
..............................................................................................................................................................
4,Q:How many years quality warranty you can offer?
A:We promise to give customer 2 years warranty since we ship the goods,our warranty time is longer than most of competitors.
5,Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
6,Q: What’s the delivery time?
A: It usually takes about 2-5 working days for small sample order and 10-35 days for big order.
