Step 2:
check our design drawing, datasheet and quotation based on your idea
Step 3:
Confirm sample order and wait for samples
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
10YEARS
-
Brand Name:
-
Shine/OEM
-
Model Number:
-
SN-CM10W5V
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
340x200x17mm
-
Solar cells:
-
Mono PERC / custom made
-
Surface material:
-
ETFT / PET / EPOXY / GLASS
-
Color:
-
White / Black
-
Backsheet:
-
TPT / PCB / PET / Aluminum plate
-
Standard connector:
-
solder pads / custom made
-
Frame:
-
Frameless
-
Cables:
-
Custom made
-
OEM:
-
Aceptable
-
Encapsulation Material:
-
EVA / POE / EPOXY
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, All Black, IBC
-
Panel Efficiency:
-
20%
-
Warranty:
-
10YEARS
-
Brand Name:
-
Shine/OEM
-
Model Number:
-
SN-CM10W5V
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
340x200x17mm
-
Solar cells:
-
Mono PERC / custom made
-
Surface material:
-
ETFT / PET / EPOXY / GLASS
-
Color:
-
White / Black
-
Backsheet:
-
TPT / PCB / PET / Aluminum plate
-
Standard connector:
-
solder pads / custom made
-
Frame:
-
Frameless
-
Cables:
-
Custom made
-
OEM:
-
Aceptable
-
Encapsulation Material:
-
EVA / POE / EPOXY

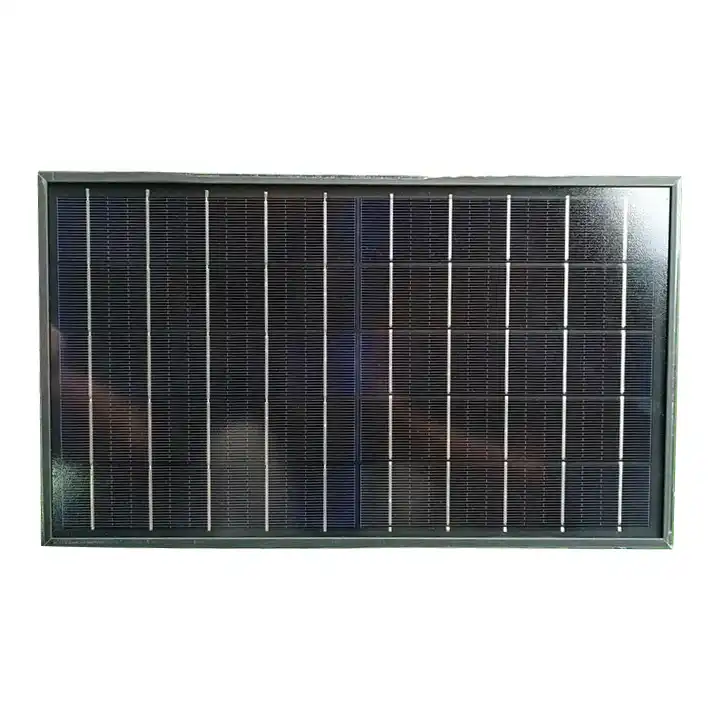

Solar panel details
Solar Panel Kit 30W 12V Monocrystalline Battery Maintainer 10W Solar Charge Controller with Battery Clips for RV Marine Boat
|
Max Power
|
10W
|
|
Vmp
|
5V
|
|
Imp
|
2000mA
|
|
Voc
|
6V
|
|
Isc
|
2170mA
|
|
Size
|
340x200x17mm
|
|
Standard connector
|
junction box(customizable)
|
The mini solar panel is custom made, power, voltage, size, shape, cable, connector ...all can be customized.
Please "
send inquiry
" to us or "
contact us
" directly for more details.
How to custom your solar panel
3 steps to have your own small solar panel
Step 1:
Tell us your requests about power/voltage/shape/size.....
(contact us if you are not sure)
.
Custom made solar panel example
Features of different coating
EPOXY
PET
ETFE
Glass
|
Type
|
Features
|
Service life
|
|
Epoxy
|
Panel Thickness
: about 3mm
1.
Good stability without no discolouration
2
.Higher water-proof
3.
Better sealing property
4.
Light transmission: ＞91%
5.
Operating temperature: -20~50℃
|
2-3 years
|
|
PET
|
Panel Thickness
: about3mm
1
. Higher scratch resistance ability
2
. Better self-cleaning ability
3
. Light transmission: ＞90%
4
. Operating temperature:-20~50℃
|
5-8 years
|
|
ETFE
|
Panel Thickness
: about 3mm
(highly recommended)
1
. Thin ultra lightweight and durable
2
. Highly stain-resistant and easily get cleaned by itself
3
.Highly resistant to seawater corrosion
4
. Absorbs sunlight, no reflection
5
. Light transmission:＞95%
6
. Operating temperature: -20~60℃
|
10-12 years
|
|
Glass
|
Panel Thickness
: about 4.3mm
1
. Stronger surface resistance for mechanical loads
2
. Higher reliability and water restistance
3
. Longer service life
4
. Lower temperature coefficient
5
. Available for long-time outdoor use
6
. Operating temperature: -40~80℃
|
15-20 years
|
Connector
Applications
Why Choose Us
FAQ
1.Tell more about Shine Solar?
A: We are a 12-year professional solar panel manufacturer which mainly supply custom made and OEM service to NA, EU...solar brands, every year we will service 1000+ solar brands and supply 500MW+ green energy to the world.
2.What is your main product lines?
A: Mono 5-300 watt non-standard solar panel, high efficiency semi flexible solar panel, folding solar panel plug and custom mini solar cells;
3.What is the MOQ of custom made solar panel
A:The MOQ will be based on the panel size and power, usually 10pcs samples can be acceptable.
4.How can I know what the panel voltage I need?
A: Based on your battery or your charge controller.
If 3.7V battery, panel is suggested to be 5V;
12V battery → 18V panel
24V battery → 36V panel
You can also check the input range of your charge controller to confirm, or contact us for help.
5. What kindly of surface material should I use? Epoxy, PET, ETFE, glass?
A: If you don't need panel to be lightweight and bendable, glass will be first suggested;
if you need panel to be light and flexible or the power higer than 2W, ETFE will be recommended;
if your panel is ＜1W, epoxy will be good.
