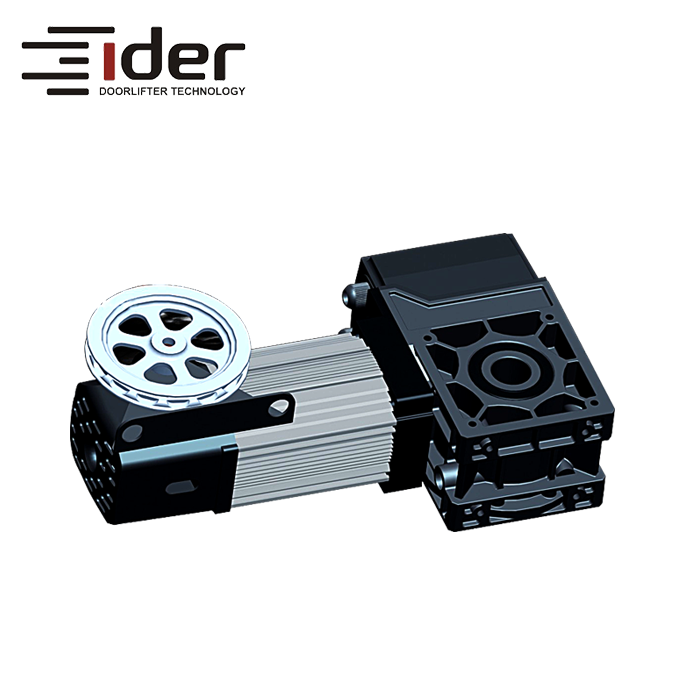

Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ider
-
Model Number:
-
GYM500S
-
Type:
-
Automatic Door Operators
-
Power supply:
-
380V
-
Certificate:
-
CE
-
Material:
-
Aluminum Alloy
-
Usage:
-
Industrial
-
Motor:
-
AC Motor
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Hotel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ider
-
Model Number:
-
GYM500S
-
Type:
-
Automatic Door Operators
-
Power supply:
-
380V
-
Certificate:
-
CE
-
Material:
-
Aluminum Alloy
-
Usage:
-
Industrial
-
Motor:
-
AC Motor
Table of Performance Parameters for the Large Industrial Door Operator:
| Model | GYM260S-1 | GYM260S-2 | GYM350S-1 | GYM350S-2 | GYM500S-1 | GYM500S-2 |
| Input Voltage | AC380V | AC380V | AC380V | AC380V | AC380V | AC380V |
| Rated Power | 800W | 800W | 1000W | 1000W | 1000W | 1000W |
| Rated Current | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A | 3.5A |
| Startup Torque | 260N.m | 260N.m | 350N.m | 350N.m | 500N.m | 500N.m |
| No-load Running Time | 25min | 25min | 25min | 25min | 25min | 25min |
| Maximum Door Weight | 50m2 | 50m2 | 70m2 | 70m2 | 100m2 | 100m2 |
| No-load Rotating Speed | 12r/min | 12r/min | 12r/min | 12r/min | 8r/min | 8r/min |
| Diameters of the hole for output shaft | Φ32/35/40mm | |||||
| Retarding Mechanism |
Mechanism completely built with cooper worm wheels and worm rods |
|||||
| Lubrication | Oil submerging | |||||
| Thermal Protective Temperature | 120ºC | |||||
| Max. Limited Journey | 20 rounds rotation of the output shaft | |||||
| Ambient Temperature | -20ºC~+45ºC | |||||
| Working System | S2 20% | |||||
| Noise | ≤60dB | |||||
| Protective level | IP 54 | |||||
| Mode of manual chain | Universal chain style | |||||
| Swift Release Upon Power Failure | Pull-rope release(optional) | |||||
| Type of limit switch | Mechanical limit | Electronic limit | Mechanical limit | Electronic limit | Mechanical limit | Electronic limit |
| Total weight | 26kg | 26kg | 28kg | 28kg | 28kg | 28kg |
- Semi-automatic manual chain mechanism;
- The reduction gearbox adopts precision worm gear and worm drive and oil-immersed lubrication, smooth transmission, low noise, long service life;
- Lead to adopt high precision 14 absolute encoder(16000 pulse point) of electronic limit mechanism. A great of improve the precision of limit;
- Original motor built-in brakes, effectively reduce motor inertial, enhances the accuracy of the lim;
- Double limit protection, more safe and reliable;
- Safety brake systems inside reducer.
- GYK-91S/GYK-92S
- The phase sequence automatic detection function, ensure the door a body in the right direction;
- With a door in door interlock protection function interface;
- With infrared, airbags and other safety protection function interface;
- Can receive magnetism, entrance guard system, realizes the unmanned management, automatic open and close the doors;
- Can set shut down door inching function, used for special occasions.
A. Balance Spring
B. Door Opener
C. Power Distribution Box
D. Alarm Lamp (Optional)
E. Control Unit
F. Safety Air Senson
G. Loop Detector
H. Buffered Device
Characteristics:
1. With 5 standard mechanical rotary limit switches;
2. Can choose the absolute value encoder electronics limit;
3. Can choose a quick release mechanism;
4. There is a group of peripheral interface, can connect with infrared photocell, safety edge switch and door safety protection device;
5. There are two model control system: built-in control panel and separate control box;
6. With phase sequence detection, and overload protection, phase correction.
Product application environment display
• Industrial door operator can be used for torsion spring balance industrial doors. The operator can be installed by directly drive(shaft drive), also can be installed by indirect drive(by the other chain sprocket drive).
• The mechanical limit form, containing built-in motor brake .The optional quick release mechanism.
