Quick Details
-
Model Number:
-
WDW
-
Model:
-
Electronic Universal Material Tensile Testing Machine
-
Application:
-
Metal and non metal material
-
Configuration:
-
Imported sensor, motor for choice
-
Clamp:
-
Manual or hydraulic way
-
Power supply:
-
AC220V 50HZ
-
Function:
-
tensile test, compression test, bending test
-
Packing:
-
Plywood Cases Seaworthy
-
Certificate:
-
CE ISO
-
Product name:
-
Plastic Tensile Testing Machine
-
Warranty:
-
12 Months
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kason
-
Model Number:
-
WDW
-
Model:
-
Electronic Universal Material Tensile Testing Machine
-
Application:
-
Metal and non metal material
-
Configuration:
-
Imported sensor, motor for choice
-
Clamp:
-
Manual or hydraulic way
-
Power supply:
-
AC220V 50HZ
-
Function:
-
tensile test, compression test, bending test
-
Packing:
-
Plywood Cases Seaworthy
-
Certificate:
-
CE ISO
-
Product name:
-
Plastic Tensile Testing Machine
-
Warranty:
-
12 Months

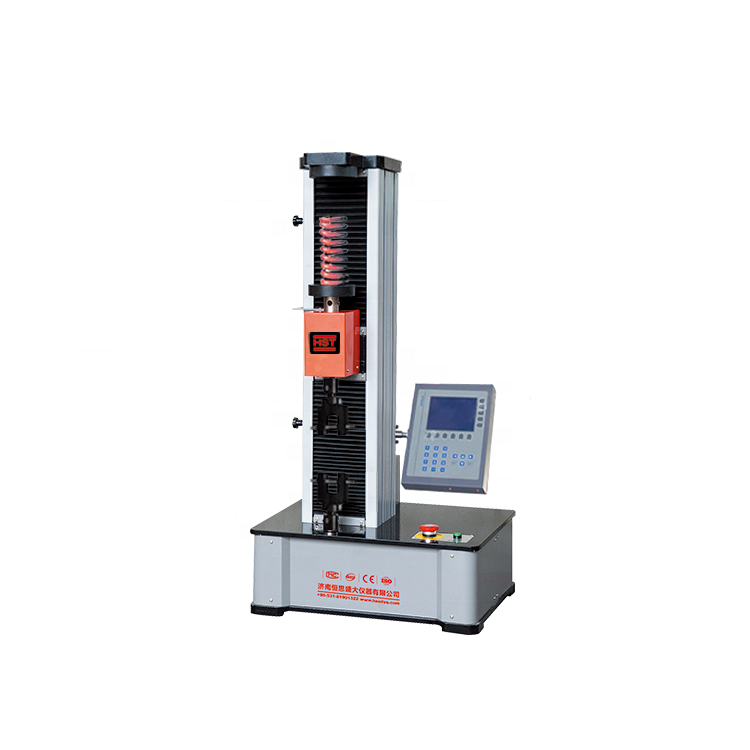

Factory Universal Tensile testing equipment tester Computerized dual column electro-mechanical force test machine
This series testing machine is mainly used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, disp lacement and rigidity test and analysis.
GB/T, ASTM, DIN, JIS and other international standards.
|
Model |
TLS-10 TLW-10 |
TLS-20 TLW-20 |
TLS-50 TLW-50 |
TLS-100 TLW-100 |
TLS-200 TLW-200 |
TLS-300 TLW-300 |
|||
|
Structure |
Double Column Type Double space models |
||||||||
|
Control Method |
Digital display/computer control |
||||||||
|
Load Accuracy |
Class1/Class0.5 |
||||||||
|
Load Range |
2%~100%F·S |
||||||||
|
Test force relative error value |
≤±1%% |
||||||||
|
Displacement relative error value |
≤±1% |
||||||||
|
Displacement display resolution |
0.01mm |
||||||||
|
Deformation indication error |
≤±(50+0.15L)um |
||||||||
|
Speed range(mm/min) |
0.01-500 |
0.01-500 |
0.01-500 |
0.01-500 |
0.01-500 |
0.01-500 |
|||
|
Speed relative error |
≤±1% |
||||||||
|
Tensile test space |
670 |
670 |
770 |
650 |
700 |
700 |
|||
|
Compression space |
670 |
670 |
770 |
650 |
700 |
700 |
|||
|
Upper and lower pressure plate parallelism |
≤0.05mm |
||||||||
|
Power Supply |
AC220V±10%,50Hz |
||||||||
