Quick Details
-
Model Number:
-
HCA726S
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RION
-
Theory:
-
Capacitance Sensor
-
Output:
-
Digital Sensor
-
output:
-
modbus
-
Axis:
-
single/dual
-
resolution:
-
0.01degree
-
working temp.:
-
-40 to +85℃
-
waterproof:
-
IP67
-
Size:
-
54x44x18mm
-
OEM:
-
YES
Quick Details
-
Usage:
-
tilt sensor
-
Mounting Type:
-
Standard
-
Description:
-
Dual Axis Inclinometer
-
Model Number:
-
HCA726S
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RION
-
Theory:
-
Capacitance Sensor
-
Output:
-
Digital Sensor
-
output:
-
modbus
-
Axis:
-
single/dual
-
resolution:
-
0.01degree
-
working temp.:
-
-40 to +85℃
-
waterproof:
-
IP67
-
Size:
-
54x44x18mm
-
OEM:
-
YES
CE Certified 2 Axis Inclinometer Sensor Angle Alarm Inclinometer /Sensor Switch Price with High Accuracy Inclinometer Sensor
General Description
HCA716S/HCA726S is a small volume high accuracy inclinometer launched by RION company to the industrial field control , using RS485/RS232 Serial interface , MODBUS RTU standard protocol format .Built-in high-precision 24bit A /D differential converter, by 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt.The product integration of the latest technology to the main MEMS tilt unit, measuring range of +-180 degrees, full range accuracy of 0.01 degrees, can easily achieve biaxial and uniaxial inclination measurement .The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. The utility model is suitable for the control of the angle of the photovoltaic cell board, the orientation of the photovoltaic cell board, the measurement of the angle of various thermal power generation mirrors, and the large range high precision measurement of industrial sites.
Features
Single/dual Axis Inclinometer Measuring Range :±1~±90° optional
Accuracy: refer to the technical data Wide voltage input: 9~36V
Wide temperature working: -40~+85℃ Resolution: 0.001°
IP67 protection class Highly anti-vibration performance >100g
Direct lead cable interface Small size : 54×44×18mm(customized)
Output mode: MODBUS
Order information
Technical Data
|
Parameters |
Conditions |
HCA726S-15 |
HCA726S-45 |
HCA726S-60 |
HCA716V-180 |
Unit |
|
Measuring range |
|
±15 |
±45 |
±60 |
±180 |
° |
| Measuring axis |
|
X,Y |
X,Y |
X,Y |
Vertical X axis |
|
| Resolution |
|
0.001 |
0.001 |
0.001 |
0.001 |
° |
| Absolute accuracy |
@25℃ |
±0.008 |
±0.01 |
±0.01 |
±0.01 |
° RMS |
|
Long term stability |
|
<0.02 |
<0.02 |
<0.02 |
<0.02 |
° |
| Zero temperature coefficient |
-40~85° |
±0.0005 |
±0.0005 |
±0.0005 |
±0.0005 |
°/℃ |
| Sensitivity temperature coefficient |
-40~85° |
≤0.01 |
≤0.01 |
≤0.01 |
≤0.01 |
%/℃ |
| Power on time |
|
0.5 |
0.5 |
0.5 |
0.5 |
s |
| Response time |
|
0.02 |
0.02 |
0.02 |
0.02 |
s |
| Response frequency | >20HZ | |||||
| Output signal | RS232 or RS485 (MODBUS RTU) | |||||
| EMC | According to EN61000 and GBT17626 | |||||
| MTBF | ≥50000 Hours/times | |||||
| Insulation Resistance | ≥100M | |||||
| Shockproof | 100g@11ms,3Times/Axis(half sinusoid)) | |||||
| Anti-vibration | 10grms,10~1000Hz | |||||
| Protection glass | IP67 | |||||
| Cables |
Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.2mm2 |
|||||
| Weight | 120g( without cable) | |||||
Inclinometer series with different accuracy and resolution
Resolution: 0.1 Resolution: 0.05 Resolution: 0.01 Resolution: 0.001
Inclinometer with built-in display
Resolution: 0.01° Resolution: 0.001° Resolution: 0.0005°
please click the picture if any of them make you interested

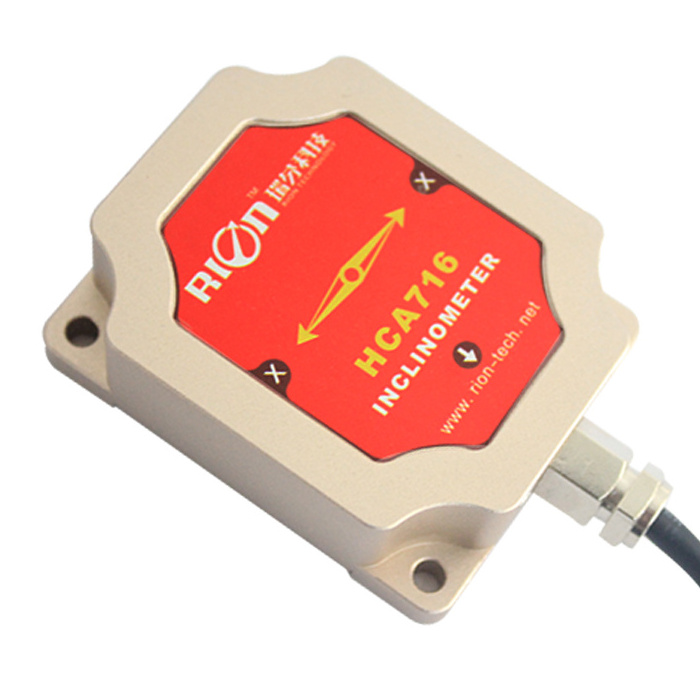

Product show:
