Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
PBS-17A
-
Product type:
-

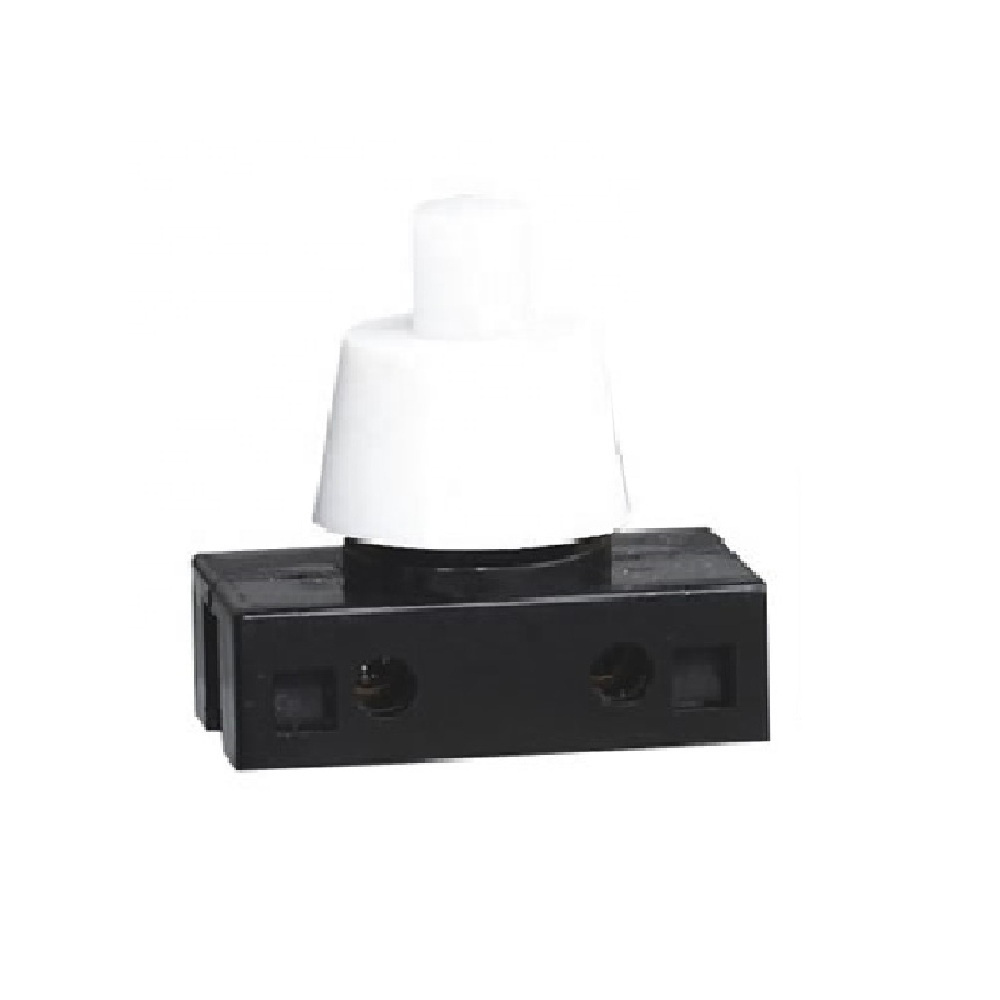

Lamp Foot Push Button Switch For Floor Lamps
-
Type:
-
Push Button Switch
-
Product name:
-
PBS-17A
-
Rating:
-
2A 250V
-
Function:
-
Latching
-
Button Color:
-
White/Black
-
Mounting Size:
-
10mm
-
Terminal:
-
Screw Terminal
-
Certificate:
-
CE, Rohs
-
OEM&ODM:
-
YES
-
Certification:
-
other
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
2A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
PBS-17A
-
Product type:
-
Lamp Foot Push Button Switch For Floor Lamps
-
Type:
-
Push Button Switch
-
Product name:
-
PBS-17A
-
Rating:
-
2A 250V
-
Function:
-
Latching
-
Button Color:
-
White/Black
-
Mounting Size:
-
10mm
-
Terminal:
-
Screw Terminal
-
Certificate:
-
CE, Rohs
-
OEM&ODM:
-
YES
-
Certification:
-
other
PBS-17A
Specifications:
1. Rating: 2A 250VAC
2. Electrical Life: 50,000 Cycles
3.Contact Resistance: 20mΩ max
4. Insulation Resistance:DC500V 100MΩ min
5. Dielectric Stren
gth:1000V AC 1min
6. Operating Temperature:-25°C~+85°C
7. Function: Latching/
Momentary Push Button Switch
8. Operating Force: 5N Max
Push button switch is one of the most easy and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
