Quick Details
-
Brand Name:
-
AUTO
-
Model Number:
-
UQK
-
Medium temperature:
-
≤120℃
-
Measurement range:
-
0-3m
-
Medium proportion:
-
≥0.8(float ball 75);<0.8(float ball 95);customized
-
Vessel flange:
-
DN50~DN150
-
Pressure:
-
0.6~2.5MPa
-
Signal output:
-
4-20mA
-
Power supply:
-
24VDC
-
Measurement accuracy:
-
L=500-1000mm,≤±1.5%FS,>1000mm,≤±1.0%FS
-
Connection type:
-
thread and flange
-
Product name:
-
Fuel level meter,digital fuel level gauge
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12 Months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTO
-
Model Number:
-
UQK
-
Medium temperature:
-
≤120℃
-
Measurement range:
-
0-3m
-
Medium proportion:
-
≥0.8(float ball 75);<0.8(float ball 95);customized
-
Vessel flange:
-
DN50~DN150
-
Pressure:
-
0.6~2.5MPa
-
Signal output:
-
4-20mA
-
Power supply:
-
24VDC
-
Measurement accuracy:
-
L=500-1000mm,≤±1.5%FS,>1000mm,≤±1.0%FS
-
Connection type:
-
thread and flange
-
Product name:
-
Fuel level meter,digital fuel level gauge

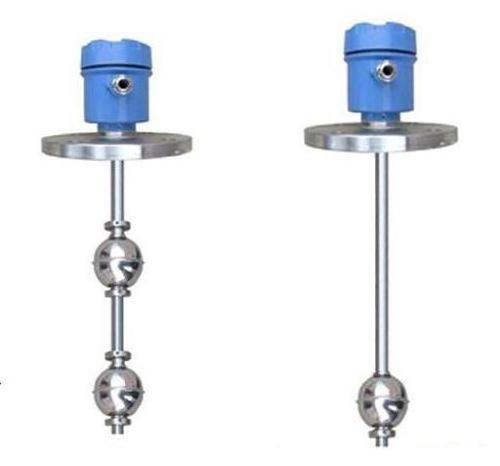

Float type Fuel level meter digital fuel level gauge for water tank
UQK Float Level Transmitter/Level Switch
UQK float level meter exploits magnetic float ball buoyancy principle in the liquid,when level changes the magnetic float ball goes up and down along the conduit,magnetic steel in the float ball attracts reed switch in the appropriate position of sensor to change the all-in resistance value of sensor,then transmitter will make the changed resistance signal into 4-20mA electric signal output, transmitter power supply 24VDC,two wire working form,has stable reliable,no need adjustment etc features.
|
|
|
Measurement range |
L ≤6 000mm |
|
Medium temperature |
≤ 120 ℃ |
|
Medium proportion |
≥ 0.8(float ball Φ 75); < 0.8(float ball Φ 95);customized |
|
Vessel flange |
DN50~DN150 |
|
Pressure |
0.6~2.5MPa |
|
Signal output |
4-20mA |
|
Power supply |
24VDC |
|
Measurement accuracy |
L=500-1000mm, ≤± 1.5%FS, > 1000mm, ≤± 1.0%FS |
|
Load resistance |
0~750 Ω |
|
Order sheet |
||
|
Name |
Specification code |
Explanation |
|
Instrument name |
UQK- |
Float level meter |
|
Installation type |
A |
Flange type |
|
B |
Thread type |
|
|
Measure range
|
1 |
0-2m |
|
2 |
2-4m |
|
|
3 |
4-6m |
|
|
Display |
M1 |
With LCD display |
|
M2 |
Without LCD display |
|
|
Material |
1 |
304 Stainless steel |
|
2 |
316 Stainless steel |
|
|
Output signal |
|
4-20mA output |
|
Pressure |
-0.6 |
0.6MPa |
|
-1.0 |
1.0MPa |
|
|
-1.6 |
1.6MPa |
|
|
-2.0 |
2.0MPa |
|
|
-2.5 |
2.5MPa |
|
|
Temperature |
|
≤ 100 ℃ |
|
digital display meter |
A |
With digital display meter |
|
B |
Without digital display meter |
|
Application:
1. UQK float ball level meter is widely used for water treatment in oil refining , chemical,papermaking, food and pharmacy etc industries and the medium liquid level measurement in all kinds of a tmospheric and pressurizing vessels,especially good for the level measurement in underground
storage tank.
2. UQK float ball level meter is widely used for the liquid level continuous measurement of high
temperature,high pressure, viscous and dirt medium,pitch,oil and inflammable, explosive,corrosive medium etc as it has simple structure,convenient calibration,good reliability and high accuracy etc Features.
