Quick Details
-
Model Number:
-
HT-XF
-
Mounting Mode:
-
Group taking and group picking
-
Capacity:
-
150000~170000 CPH
-
Kind:
-
smt led pick and place machine
-
NO. of Nozzle:
-
34 PCS
-
Apply to:
-
Hard light board and soft lamp strip,etc.
-
Feeder Sort:
-
Electronic feeder
-
No. of Feeder:
-
34 PCS
-
Precision:
-
±0.02mm
-
PCB Size:
-
300mm*1200
-
Applicable Components:
-
LED 3014/3020/3528/5050 etc.
Quick Details
-
Weight (KG):
-
2000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ETON
-
Model Number:
-
HT-XF
-
Mounting Mode:
-
Group taking and group picking
-
Capacity:
-
150000~170000 CPH
-
Kind:
-
smt led pick and place machine
-
NO. of Nozzle:
-
34 PCS
-
Apply to:
-
Hard light board and soft lamp strip,etc.
-
Feeder Sort:
-
Electronic feeder
-
No. of Feeder:
-
34 PCS
-
Precision:
-
±0.02mm
-
PCB Size:
-
300mm*1200
-
Applicable Components:
-
LED 3014/3020/3528/5050 etc.
Product Description

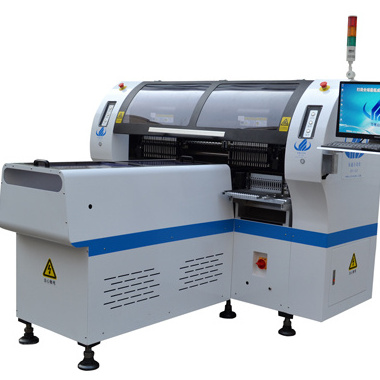

1) LED Pick & Place Machine adopts Panasonic Servo Motor, imported railway to ensure its stable and accuracy.
2) X.Y axis adopts Panasonic Servo Drive, cooperated with imported liner railway ensures its accuracy and speed.
3) Four mounting heads work simultaneously, much faster. Nozzle above and down adopts imported railway with high precision and durable lifetime.
4) Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
5) Multi Feeder optional, can meet different kinds of LED mounting.
6) Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
7) Software adopts data system, and store different types of PCB for convenient adjustment, just need to programming one time for new products to use forever.
8) Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
9) LED Pick & Place Machine use imported vacuum detection system, it can check the suction accurately to prevent material leakage and throwing effectively.
10) Internal negative pressure system: low noise, long service life and vacuum pressure constant.
11) Standard setting:1 PC,8 mounting heads,16 nozzles.
12) Optinal :8mm,12mm,16,and 24mm automatic feeder, different nozzles, industrial pump, air compressor .
Technical Parameter
|
DIMENSION (MM) |
2700(L)* 1900(W)* 1400(H) |
|
PCB (MM) |
1200(L) * 330(W) |
|
Mounting precision |
0.2mm |
|
Mounting Height |
<15mm |
|
Mounting Speed |
150000-170000 |
|
System |
Windows7 |
|
POWER |
220V |
|
MAXIMUM POWER |
5.0KW |
|
AIR PRESSURE |
>5KG |
|
POSITIONING |
VISION SYSTEM for mark point |
|
WEIGHT |
About 130 0KG |
