Quick Details
-
Brand Name:
-
FHB Audio
-
Model Number:
-
DP22
-
Dimension (L x W x H):
-
87*97*46
-
Model No.:
-
DP22
-
Product Name:
-
Dante Audio
-
Keyword:
-
Dante wall plate,audio interface
-
Application:
-
Conference Room
-
Function:
-
signal connection between analog and Dante
-
Channel:
-
2 Channels
-
Power Supply:
-
PoE 48V
-
Certificate:
-
CE ROHS
-
Weight:
-
0.75KG
-
Size:
-
87*97*46
Quick Details
-
Power:
-
N/A
-
Frequency Range (Hz):
-
20-20KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FHB Audio
-
Model Number:
-
DP22
-
Dimension (L x W x H):
-
87*97*46
-
Model No.:
-
DP22
-
Product Name:
-
Dante Audio
-
Keyword:
-
Dante wall plate,audio interface
-
Application:
-
Conference Room
-
Function:
-
signal connection between analog and Dante
-
Channel:
-
2 Channels
-
Power Supply:
-
PoE 48V
-
Certificate:
-
CE ROHS
-
Weight:
-
0.75KG
-
Size:
-
87*97*46

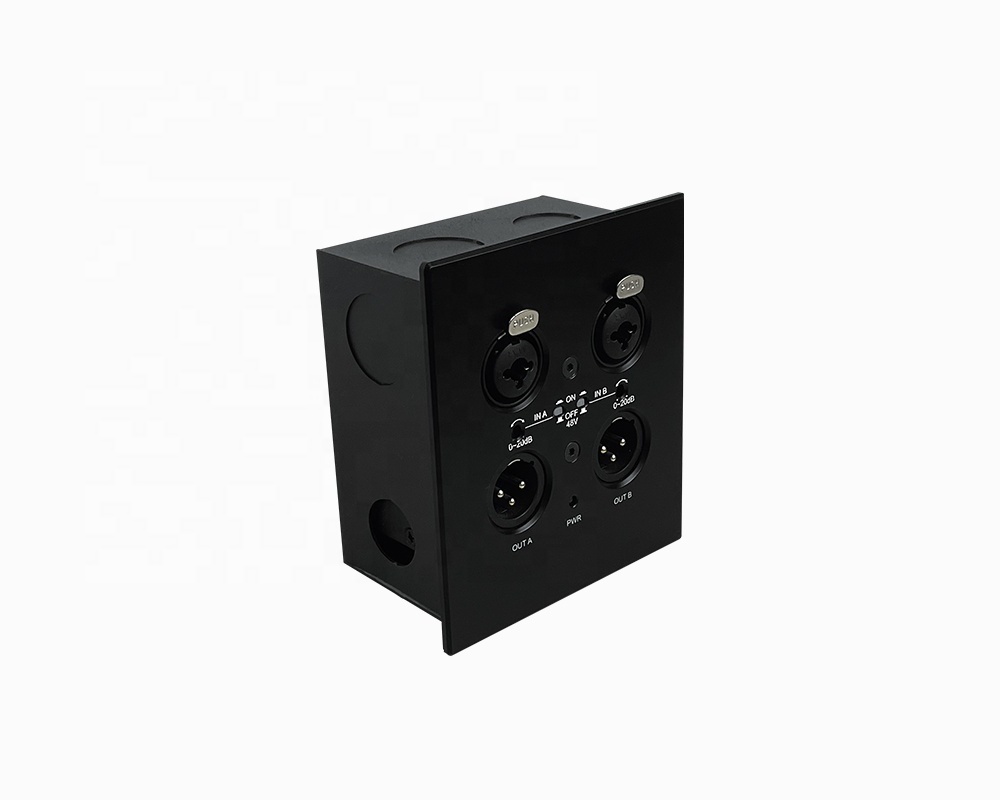

Product Description
This product provides a signal connection between analog input and output and Dante channel, requiring PoE network power supply.
DP22 supports two sets of balanced I/O analog signals to connect to Dante system through local area network.
DP22 supports two sets of balanced I/O analog signals to connect to Dante system through local area network.
The input interface use a two-in-one XLR to provide phantom power switch and gain adjustment function of input signal. The output interface is standard 3 Pin XLR , output balanced analog signal.
Main Features
:
* Dante 2X2 wall panel for conversion between analog audio signal and Dante digital audio signal.
* This device supports 2-channel analog input and 2-channel analog output.
* This device supports 2 channels Dante input and 2 channels Dante output.
* This device supports conversion of analog input to Dante digital audio; Supports Dante digital audio to analog audio output.
* Each channel analog input, with phantom power supply switch, gain manual adjustment knob.
* POE mode power supply, compatible with 802.3af, 802.3at standard POE switches.
* Front panel independent power indicator.
* This device supports 2-channel analog input and 2-channel analog output.
* This device supports 2 channels Dante input and 2 channels Dante output.
* This device supports conversion of analog input to Dante digital audio; Supports Dante digital audio to analog audio output.
* Each channel analog input, with phantom power supply switch, gain manual adjustment knob.
* POE mode power supply, compatible with 802.3af, 802.3at standard POE switches.
* Front panel independent power indicator.
|
Product Model No.
|
DP22
|
|
Analog input channel
|
2
|
|
Analog output channel
|
2
|
|
Dante input channel
|
2
|
|
Dante output channel
|
2
|
|
Dante interface
|
1
|
|
Input gain amplification
|
Rotary gain knob (0 ~ 20dB)
|
|
Balanced/non-balanced, input/output support
|
√
|
|
MIC\LINE, input/output support
|
√
|
|
48V phantom power switch
|
√
|
|
Sampling rate
|
48kHz
|
|
Phantom power
|
48V
|
|
Frequency Response (20~20KHz)
|
20Hz ～ 20K Hz，±0.5dB
|
|
THD+N
|
≦0.005% @4dBu
|
|
Digital-analog dynamic range (A weighting)
|
120dB
|
|
Analog - digital dynamic range (A weighting)
|
114dB
|
|
Input impedance (balanced)
|
20kΩ
|
|
Output impedance (balanced)
|
100Ω
|
|
EIN（A weighting)
|
≤-131 dBu
|
|
Channel isolation @1kHz
|
100dB @1k Hz，4dBu
|
|
Simulated maximum gain
|
20dB
|
|
Common-mode rejection
|
80dB @80 Hz
|
|
Maximum input level
|
18dBu
|
|
Maximum output level
|
18dBu
|
|
Ground Noise
|
-90dBu
|
|
System delay
|
≤3ms
|
|
Working Power Supply
|
PoE 48V
|
|
Operating temperature
|
'-10-50℃
|
|
Size
|
87*97*46(mm)
|
Application
The Dante wall plate
mainly use at conference application.
