Quick Details
-
Brand Name:
-
Shantui
-
Model Number:
-
SD32
-
Dimension(Long * Breadth * High):
-
6500*2560*3450mm
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
After Warranty Service3:
-
Field maintenance and repair service
Quick Details
-
Machine Weight:
-
37200 KG
-
Dozing Capacity:
-
6m³, 10m³, 11.9m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Model Number:
-
SD32
-
Dimension(Long * Breadth * High):
-
6500*2560*3450mm
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
After Warranty Service3:
-
Field maintenance and repair service
Product Introduction
|
Engine
|
Model & type
|
Cummins NTA855-C360S10; In-line, water-cooled; 4-cycle,
overhead valve direct injection, turbocharged diesel |
|
|
||
|
|
Rated revolution
|
2000 rpm
|
|
|
||
|
|
Horsepower
|
Gross power: 257/345/2000 kW/HP/rpm //
Net power: 235/320/2000 kW/HP/rpm |
|
|
||
|
|
Number of cylinders
|
6—139.7 x 152.4 (mm x stroke)
|
|
|
||
|
|
Piston displacement
|
14010 ml
|
|
|
||
|
|
Min. fuel consumption
|
245 g/kW·h
|
|
|
||
|
|
Maximum torque
|
1440 N·m@1400rpm
|
|
|
||
|
Power
transmission system |
Torque converter
|
3-element, 1 stage, 1 phase
|
|
|
||
|
|
Transmission
|
Planetary gear, multi-disc clutch, power shift,
forced lubrication |
|
|
||
|
|
Main drive
|
Spiral bevel gear, splash lubrication,
single-stage speed reduction |
|
|
||
|
|
Steering clutch
|
Wet, multi-disc, spring loaded,
hydraulically separated, hydraulic control |
|
|
||
|
|
Steering brake
|
Wet, floating band, foot brake with hydraulic booster
|
|
|
||
|
|
Final drive
|
2-stage speed reduction of spur gear, splash lubrication
|
|
|
||
|
Travel speed
|
Gear
|
1st
|
2nd
|
3rd
|
||
|
|
Forward
|
0~3.6 km/h
|
0~6.6 km/h
|
0~11.5 km/h
|
||
|
|
Reverse
|
0~4.4 km/h
|
0~7.8 km/h
|
0~13.5 km/h
|
||
|
Undercarriage
system |
Type
|
Swing type of sprayed beam, suspended structure of equalizer bar
|
|
|
||
|
|
Carrier rollers
|
2 each side
|
|
|
||
|
|
Track rollers
|
7 each side (single flange 5, double flange 2)
|
|
|
||
|
|
Track type
|
41 each side
|
|
|
||
|
|
Width of track shoes
|
560 mm
|
|
|
||
|
|
Pitch
|
228.6 mm
|
|
|
||
|
Hydraulic
System |
Maximum pressure
|
14 MPa
|
|
|
||
|
|
Pump type
|
Gear pump
|
|
|
||
|
|
Discharge
(at revolution of 2000 rpm) |
355 (1795 rpm) L/min
|
|
|
||
|
|
Bore of working cylinder ×
no. (double-acting type) |
140 mm × 2
|
|
|
||
|
Blade
|
Blade Type
|
Straight-tilt
|
Angle
|
Semi-U blade
|
||
|
|
Dozing capacity
|
10 m 3
|
6 m 3
|
11.9 m 3
|
||
|
|
Efficiency
(Theoretical value 40 m) |
580 m 3 /h
|
350 m 3 /h
|
690 m 3 /h
|
||
|
|
Blade width
|
4130 mm
|
5000 mm
|
4130 mm
|
||
|
|
Blade height
|
1590 mm
|
1140 mm
|
1710 mm
|
||
|
|
Maximum drop below ground
|
560 mm
|
630 mm
|
560 mm
|
||
|
|
Maximum tilt adjustment
|
1000 mm
|
500 mm
|
1000 mm
|
||
|
|
Weight of blade
|
4520 kg
|
4932 kg
|
4924 kg
|
||
|
Riipper
(Optional) |
Maximum digging
depth of 3-shank ripper |
842 mm
|
|
|
||
|
|
Maximum lift above ground
|
883 mm
|
|
|
||
|
|
Weight of 3-shank ripper
|
3802 kg
|
|
|
||
|
|
Maximum digging
depth of single ripper |
1250 mm
|
|
|
||
|
|
Maximum lift above ground
|
965 mm
|
|
|
||
|
|
Weight of single ripper
|
3252 kg
|
|
|
||
Products Description

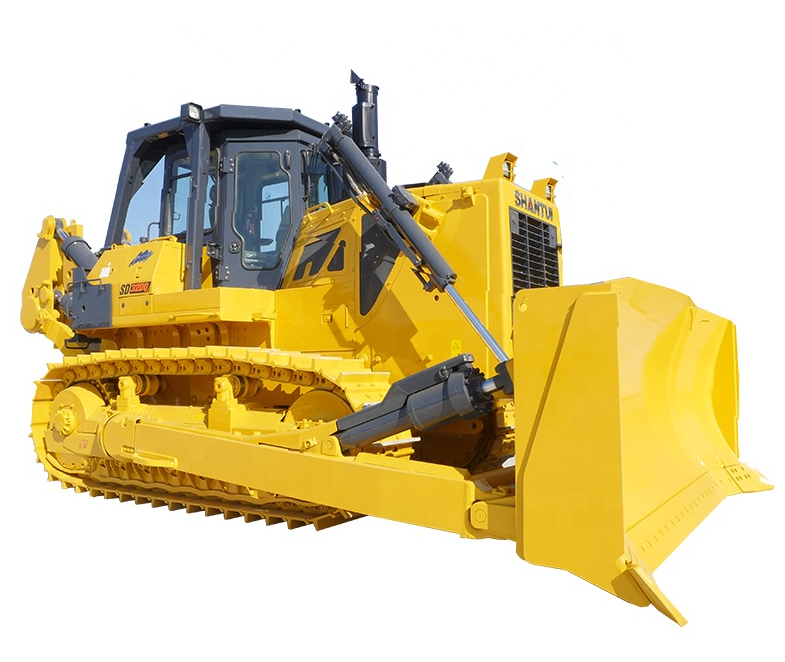

The SD32 provides a showcase for Shantui's prowess with high-efficiency push factors. These medium-sized, but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and efficiently. SD32 are equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provide reliable performance and convenient and flexible operation.
The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as
gravel and hardened salt mine.
