Equipped with secondary positioning system to realize processing without dead angle
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Puhua
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
13 T
-
Model Number:
-
AMD-357
-
Motor Power (kw):
-
20 kw
-
Marketing Type:
-
Hot Product 2022
-
CNC or Not:
-
CNC
-
Power Source:
-
Electricity
-
Keyword:
-
cnc turret punching
-
Application:
-
Metal Sheet punching
-
Function:
-
Steel Metal Punching
-
Color:
-
Customized
-
Product name:
-
Amd Hydraulic CNC Turret Punching Machine
-
Nominal Force (kN):
-
300
-
Name:
-
Amada cnc turret punching machine amd-357 for steel sheet punching
Quick Details
-
Machine Type:
-
cnc turret punching machine
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Shandong,China(Mainland)
-
Brand Name:
-
Puhua
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (T):
-
13 T
-
Model Number:
-
AMD-357
-
Motor Power (kw):
-
20 kw
-
Marketing Type:
-
Hot Product 2022
-
CNC or Not:
-
CNC
-
Power Source:
-
Electricity
-
Keyword:
-
cnc turret punching
-
Application:
-
Metal Sheet punching
-
Function:
-
Steel Metal Punching
-
Color:
-
Customized
-
Product name:
-
Amd Hydraulic CNC Turret Punching Machine
-
Nominal Force (kN):
-
300
-
Name:
-
Amada cnc turret punching machine amd-357 for steel sheet punching
Products Description

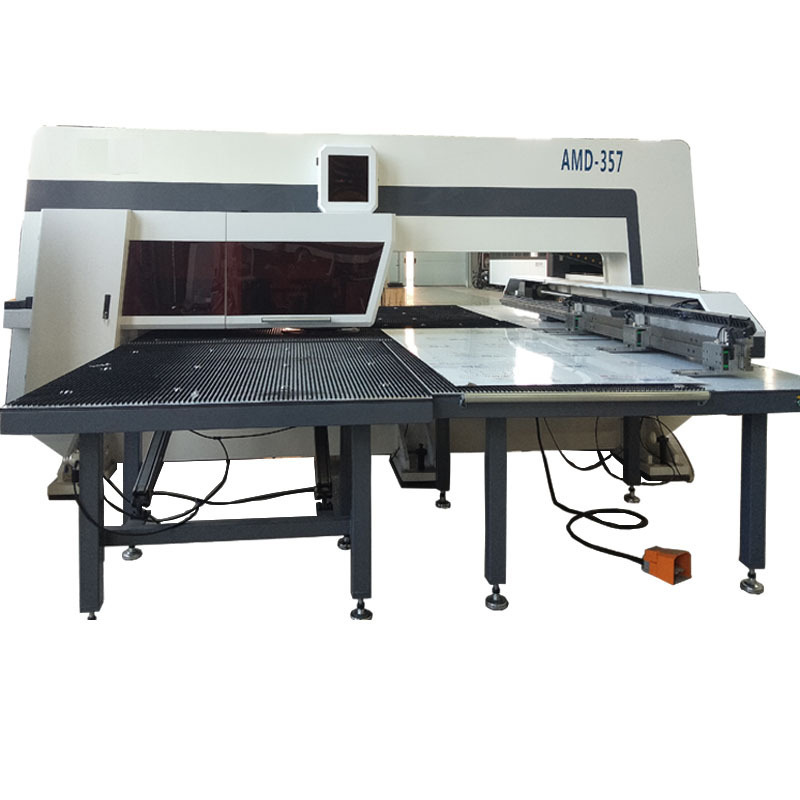

CNC Turret Punching Machine
AMD-357 CNC turret punching machine is mechatronics automation equipment, it's widely used in the instruments and meters, chassis cabinets processing, electric control cabinet panels, battery plate, building decorative materials, auto parts, silencing plate, lamps, kitchen equipment, air conditioners and other sheet metal processing industries.
Technical Parameter
|
Model
|
AMD-357
|
|
Capacity
|
300/500 KN
|
|
Driving Type
|
Mechanical driving
|
|
CNC System
|
Siemens/Fanuc
|
|
Max. Processing sheet (Reposition)
|
1000/1250/1500/1750 mm
1500/2500/4000/6000 mm
|
|
QTY of Clamp
|
No.3
|
|
Max. Processing Sheet Thickness
|
6 mm
|
|
Max. Punch Diameter
|
Φ88.9 mm
|
|
Max. Punch Hit at 1mm Pace
|
400 hpm
|
|
Max. Punch Hot at 25mm Pace
|
220 hpm
|
|
QTY of Station
|
No.24/32
|
|
Controlling Axis
|
No.4
|
|
Machine Frame
|
O type
|
|
Max. Feeding Speed
|
60 m/min
|
|
Tooling Rotation Speed
|
30 rpm
|
|
Accuracy
|
±0.1 mm
|
|
Rated Power
|
20 KW
|
|
Air Pressure
|
0.6-0.8 MPa
|
|
Outline Dimension
|
4490*5300*2110 mm
|
Product Features
With servo motor, faster speed and higher stability
With the features of automatic lubrication and minimal wear
Use casting integrated type thick turret mold disc
We adopt brush and universal ball mixer work table,can not only facilitate processing,but also can protect the plate very well.
The transmission system, electrical components, and hydraulic components all adopt internationally renowned brands
Product Application
