Quick Details
-
Physical Characteristics:
-
In conformity with ISO 7810 /7811
-
Card Size:
-
In conformity with ISO 7810ID-1
-
Quiescent Current:
-
200mA
-
Net Weight:
-
Approx. 2.8KG (excluding accessories and package)
-
Magnetic Coercivity:
-
24k~320k A/m (300~4000 Oe)+/-10%
-
Service Life:
-
1,000,000 passes min
-
Card Stacker Capacity:
-
300 pcs (0.4mm thickness)
-
Communication Method:
-
RS232 (optional)
-
Keyword:
-
magnetic card Card Dispenser
Quick Details
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Physical Characteristics:
-
In conformity with ISO 7810 /7811
-
Card Size:
-
In conformity with ISO 7810ID-1
-
Quiescent Current:
-
200mA
-
Net Weight:
-
Approx. 2.8KG (excluding accessories and package)
-
Magnetic Coercivity:
-
24k~320k A/m (300~4000 Oe)+/-10%
-
Service Life:
-
1,000,000 passes min
-
Card Stacker Capacity:
-
300 pcs (0.4mm thickness)
-
Communication Method:
-
RS232 (optional)
-
Keyword:
-
magnetic card Card Dispenser

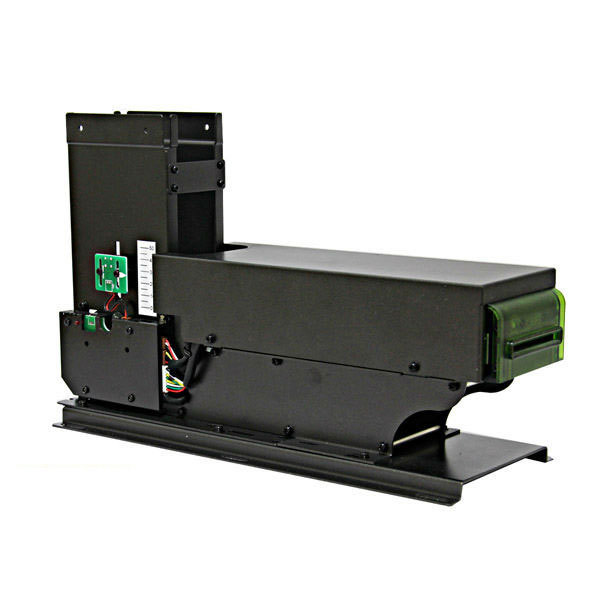

SK-AD6 Self Smart card dispenser Vending Machine for Pharmacy
MODEL:SK-AD6
features
*Supports ISO7810/7811 magnetic card reading only
*Supports ISO7816-2 contact IC card reading/writing
*Supports ISO14443-A Type A/B card reading/writing
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately
*Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses
*Compact structure design: effectively saves space for the complete machine
*Rear card capture box: provides convenience for card management
*Simple collection channel design: satisfies user requirement for large collection amount
*Multiple sensors: are able to judge the card position and indicate the card status
*Protruding bezel: for anti-theft is available
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside
*Supports multiple communications (max. 16 C/Ds)
*Supports online upgrade program
amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.
*Multiple levels of sensor circuit protection: prevents optical interference.
*Supports multiple communications (max. 16 C/Ds).
*Supports online upgrade program.
applications
*Multimedia kiosk
*Access control system
*Vending machine
*Gaming machine
*Refueling terminal
SPECIFICATIONS
|
Physical Characteristics |
In conformity with ISO 7810 /7811 |
||
|
Card Size |
In conformity with ISO 7810ID-1 |
||
|
Embossing Card |
In conformity with ISO 7811-1 /-3 |
||
|
Recording Format |
In conformity with ISO 7811-2 /-4 /-5 /-6 |
||
|
Recording Capacity |
Track 1 (IATA) |
Max. of 79 characters (6 bits + 1 parity) |
|
|
Track 2 (ABA) |
Max. of 40 characters (4 bits + 1 parity) |
||
|
Track 3 (MINTS) |
Max. of 107 characters (4 bits + 1 parity) |
||
|
Recording Method |
Dual-frequency phase-coherent method |
||
|
Height of Warped Card |
≤ 2mm |
||
|
Magnetic Coercivity |
24k~320k A/m (300~4000 Oe)+/-10% |
||
|
Card Supported |
86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm) |
||
|
Communication Method |
RS232 (optional) |
||
|
Anti-theft Function |
By protruding bezel and jitter card-in pattern. |
||
|
Operating Conditions |
Power Supply |
DC24V±5%, 3.0A |
|
|
Quiescent Current |
200mA |
||
|
Default Baud Rate |
9600BPS/sec. |
||
|
Card Stacker Capacity |
150 pcs (0.76mm standard card) |
||
|
120 pcs (0.76mm embossing card) |
|||
|
300 pcs (0.4mm thickness) |
|||
|
Capture Box Capacity |
25 pcs (0.76mm standard card) |
||
|
Service Life |
Issuing Life |
1,000,000 passes min. |
|
|
Magnetic Head |
500,000 passes min. |
||
|
IC Contact |
500,000 passes min. |
||
|
Operation Temperature / Humidity |
0°C to 50°C, 0 to 90% RH without condensation |
||
|
Storage Temperature / Humidity |
-20°C to 70°C, 0 to 90% RH without condensation |
||
|
Net Weight |
Approx. 2.8KG (excluding accessories and package) |
||
|
Dimension |
326L x 103W x 220H mm (without shutter) |
||
|
347L x 100W x 200H mm (with shutter) |
|||
