Please follow the wiring diagram for wiring
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JOTTA
-
Model Number:
-
JTQ3-125
-
Rated Current:
-
125A
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Pole:
-
2P
-
Rated working Current:
-
125A
-
Rated working Voltage:
-
AC220V
-
Frequency:
-
50/60Hz
-
Application:
-
PV Solar System
-
Insulation Voltage:
-
600V
-
Operation type:
-
Auto-manual
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOTTA
-
Model Number:
-
JTQ3-125
-
Rated Current:
-
125A
-
Product name:
-
Dual Power Automatic Transfer Switch
-
Pole:
-
2P
-
Rated working Current:
-
125A
-
Rated working Voltage:
-
AC220V
-
Frequency:
-
50/60Hz
-
Application:
-
PV Solar System
-
Insulation Voltage:
-
600V
-
Operation type:
-
Auto-manual

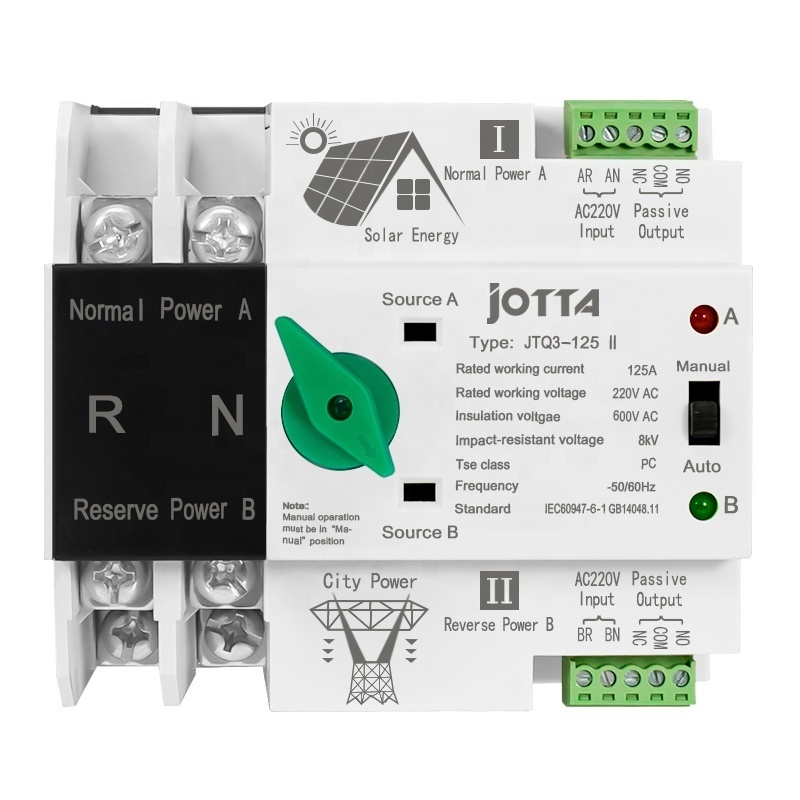

JOTTA PC type ATS For PV solar system.
Please connect a PV inverter as reserve power.
Only when both City power and Solar energy power are on,the ATS will transfer to Solar energy.
Transfer speed :0.08s
|
Model
|
Rated Working Current
|
Rated Working Voltage
|
Frequency
|
Application
|
|
JTQ3-125
|
125A
|
220VAC
|
50/60Hz
|
PV Solar System
|
This ATS is for PV Solar System.
Din Rail Mounted
