Quick Details
-
Applicable Industries:
-
Machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weichai
-
Dimension(L*W*H):
-
1648*774*1183 mm
-
Weight:
-
1100KGS
-
Rated power/speed:
-
147kw/1800rpm
-
Application:
-
Marine main engine,auxiliary engine,gemerator
-
Type:
-
In line ,injection, two-circulation, water cooled
-
engine brand:
-
weichai
-
certificate:
-
CCS/ZY/KR/RS
-
warranty:
-
1 year/1500hrs
-
Certification:
-
CCS/BV/ZY/KR
Quick Details
-
Displacement:
-
9.726L
-
Emission Standard:
-
IMO TIER 2
-
Power:
-
120HP, 160HP, 140HP, 315 KW, 110 kw, 200 kW, 185 kw
-
Applicable Industries:
-
Machine
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weichai
-
Dimension(L*W*H):
-
1648*774*1183 mm
-
Weight:
-
1100KGS
-
Rated power/speed:
-
147kw/1800rpm
-
Application:
-
Marine main engine,auxiliary engine,gemerator
-
Type:
-
In line ,injection, two-circulation, water cooled
-
engine brand:
-
weichai
-
certificate:
-
CCS/ZY/KR/RS
-
warranty:
-
1 year/1500hrs
-
Certification:
-
CCS/BV/ZY/KR

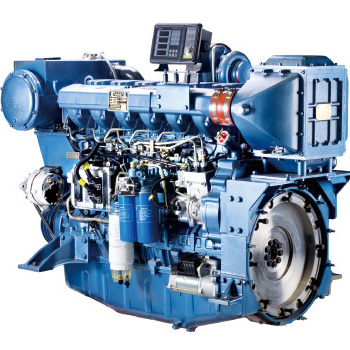

WEICHAI Weichai 6 cylinders marine diesel engine
Weichai Steyr series diesel engine annual output of more than 250,000,
WD618 series marine engines are one of the large displacement speed marine diesel engines on the market, the most stable and mature
|
Model of Marine engine |
WD618C-1 |
| Rated Output | 275kW (374hp) | |
| Rated Speed (r/min) | 2150 | |
| Bore/Stroke(mm) | 126/155 | |
| Displacement(L) | 11.596 | |
| Num.of cylinders | 6 | |
| Certificate | CCS/ZY | |
| Model of Geaxbox | WHG300 | |
| Gearbox brand | Advance or FADA | |
| Ratio | 4.5:1, 5.0:1, 5.5:1, 6.0:1 |
| Type |
In-line, four stroke
injection |
Total displacement(L) | 11.596 |
| number of cylinders | 6 | Compressure ratio | 17:1 |
| bore(mm) | 126 | Ingnition mode | 1-5-3-6-2-4 |
| stroke(mm) | 155 | The smoke(FSN) | ≤1.0 |
| intake mode |
turbocharged
and intercooled |
Noise(dB(A)) |
≤108
|
| rated power(Kw/ PS ) | 180/ 245 -294/ 400 | Overhaul period | 10000 |
| rated speed(r/min) | 1500-2150 | net weight(kg) | 1100 |
| Fuel consumption(g/kW.h) | ≤198 | Usage |
Marine engines and
fixed power |
| Oil consumption(g/kW.h) | ≤0.5 |
Replaced with new camshafts, cylinder head, optimizing the combustion process; replaced with new injectors, increase injection pressure - reduce fuel consumption, reduce smoke, more energy efficient, environmentally friendly
Replacing diesel engine pistons, piston rings, nozzles, using the new liner - to reduce diesel oil consumption.
Improved front exhaust pipe from which the water cooler, outer loop water cooling
The improved water from the body, the circulating water cooling
Replace the thermostat so that the temperature is maintained at an optimum diesel state, improve diesel engine life.
Before After
The machine processing workshop Assembly workshop Test workshop
