Quick Details
-
Brand Name:
-
XinDun
-
Model Number:
-
KY1 100A
-
Work Time (h):
-
1-24h
-
Max PV Power:
-
-
-
Max PV Voltage:
-
-
-
Certificate:
-
CE RoHS, CE ROHS
-
Warranty:
-
12 MONTHS
-
Product name:
-

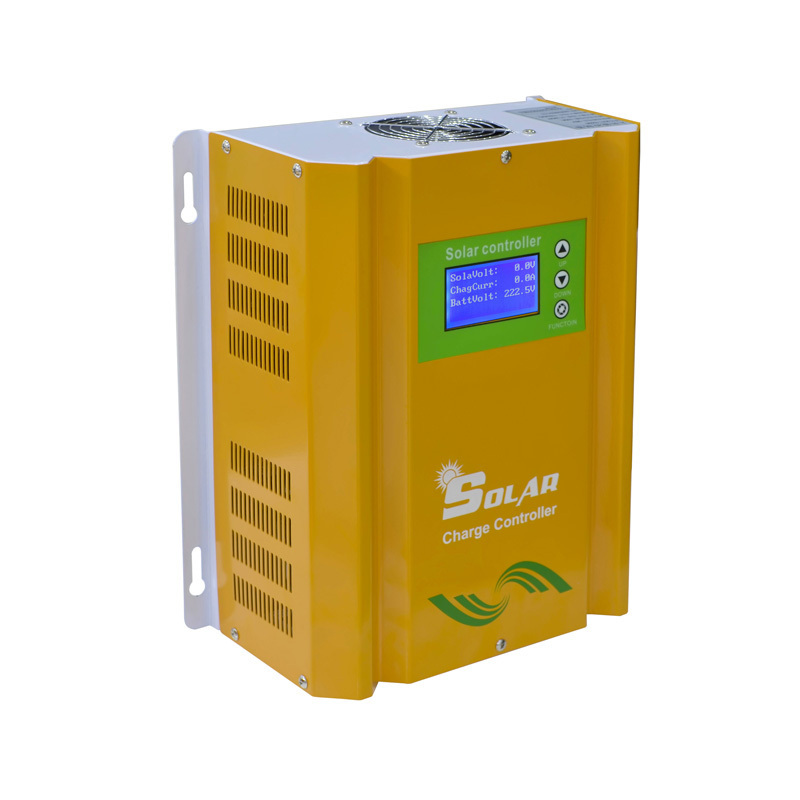

pwm solar charge controller
-
Product size:
-
460*357*159mm
-
Output waveform:
-
Pure sine wave
-
Appearance:
-
LCD
-
Current:
-
100A
-
DC Charging Voltage:
-
230V
-
Solar Input Voltage:
-
320V
-
More Model:
-
50A/150A/200A
-
Charge mode:
-
PWM Mode
Quick Details
-
Type:
-
PWM
-
Application:
-
Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XinDun
-
Model Number:
-
KY1 100A
-
Work Time (h):
-
1-24h
-
Max PV Power:
-
-
-
Max PV Voltage:
-
-
-
Certificate:
-
CE RoHS, CE ROHS
-
Warranty:
-
12 MONTHS
-
Product name:
-
pwm solar charge controller
-
Product size:
-
460*357*159mm
-
Output waveform:
-
Pure sine wave
-
Appearance:
-
LCD
-
Current:
-
100A
-
DC Charging Voltage:
-
230V
-
Solar Input Voltage:
-
320V
-
More Model:
-
50A/150A/200A
-
Charge mode:
-
PWM Mode
|
Exclusive Feature
|
1. Intelligent control is realized by using microprocessor and dedicated control calculation
2. Four load working modes : pure lighting control, lighting control & timing control, hand operation and debug mode
3. Scientific management of battery
4. Comparing with charging loops using diodes, the one that adopts double MOS series circuit control makes the voltage loss dropped by 50% . With the PWM fuzzy control in charging, the charge efficiency is improved a lot.
5. LED screen shows the working state of solar battery, storage battery and load. LED shows the adjusted parameter. In this way, users can learn the operation state in ream time. Besides, there are various choices for parameters; users can select the proper working mode based on the different conditions.
6. Various protections include overcharge, over discharge and overload as well as unique electron short circuit protection and connection reverse protection.
7. Technical grade chips and precision components are adopted for all the controllers.
8. Digital LCD display and one button setup make the device easy to handle.
|
Product Details
|
|
Technical parameter
|
Contact us to get 150A 200A PMW solar controller
| KY1 Parameter | ||
| Rated charging current | 50A | 100A |
| Rated system voltage | 384V | 192V/216V/240V/384V |
| PV input voltage range | 192V System:240V-352V;216V System:270V-396V;240V System:300V-440V;384V System:480V-704V | |
| Max PV Input Voltage(At 25℃) | 192V System:400V;216V System:450V;240V System:500V;384V System:750V | |
| Number of PV array input routes | 1 | |
| PV Array Maximum Power | 22.4KW | 22.4KW/25.2KW/28KW/44.8KW |
| Battery type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) | |
| Floating voltage | 13.8V/Single battery | |
| Charge voltage | 14.2V/Single battery | |
| Charging protection voltage | 15V/Single battery | |
| Temperature compensation coefficient | -3mV / ℃ / 2V (25℃ is base line )(Optional) | |
| Charging mode | PWM pulse width control | |
| Charging method | Three stages :constant current; constant voltage; floating charge | |
| Efficiency | >95% | |
| Display | LCD | |
| Cooling method | Cooling fan in intelligent control | |
| Type of mechanical protection | IP20 | |
| Operating temperature | -20℃~+60℃ | |
| Storage temperature | -20℃~+70℃ | |
| Elevation | <5000m,(Less solar panel when exceed 2000m) | |
| Humidity | 5~95%(No condense) | |
| Protect the circuit | RS232/RS485(Optional) | |
| Machine size (L*W*Hmm) | 460*360*160 | |
| Package size (L*W*Hmm) | 530*405*225 | |
| N.W (Kg) | 9 | 10 |
| G.W (Kg) | 11 | 12 |
| Note: All specifications are subject to change without prior notice | ||
|
How to use it?
|
|
Practical Application
|
|
Packaging & Shipping
|
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
|
