Quick Details
-
Dimension(L*W*H):
-
as per machine
-
Weight:
-
1000 KG
-
Product name:
-
Planetary Raw Ball Mill Gearbox In Cement Plant Price List
-
Rotary speed(r/min):
-
21.9
-
Balls WEIGHT(t):
-
10.9
-
Discharge size(mm):
-
0.074-0.29
-
Voltage:
-
380v
-
Color:
-
as your request
Quick Details
-
Capacity(t/h):
-
0.5-50TPH
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongke
-
Dimension(L*W*H):
-
as per machine
-
Weight:
-
1000 KG
-
Product name:
-
Planetary Raw Ball Mill Gearbox In Cement Plant Price List
-
Rotary speed(r/min):
-
21.9
-
Balls WEIGHT(t):
-
10.9
-
Discharge size(mm):
-
0.074-0.29
-
Voltage:
-
380v
-
Color:
-
as your request

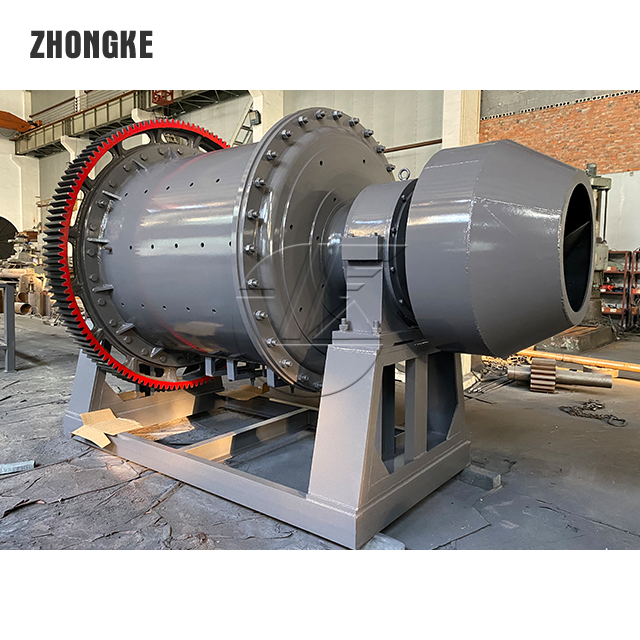

Product Showcase
1.Ball Mill Features
1).is an efficient tool for grinding many materials into fine powder.
2).The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3).Ball mill is widely used in building material, and chemical industry.
4).There are two ways of grinding: the dry way and the wet way.
5).Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6).To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7).As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the
product into fine powder over a period of several hours.
8).The longer the ball mill runs, the finer the powder will be.
9).Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10).Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
11).Complet ely enclosed welded design in high-grade steel.
- Direct drive via bearing journal with top-mounted gearbox.
Motor connected to gearbox via a V-belt drive.
- Product discharge via slots located around the periphery of the drum.
2.Ball Mill Working principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball mill grinds material by rotating a cylinder with a steel grinding ball, causing the ball to fall back into the cylinder and onto the material to be grinded. The rotation speed is usually from 4 to 20 revolutions per minute, depending on the diameter of the mill. The larger the diameter, the slower the rotation. If the circular speed of the mill is too high, it will start to act like a centrifuge, and the ball will not fall, but stay around the mill. The point at which a mill becomes a centrifuge is called the "critical speed," and ball mills typically operate at 65 to 75 percent of that critical speed.
Schematic diagram
Technical Parameters
|
Model
|
Shell rotation speed(r/min)
|
Ball load(t)
|
Feeding size(mm)
|
Discharging size(mm)
|
Capacity
|
Motor
power
(kw)
|
Weight
(t)
|
|
|
|
|
|
|
(t/h)
|
|
|
|
Φ900*1800
|
36-38
|
1.5
|
<=20
|
0.075-0.89
|
0.65-2
|
18.5
|
4.6
|
|
Φ900*3000
|
36
|
2.7
|
<=20
|
0.075-0.89
|
1.1-3.5
|
22
|
5.6
|
|
Φ1200*2400
|
36
|
3
|
<=25
|
0.075-0.6
|
1.5-4.8
|
30
|
12
|
|
Φ1200*3000
|
36
|
3.5
|
<=25
|
0.074-0.4
|
1.6-5
|
37
|
12.8
|
|
Φ1200*4500
|
32.4
|
5
|
<=25
|
0.074-0.4
|
1.6-5.8
|
55
|
13.8
|
|
Φ1500*3000
|
29.7
|
7.5
|
<=25
|
0.074-0.4
|
2-5
|
75
|
15.6
|
|
Φ1500*4500
|
27
|
11
|
<=25
|
0.074-0.4
|
3-6
|
110
|
21
|
|
Φ1500*5700
|
28
|
12
|
<=25
|
0.074-0.4
|
3.5-6
|
130
|
24.7
|
|
Φ1830*3000
|
25.4
|
11
|
<=25
|
0.074-0.4
|
4-10
|
130
|
28
|
|
Φ1830*4500
|
25.4
|
15
|
<=25
|
0.074-0.4
|
4.5-12
|
155
|
32
|
|
Φ1830*6400
|
24.1
|
21
|
<=25
|
0.074-0.4
|
6.5-15
|
210
|
34
|
|
Φ1830*7000
|
24.1
|
23
|
<=25
|
0.074-0.4
|
7.5-17
|
245
|
36
|
|
Φ2100*3000
|
23.7
|
15
|
<=25
|
0.074-0.4
|
6.5-36
|
155
|
34
|
|
Φ2100*4500
|
23.7
|
24
|
<=25
|
0.074-0.4
|
8-43
|
245
|
42
|
|
Φ2100*7000
|
23.7
|
26
|
<=25
|
0.074-0.4
|
8-48
|
280
|
50
|
|
Φ2200*4500
|
21.5
|
27
|
<=25
|
0.074-0.4
|
9-45
|
280
|
48.5
|
|
Φ2200*6500
|
21.7
|
35
|
<=25
|
0.074-0.4
|
14-26
|
380
|
52.8
|
|
Φ2200*7000
|
21.7
|
35
|
<=25
|
0.074-0.4
|
15-28
|
380
|
54
|
|
Φ2200*7500
|
21.7
|
35
|
<=25
|
0.074-0.4
|
15-30
|
380
|
56
|
|
Φ2400*3000
|
21
|
23
|
<=25
|
0.074-0.4
|
7-50
|
245
|
54
|
|
Φ2400*4500
|
21
|
30
|
<=25
|
0.074-0.4
|
8.5-60
|
320
|
65
|
|
Φ2700*4000
|
20.7
|
40
|
<=25
|
0.074-0.4
|
12-80
|
400
|
94
|
|
Φ2700*4500
|
20.7
|
48
|
<=25
|
0.074-0.4
|
12-90
|
430
|
102
|
|
Φ3200*4500
|
18
|
65
|
<=25
|
0.074-0.4
|
-----
|
800
|
137
|
Applicable Materials
are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
1.Calcium ore 2.platinum 3.Nickel ore 4.Calcite 5.
dolomite
1.Chromium ore 2.
Cobalt ore 3.
granite 4.
Gold mine 5.
Chemical Industry
1.Building material 2.
talc 3.
Magnesium ore 4.
Bauxite 5.
Gangue
1.
Aluminum ore 2.
Bentonite 3.
Manganese ore 4.
marble 5.
Phosphate rock
Product Details
Our Project
More Products
Packaging & Shipping
Packaging Details:
We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
