Products
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift
crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift

crawl scissor lift table Self level hydraulic legs mini rough terrain scissor lift

FOB Reference Price: Get Latest Price
≥1 Pieces
US $7900
≥10 Pieces
US $5300
≥20 Pieces
US $3800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
4kw
Table Size:
1.23*0.655m
Overall Dimensions:
2.7*1.5m
Weight:
2800 kg
Product name:
Rough Terrain Crawler Self Propelled Scissor Lift
Max Working height:
6m to 16m
Lifting Capacity:
200-450kg
Workers on Platform:
1-2 person
Extendable Platform(M):
900mm
Extended Platform Capacity:
100kg
Drive Speed:
1.7km/H-2.4km/H
Color:
Orange/ customize
Machine Weight:
790-3480kg
Certification:
CE, ISO, ROHS

Quick Details

Warranty:
1 Year
Place of Origin:
Shandong, China
Brand Name:
Blift
Power:
4kw
Table Size:
1.23*0.655m
Overall Dimensions:
2.7*1.5m
Weight:
2800 kg
Product name:
Rough Terrain Crawler Self Propelled Scissor Lift
Max Working height:
6m to 16m
Lifting Capacity:
200-450kg
Workers on Platform:
1-2 person
Extendable Platform(M):
900mm
Extended Platform Capacity:
100kg
Drive Speed:
1.7km/H-2.4km/H
Color:
Orange/ customize
Machine Weight:
790-3480kg
Certification:
CE, ISO, ROHS
Product Description

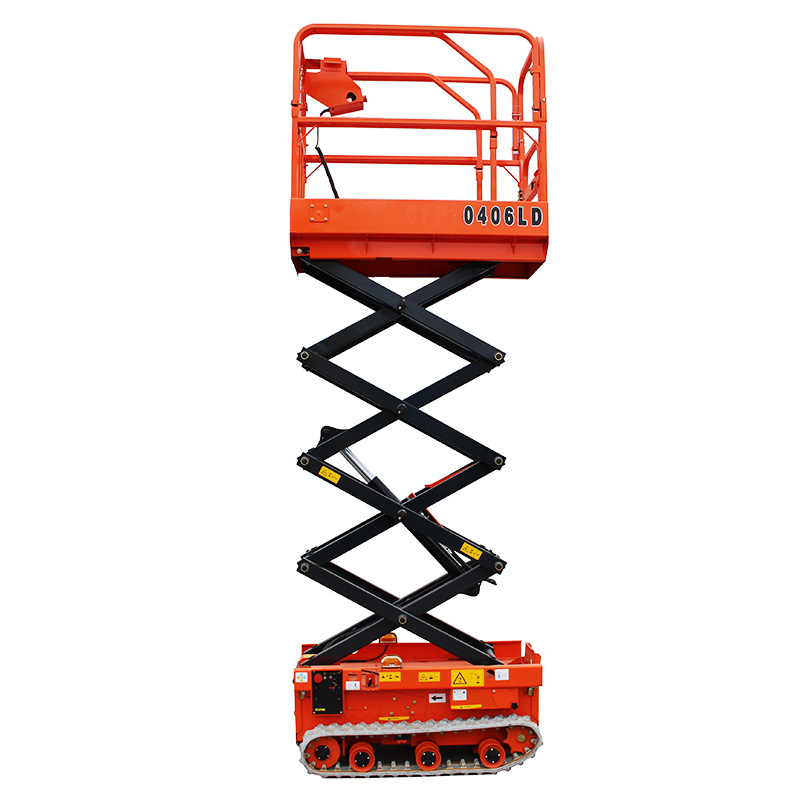

6.5m-16m 200kg-450kg Rough Terrain Crawler Self Propelled Hydraulic Scissor Lift

- OEM  & ODM Service -

Blift Brand Hydraulic Rough Terrain crawler scissor lift is one kind of self propelled scissor lift used in all terrians. With the unique design of wheels and crwalers, It is more efficienty and widly used in all kinds of aerial works indoor and outdoor.


What's more, multiple safety precautions such as overload protection, emergency lowering sytem, explosion proof design etc, make it safety and steady.

Automatic levelling hydraulic outriggers is optional. With this option, it is greatly improve the working efficienty.

Product Parameters

Model Type CSS-6.5 CSS-8H CSS-10H CSS-12H CSS-14H CSS-16H
Standard or Aotomatic leveling Hydraulic Outriggers
Max Working Height 4.5m 8m 10m 12m 14m 16m
Max Lifting Height 6.5m 6m 8m 9.75m 11.75m 13.75m
Load Capacity 200Kg 450Kg 450Kg 320Kg 320Kg 230Kg
Extendable Platform 100Kg 113Kg 113Kg 113Kg 113Kg 113Kg
Workers on Platform 1 2 2 2 2 2
Overall Length 1.27m 2.767m 2.767m 2.767m 2.767m 2.97m
Overall Width 0.79m 1.5m 1.5m 1.5m 1.5m 1.5m
Overall Height
(Guardrails unfolded)
1.82m 2.28m 2.4m 2.53m 2.67m 2.84m
Platform Size(m) 1.23*0.655 2.27*1.12*0.7 2.27*1.12*0.7 2.27*1.12*0.7 2.27*1.12*0.7 2.64*1.11*0.7
Extendable Platform(m) 0.55m 0.9 0.9 0.9 0.9 0.9
Min Turning Radius(m) 0 0 0 0 0 0
Min Ground Clearance 0.05m 0.15m 0.15m 0.15m 0.15m 0.2m
Driving Speed 1.7Km/h 2.0Km/h 2.0Km/h 2.0Km/h 2.0Km/h 2.0Km/h
Machine Weight 790Kg 2800Kg 2950kg 3240kg 3480kg 4880kg

Detailed photos
