Quick Details
-
Application:
-
Other
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lianxiang
-
Model Number:
-
LX-tggs
-
Brand:
-
Lianxiang
-
Material:
-
Plastic PP, PE
-
Keyword:
-
Geocell
-
Thickness(smooth):
-
1.1 or 1.2 mm
-
Thickness(textured):
-
1.5 or 1.52 or 1.6
-
Color:
-
Black
-
Height:
-
50-75-100-150-200mm
-
Feature:
-
lightweight
-
Free sample:
-
Available
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Other
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lianxiang
-
Model Number:
-
LX-tggs
-
Brand:
-
Lianxiang
-
Material:
-
Plastic PP, PE
-
Keyword:
-
Geocell
-
Thickness(smooth):
-
1.1 or 1.2 mm
-
Thickness(textured):
-
1.5 or 1.52 or 1.6
-
Color:
-
Black
-
Height:
-
50-75-100-150-200mm
-
Feature:
-
lightweight
-
Free sample:
-
Available
Long Life Geo Cell Gravel Grid Mat Honeycomb Grid Sheet 1.2mm Hdpe Geocell
Product Description
High density polyethylene geocell product Introduction;
Geocell is a kind of 3D network structure through ultrasonic welding with long plastic material, and it is three-dimensional network after being expanded. Sometimes it needs to be perforated according to customer’s need. The height, welding distance, plate thickness of geocell have significant effects to the project performance of geocell; In projects, different kinds of geocell can form bedding with different cohesion, reinforcement strength and thickness. These bedding can be placed in required position according to the requirements of the project so as to intensify the roadbed of the road and railway, slope, protection, build retaining wall, etc. Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.
High density polyethylene geocell
is a lightweight and flexible three-dimensional, expandable panels made from high Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Specification
Product process
Application
Load Suppor
Geocell is a confinement system that performs better than conventional crushed stone sections, and it provides an
expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. It can also be used to strengthen paved areas.
expedient construction technique for access roads over soft ground without being adversely affected by wet weather conditions. It can also be used to strengthen paved areas.
Retaining Wall
GeoCell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation. GeoCell is the perfect green wall solution.
GeoCell can be used for both cut and fill applications on retaining walls. The flexible HDPE panels are custom made to the front to back dimensions required by the project engineer. GeoCell can be easily installed around curves, pipes or other structures. The panels are constructed with the front facing strip colored green or tan to blend in with the surroundings. GeoCell panels can be stacked to create a 90 degree wall, or they can be stair stepped at every layer to create exposed cell for vegetation. GeoCell is the perfect green wall solution.
High density polyethylene geocell Applications:

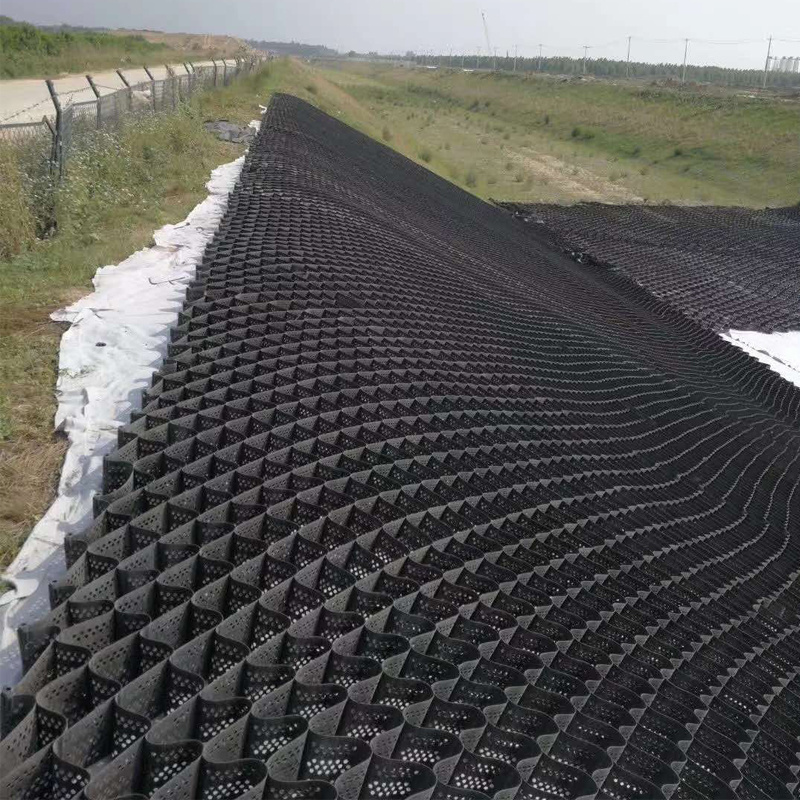

1. It can protect earth from being eroded by winds and rains before grass growing up;2. It can keep grass seeds distributed in slope firmly, and avoid to be washed;
3. Black mat can absorb thermal energy abundantly, increase ground wet, promote seed sprout, and prolong growth term of plants;
4. The surface is tough, so wind and water stream can form plenty of eddy in the surface of the
mat, which can produce energy dissipation function;
5. Plants can form composite protection layer and endure wash with high water and fast speed;6. It can replace long-lasting slope protection materials such as concrete, pitch, block, etc., and can be used in slope protection such as road, railway, river, dam, mountain slope, etc.;7. It can reduce construction cost greatly;
8. It can prevent move of sand dunes after laying sand surface, which can improve roughness of the road surface, increase sediment of the road surface, change physical performance, and improve partial ecological environment;
9. It is applied in slope protection of road, railway, mine and municipal construction, and it can prevent water and soil loss;
1. It can protect earth from being eroded by winds and rains before grass growing up;2. It can keep grass seeds distributed in slope firmly, and avoid to be washed;
3. Black mat can absorb thermal energy abundantly, increase ground wet, promote seed sprout, and prolong growth term of plants;
4. The surface is tough, so wind and water stream can form plenty of eddy in the surface of the
mat, which can produce energy dissipation function;
5. Plants can form composite protection layer and endure wash with high water and fast speed;6. It can replace long-lasting slope protection materials such as concrete, pitch, block, etc., and can be used in slope protection such as road, railway, river, dam, mountain slope, etc.;7. It can reduce construction cost greatly;
8. It can prevent move of sand dunes after laying sand surface, which can improve roughness of the road surface, increase sediment of the road surface, change physical performance, and improve partial ecological environment;
9. It is applied in slope protection of road, railway, mine and municipal construction, and it can prevent water and soil loss;
10.first choice of gardening, greening.
Application Method:
When infilled by compacted soil, a Cellular Confinement System (CCS) is to create a new entity with enhanced mechanical and geotechnical properties. When pressure applied to the soil contained in a CCS, it results in a lateral stress on the perimeter of the cell wall. The three-dimensional confinement area reduces the lateral movement of soil particles. the vertical load applied to contained infill lead to high stress and resistance to latera interface between cell and soil.
Constrained adjacent cell provides additional resistance filled by passive resistive load cell, while the horizontal expansion by restricting the ring of high strength. Compaction is maintained to result in long-term reinforcement.
On the jobsite, all sections of geocell are fastened together and placed directly on the surface of the subsoil or placed on the geotextile covered on the roadbed surface. the sections are stretched and expanded with stretcher. geocell extended to cover several tens of meters may consist of hundreds of individual cells, depending on the size of the section and the whole area. They are then filled with a variety of filler materials such as soil, sand, aggregate or recycled materials, and then compacted using vibration compaction.
Overall CCS can create a hard mattress to distribute the load over a wider area, reduce settlement of soft soil, improve shear resistance and load carrying capacity and reduce distortion.
Overall CCS can create a hard mattress to distribute the load over a wider area, reduce settlement of soft soil, improve shear resistance and load carrying capacity and reduce distortion.
Packing & Delivery
High density polyethylene geocell
Packing details:
Standard export packaging: straps or pallet packaging
Delivery time:
|
Quantity(Square Meters)
|
1 - 3000
|
3001 - 30000
|
30001 - 50000
|
>50000
|
|
Est. Time(days)
|
10
|
15
|
20
|
To be negotiated
|
