Quick Details
-
Row Distance(mm):
-
300 - 500 mm
-
Place of Origin:
-
Dezhou, China
-
Brand Name:
-
YCHS
-
Dimension(L*W*H):
-
160x80x52cm
-
Weight:
-
190 KG
-
Warranty:
-
15 months
-
Marketing Type:
-
Hot Product
-
Product name:
-
Potato harvester potato digger
-
Cutting width (mm):
-
600mm-1800mm
-
Digging depth:
-
100-250mm
-
Driven type:
-
Tractor PTO driven
-
Matched tractor power:
-
20-120hp
-
Linkage type:
-
tractor 3 point hitch
-
Harvesting row:
-
1 and 2
-
Machine weight:
-
190-480KGS
-
Colour:
-
Red, Blue
-
Transmission:
-
Chain
Quick Details
-
Number of Rows:
-
1 to 2
-
Working Width(mm):
-
600 mm
-
Tractor Power(HP):
-
20 - 50 HP
-
Row Distance(mm):
-
300 - 500 mm
-
Place of Origin:
-
Dezhou, China
-
Brand Name:
-
YCHS
-
Dimension(L*W*H):
-
160x80x52cm
-
Weight:
-
190 KG
-
Warranty:
-
15 months
-
Marketing Type:
-
Hot Product
-
Product name:
-
Potato harvester potato digger
-
Cutting width (mm):
-
600mm-1800mm
-
Digging depth:
-
100-250mm
-
Driven type:
-
Tractor PTO driven
-
Matched tractor power:
-
20-120hp
-
Linkage type:
-
tractor 3 point hitch
-
Harvesting row:
-
1 and 2
-
Machine weight:
-
190-480KGS
-
Colour:
-
Red, Blue
-
Transmission:
-
Chain

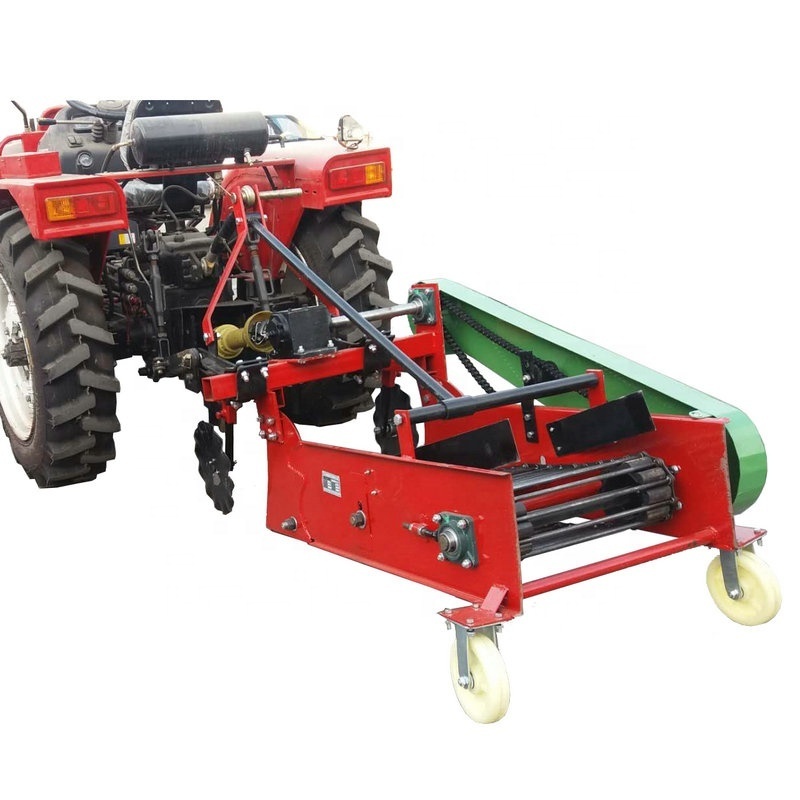

Agricultural machinery 1 row Potato Harvester machine small potato digger for sale
PRODUCT DESCRIPTION
This 1 row potato harvester machine small potato digger is mounted with the four wheel tractor of 20 -50 hp by rear PTO driven. This potato harvester digger is intended for potato excavation , tubers partial separation from the soil and tubers laying on field surface for their further picking up. The working principle of this potato digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate by shaker, the soil first drip down from the clearance of shaker, finally the crop fall on the land from the back.
Advantages:
This potato harvester is full mounted with 20 to 120hp tractor.
Dig the potatoes safely without cutting or damaging them.
Driven by PTO in rotating speed 540-720r/min.
Easy operation and convenient maintenance.
TECHNICAL SPECIFICATION
|
Unit |
4U-600 |
4U-900 |
4U-1300 |
4U-1500 |
4U-1700 |
4U-1800 |
|
|
Harvesting rows |
|
1 |
2 |
||||
|
Working width |
mm |
600 |
900 |
1300 |
1500 |
1700 |
1800 |
|
Working depth |
mm |
100-250 |
|||||
|
PTO Rotation speed |
r/min |
540-720 |
|||||
|
PTO shaft spline |
|
6 spline or 8 splines |
|||||
|
Total weight |
kg |
170 |
260 |
360 |
390 |
450 |
490 |
|
Matched power |
hp |
20-30 |
40 |
50 |
70 |
80-90 |
80-100 |
|
Linkage |
|
Three-point mounted |
|||||
PRODUCT SHOW
PACKAGE AND DELIVERY
FAQ
| Q1: Are you a factory or trading company? |
|---|
|
We are a factory with self-supported import and export right.
|
| Q2: How can I trust on your company? |
|
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.
|
| Q3: Where is your factory located? How can I visit there? |
|
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
|
| Q4: How can I place an order from your website? |
|
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
|
| Q 5: How can I make the payment? |
|
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
|
| Q 6: What's the Payment terms? |
|
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port.
|
| Q7: At which port do you usually ship the good? |
|
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
|
| Q 8. How about the Warranty ? |
| 15 months warranty from the time of the goods arrive at destination. |
