Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HT-TOOLS
-
Model Number:
-
J0116
-
Product Name:
-
keyless drill chuck
-
Certification:
-
GS
Quick Details
-
Number of Jaws:
-
3
-
Material:
-
Steel
-
Warranty:
-
3 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HT-TOOLS
-
Model Number:
-
J0116
-
Product Name:
-
keyless drill chuck
-
Certification:
-
GS

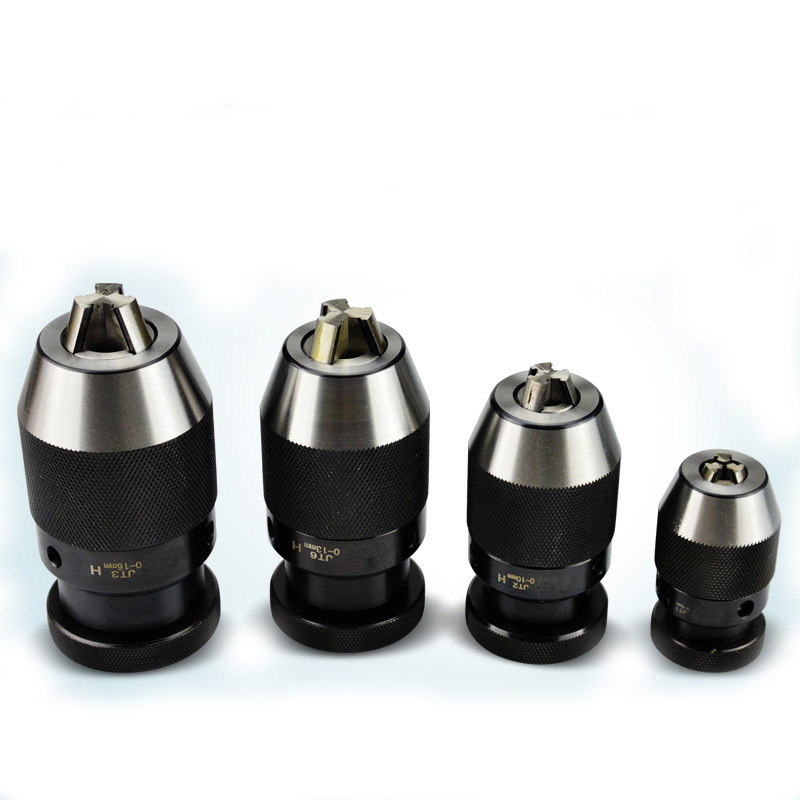

B16 1-13mm Keyless drill chuck
specification
1.light duty or heavy duty.
2.taper mounted or thread mounted.
3.Rang offer from 1mm-16mm
4.Max.10.000 RPM without further balance
5.Precision reach 0.02mm to 0.03mm
6.separate drill chuck or integrated drill chuck
| D | L | Runout mm | |||||
| Order No. | Capacity | Mount | mm | mm | P | D | M |
| J0106 | 0.5-6mm | B10 | 34 | 72 | 0.12 | 0.16 | |
| J0206 | 1/64″-1/4″ | JT1 | |||||
| J0108 | 0.5-8mm | B12 | 42 | 82 | |||
| J0208 | 1/64″-5/16″ | JT2 | 0.06 | ||||
| J0110 | 1-10mm | B12 | |||||
| J0210 | 1/32″-3/8″ | JT2 | 44 | 88 | |||
| J0210A | JT33 | ||||||
| J0113 | 1-13mm | B16 | 97 | ||||
| J0113A | B16 | 49 | 100 | ||||
| J0213 | 1/32″-1/2″ | JT33 | |||||
| J0213A | JT6 | ||||||
| J0116A | 3-16mm | B16 | 54 | 110 | 0.14 | 0.2 | 0.07 |
| J0116 | B18 | ||||||
| J0216 | 1/8″-5/8″ | JT6 | |||||
| J0216A | JT3 | ||||||
| J0120 | 5-20mm | B22 | 60 | 125 | 0.18 | 0.25 | |
| J0220 | 3/16″-3/4″ | JT3 |
Dezhou Haotian Imp&Exp Co.Ltd is locate d in the largest production base of machine tool accessories in China.we are specialized in researching , producing and developing many kinds of collets, drill chucks , CNC tool holders, retention knobs , ER nuts,ER spanners,machine vises, parallel blocks and so on . With high quality and full varieties. A ll of our products are deeply trusted by customers both at home and abroad.welcome to inquiry and visit us!
Q. Are you factory or Trade Company?
A. We are Industry and trade integration.
Q.
Could you supply samples?
A.
Yes, we can supply.
Q.
Where do you export?
A.
The whole world.
Q.
Could you produce non-standard products?
A.
Yes, we can. Please supply samples or drawing.
Q.
What’s the accuracy of ER Collet?
A.
We have three kinds. 0.005mm 0.01mm and 0.015mm.
Q.
What are the shipping ways?
A.
By international express, by air, by sea are all ok.
Q.
Do you have minimum order quantity?
A.
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
Q.
What’s your payment way?
A.
T/T, Pay pal, Western Union and so on.
Q.
What’s your delivery time?
A.
5-20 days after order confirmed
Q.
What’s your package?
A.
Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
