Quick Details
-
Function:
-
Plug and Play,no need connect cables
-
Camera lens:
-
3.6mm Lens
-
With P2P Function:
-
YES
-
Certificate:
-
CE, RoHS, FCC
-
Warranty:
-
1 year
-
Keyword:
-
8CH Kit NVR
-
Remote View:
-
iOS, Android, PC, etc.
Quick Details
-
Monitor:
-
built-in 12.5"inch HD LCD Screen
-
Camera:
-
Wireless camera
-
NVR:
-
built-in WIFI rooting module
-
Function:
-
Plug and Play,no need connect cables
-
Camera lens:
-
3.6mm Lens
-
With P2P Function:
-
YES
-
Certificate:
-
CE, RoHS, FCC
-
Warranty:
-
1 year
-
Keyword:
-
8CH Kit NVR
-
Remote View:
-
iOS, Android, PC, etc.

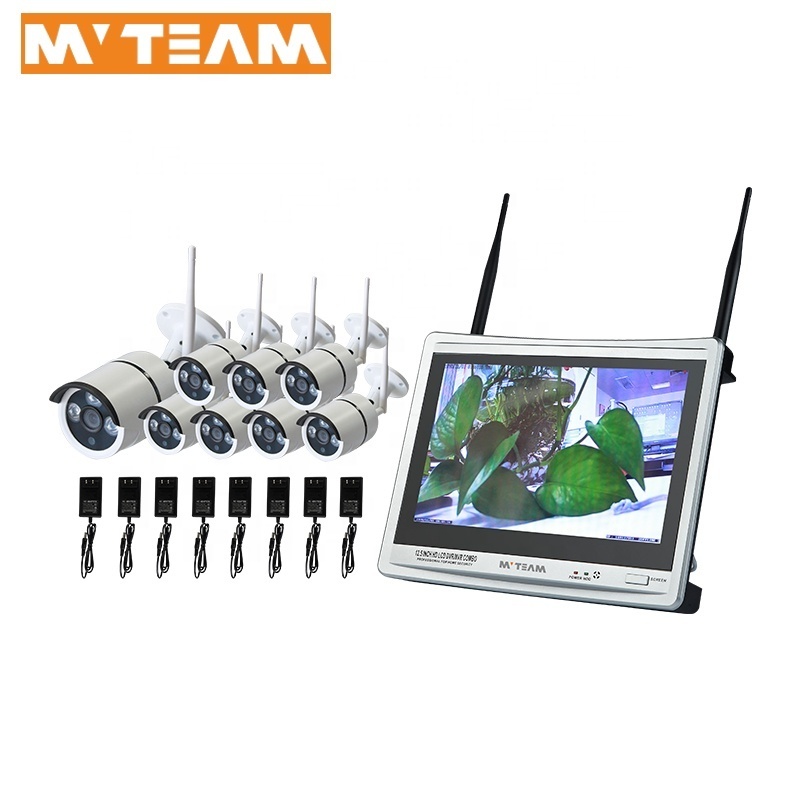

China Factory Easy Remote Use DIY CCTV Wireless Camera Security 8ch SystemHD NVR Kit with 12.5 inch LCD Screen
What items included in 8CH CCTV Wifi Wireless Security Camera System?
1pc 8ch wireless HD NVR with build-in 12.5" inch LCD Screen and WIFI module
8pcs Outdoor HD Wireless IP Camera
8pcs 12V(DC)/2A power adaptors
1pc detailed quick installation guide manual
1pc CD come with CMS softwares and instructions
Details about 8CH CCTV Wifi Wireless Security Camera System
1-8CH Wireless NVR
*Built-in 12.5" inch HD LCD Screen,which support 330 degree rotate,
*built-in high functional and stability wireless WI-FI rooting module,
support 802.11b/g/n protocol,150Mbps,
*HDMI output.
*Video input:8*720P/920P,Playback:8*960H,4*720P, 8*960P;
*3pcs USB interfaces, Support HDD up to 4TB,cloud technology, P2P,mouse x1
| Specfications: | ||
| Wireless NVR Specs | ||
| Operating System | Embedded Linux OS | |
| AV(audio/video)input | Network Video | 8CH |
| Network video input broadbank | 20Mbps | |
| AV (audio/video) output | HDMI input | 1ch,resolution:1024x768,1366x768, |
| 1440x900,1920x1080p | ||
| AV CODEC Specification | Video Resolution | 720P/960P |
| synch-playback | 8CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, |
| 2 WIFI interface | ||
| USB Interface | 3 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug),SMTP (email survice),PPPoE (dial-up), |
| DHCP (Automatically obtain an IP address), etc… | ||
| Others | Power | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Size | 257mm(W)×210mm(V)×45mm(H) | |
| Weight(excluding HDD) | ≤1Kg | |
Wireless NVR Menu:
Wireless NVR remote view on pc
Wireless NVR Remote view on smartphone
2-720P Outdoor Wireless IP Camera
*1.0M/720P wireless IPC
*with IR CUT
*3.6mm Lens
*3pcs 3rd generation LED Array,30m IR Distance
*Waterproof
| Wireless Camera Specs | |
| Image Sensor | 1/4” Progressive Scan Sensor |
| Signal System | PAL/NTSC |
| Resolution | 1280 x 720 16 : 9 High Defination |
| Minimum illumination | Color: 0.1 Lux; |
| B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s |
| Lens | 3.6mm |
| OSD | Date Time & Title |
| White Balance | Auto |
| Day&Night | Auto / Color / BW |
| 3D-DNR | Auto |
| Mirror/Flip | On / Off |
| Frame Specification | Three Streaming at the Same Time |
| H.264 128x720@30fps or below | |
| H.264 640x480@30fps or below | |
| S/N | > 39.1 Db |
| Interface | RJ45 / WIFI 802.11b/g/n |
| Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH |
| Storage Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH |
| Power Input | DC12V-1A |
| Power consumption | ≤6W |
| Size | 205(L)×70(W)×55 (H)mm |
| Weight | 500g |
| Level of Protection | IP66 |
Q1- Whether the wireless kit include hard disk?
A1: The kit come with all needed accessories except the hard disk,
We also can provide hard disk for customer,if you need,just let us know freely.
Q2- Whether the security system support network and mobile phone remote view?
A2: Yes, it can support network function.You can remote view the camera image from any where in the world by computer(IE browser & client software) and smartphone like: iOS, Anroid etc.
the mobile phone view APP is ESEENET+ ,more details can be found in our weblink
http://www.mvteamcctv.com/news/How-to-remote-view-wireless-NVR-kit-on-mobile-phone.html
Q3- What is the maximum distance between NVR and Camera?
A3: The wireless system is a closed system, the signal is from NVR to Camera,
about the distance,theoretically,100m in open space and 30m barrier transmit distance.But the practical distance will depends on your environment.
Q4- Whether the NVR with wireless and Wired Ports?
A4:The NVR is a wireless NVR and at NVR back panel there is a RJ45 interface, if your NVR won't need connect network, you can use it connect to 1pc camera via Cat^5 cable
Q5- Can use a repeater to expand the distance?
A5: Can not
Q6- Do you have any certificates for the security equipment?
A6: Yes, all MVTEAM DVR kits are with CE, RoHS, FCC certificates for Europe and USA markets.
In addition, MVT-K04DH have been mass sell to Walmart in Brazil in 2012.
Q7- How about users feedback of the kit?
Welcome to check Customers feedback at below link:
http://www.mvteamcctv.com/news/Customers-feedback-about-MVTEAM-Wireless-NVR-Kit.html
Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.
Shipping: Based on the your demands to choose the best shipping way.
